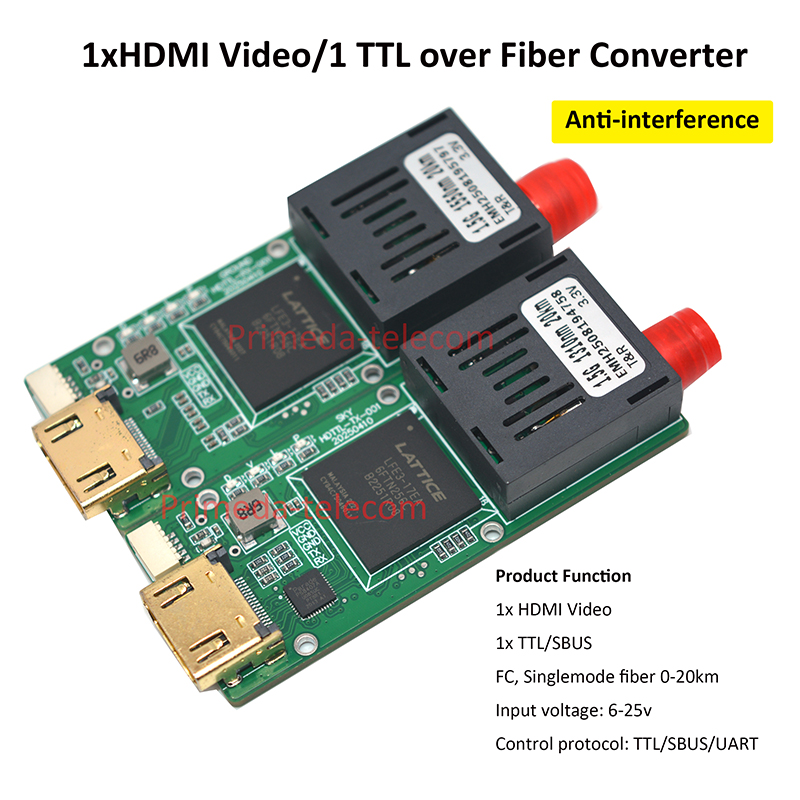

Function
1x HDMI Video
1x TTL/SBUS
FC, Singlemode fiber 0-20km(40Km/60Km/80Km is optional)
Input voltage: 6-25v
Control protocol: TTL/SBUS/UART

Product Description:

The optical module can convert analog video signals and control signals into optical signals for transmission, thereby preventing wireless signals from being interfered with in special areas. When using customized fiber optic storage boxes, it can fly up to 20Km without interference

This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 1 HDMI video and 1 TTL level signal over an optical fiber cable for long distance transmission. High speed and stable transmission, No interference.

Widely used in various scenarios that require long-distance, High-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields

It is safe and reliable, stable in performance, light in weight and cost-effective. It can be customized according to buyer's special requirements. Contact us if needed.

Application environment
1.Broadcasting and television
2.Surveillance system
3.Distance education,support remote interactive teaching and real-time video communication
4.Industrial control and More

Optical index:
Optical Interface : FC/UPC
Optical wavelength 1310nm /1550nm
Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm
Applicable fiber optic: singlemode, and compatible with multimode fiber.
Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~300meters

Video Index:
Video : 1 channel
Video Interface: HDMI male


TTL speed:  Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more


Product weight: about 25g/pcs

Size:

Package Include:

1 x TX/1310nm Sky unit

1 x RX/1550nm Ground unit
