FPV Optical Module

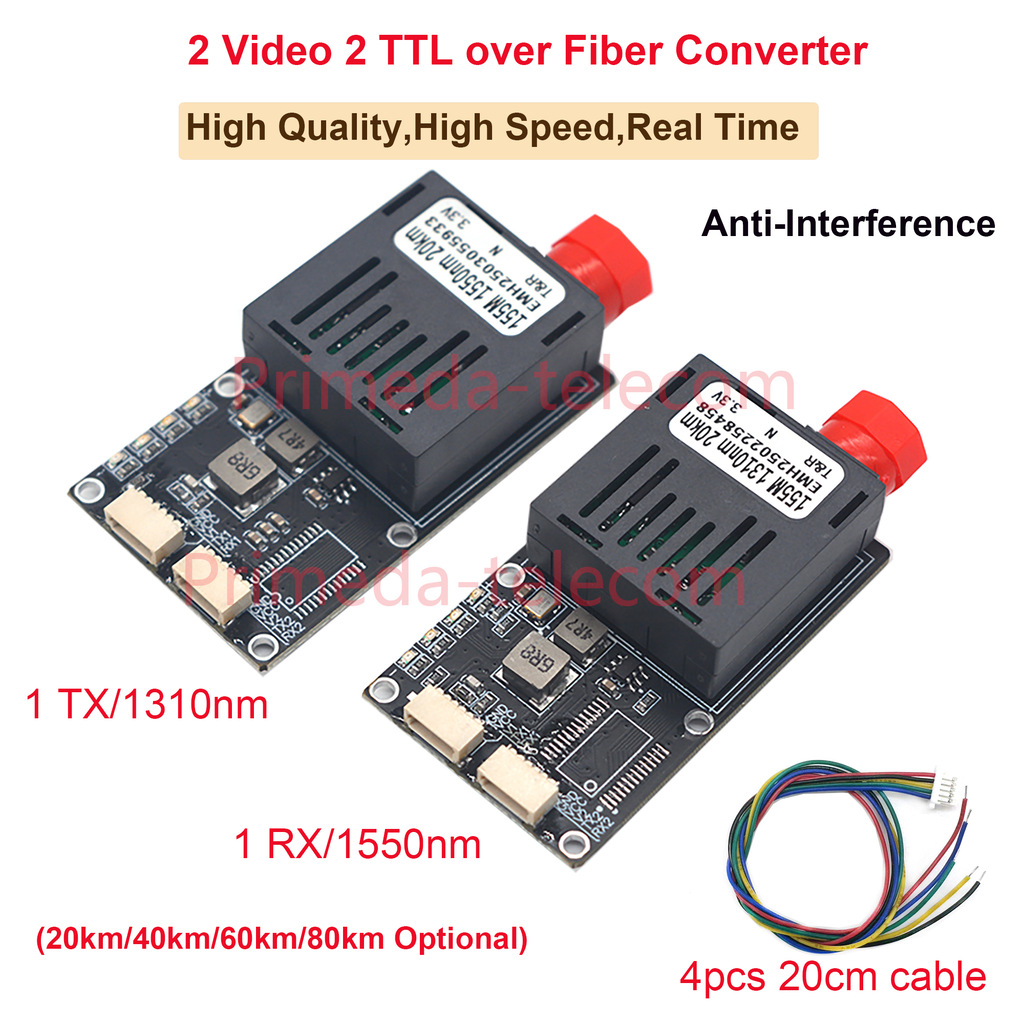

2 Cvbs Video/2 TTL to Fiber Optic Converter FC/UPC Singlemode 20Km for Fpv drone
PMD-2V2TTL-FC-20Km

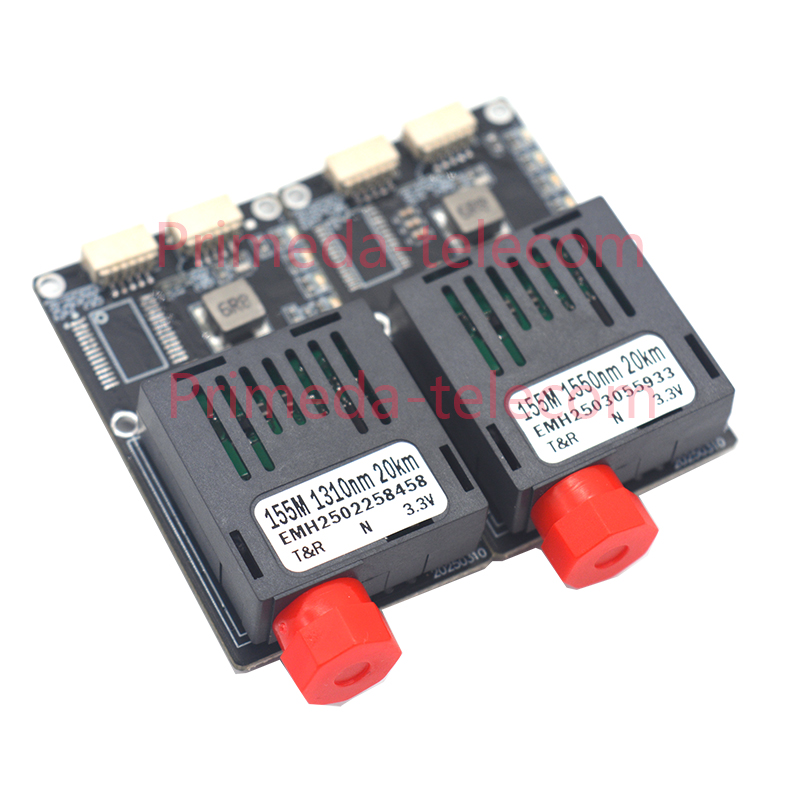

This Video fiber converter include a sky end (TX/1310nm) and a ground end (RX/1550nm), it is developed for FPV drone signal transmission system with 2 cvbs analog video and 2 TTL level signal over an optical fiber cable for long distance transmission. High speed and stable transmission, Anti-interference.
Support OEM,ODM, 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.
Support OEM,ODM, 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.
Description:
This Video fiber converter include a sky end (TX/1310nm) and a ground end (RX/1550nm), it is developed for FPV drone signal transmission system with 2 analog video and 2 TTL level signal over an optical fiber cable for long distance transmission. High speed and stable transmission, Anti-interference.
Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
It is safe and reliable, stable in performance, light in weight and cost-effective.
It can be customized according to buyer's special requirements, welcome to contact us .
Function
2x CVBS/Analog Video
2x TTL (Up to 460.8Kb/s)
FC/UPC fiber connector
Singlemode single fiber up to 20km
Input voltage: 6-25v

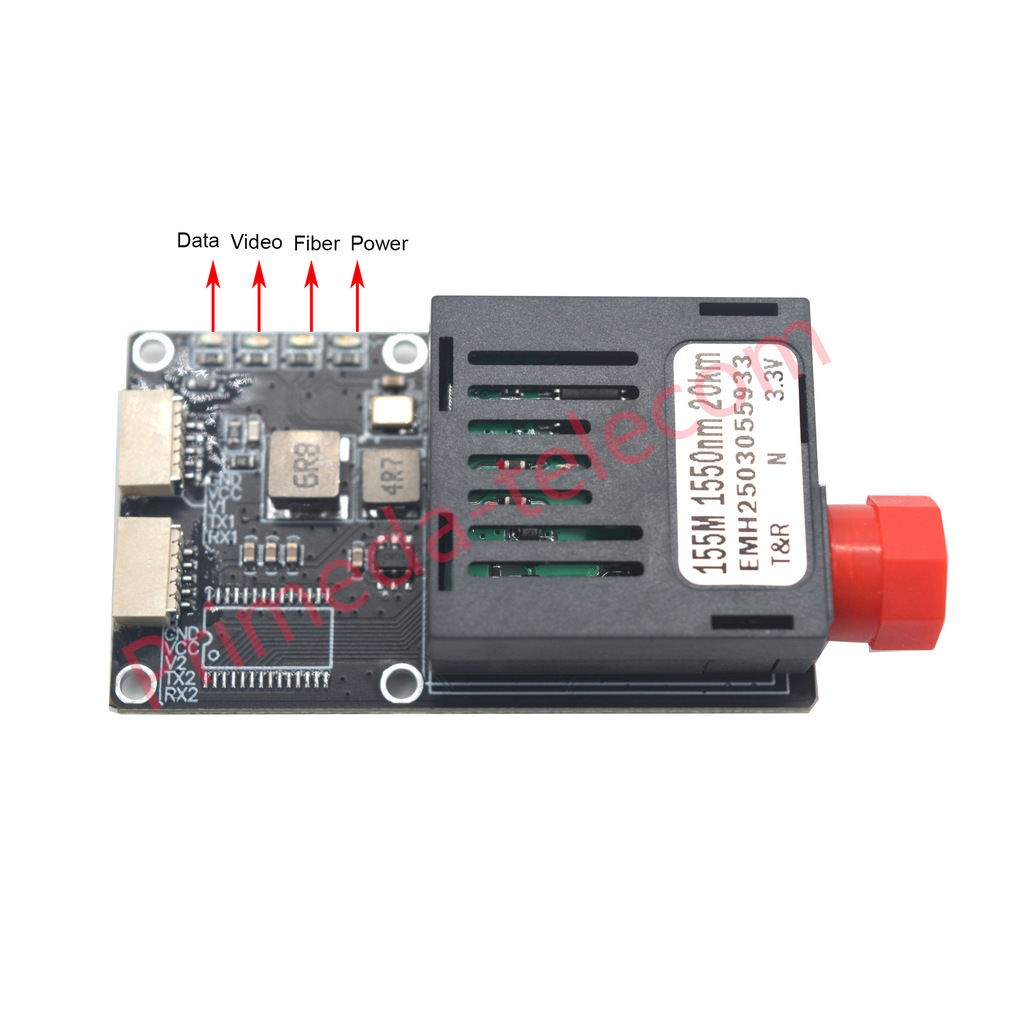

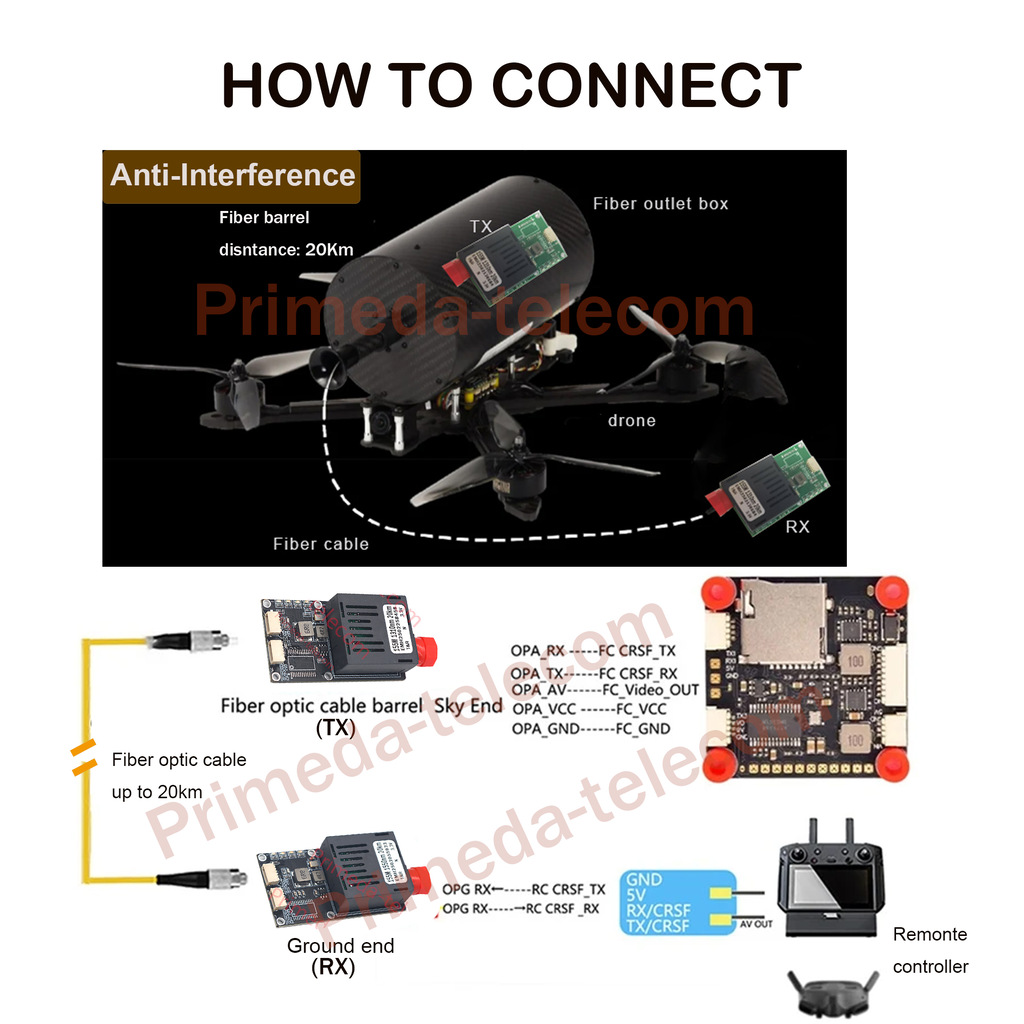

Connection Interface definition：
GND: Grounding wire
VCC: Power Supply
AV1: Video1
AV2: Video2
TX: TTL output
RX: TTL input
Product specification:
Video
Video interface: PIN
Video input/output impedance 75? (unbalanced)
Video bandwidth 8MHz
Compatible with PAL, NTSC, SECAM video formats，
Applicable cameras: analog cameras and CVBS cameras
TTL Serial port
Can be customized according to requirements, UART, TTL SUBS and other serial port signals
Baud rate: up to 460Kbps, backward compatible with 115.2Kbps and more .(Baud rate can be customized upon request）
Optical fiber
Optical fiber interface: FC/UPC
Optical fiber wavelength: 1310nm/1550nm
Transmission distance: 0-20km
Other specification:
Product Size：54mm*29mm*14mm
Weight: Sky end -12g, Ground end -12g
Power supply: 5.5v-26v: (2S-6S battery)
Power consumption: less than or equal to 5W
Communication interface: SH1.0mm-5Pin: CRSF interface/CVBS video port
Fiber optic interface: FC/UPC
Communication distance: up to 20km by singlemode fiber cable
