FPV Optical Module

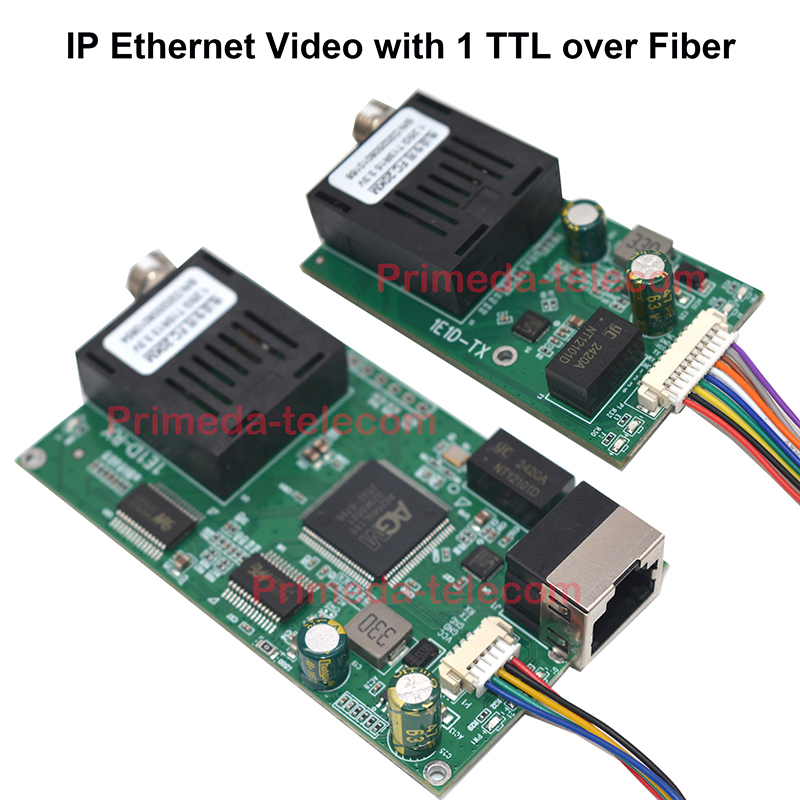

1 Channel IP Network Video with 1 TTL data Over Fiber Optic Converter digital TX 1310nm/RX 1550nm ,
PMD-1IP1TTL-FC-20Km

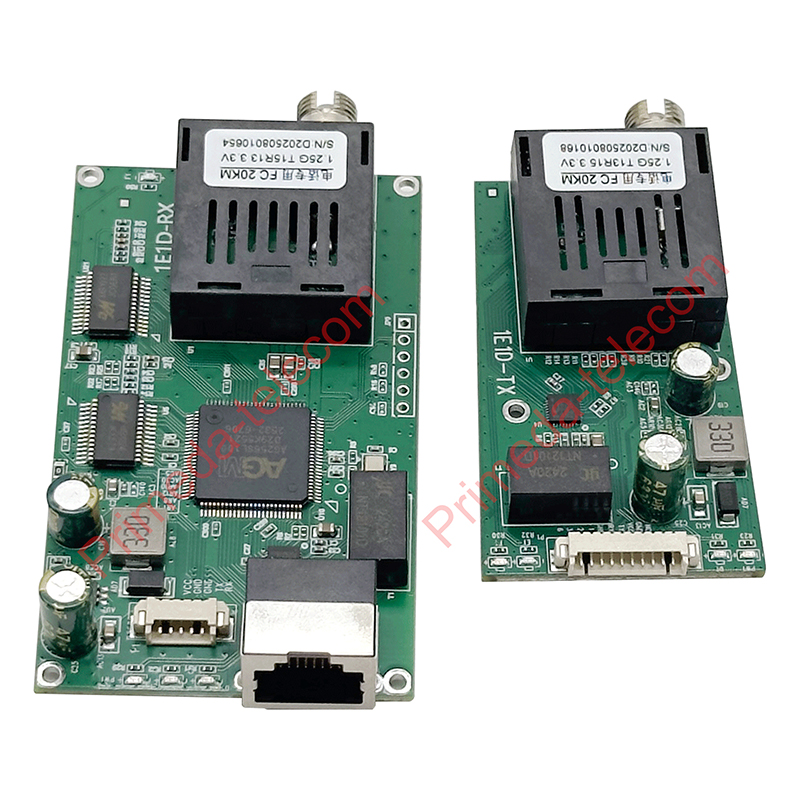

This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 1 Ethernet (RJ45 Port) and 1 TTL level signal over an optical fiber cable for long distance transmission, Singlemode single fiber up to 20km (40km/60km/80km/100km is optional ,please contact us if needed), High speed and stable transmission, No interference.
Support OEM,ODM, Long distance transmission 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.
Widely used in various scenarios that require long-distance, High-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
Support OEM,ODM, Long distance transmission 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.
Widely used in various scenarios that require long-distance, High-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields

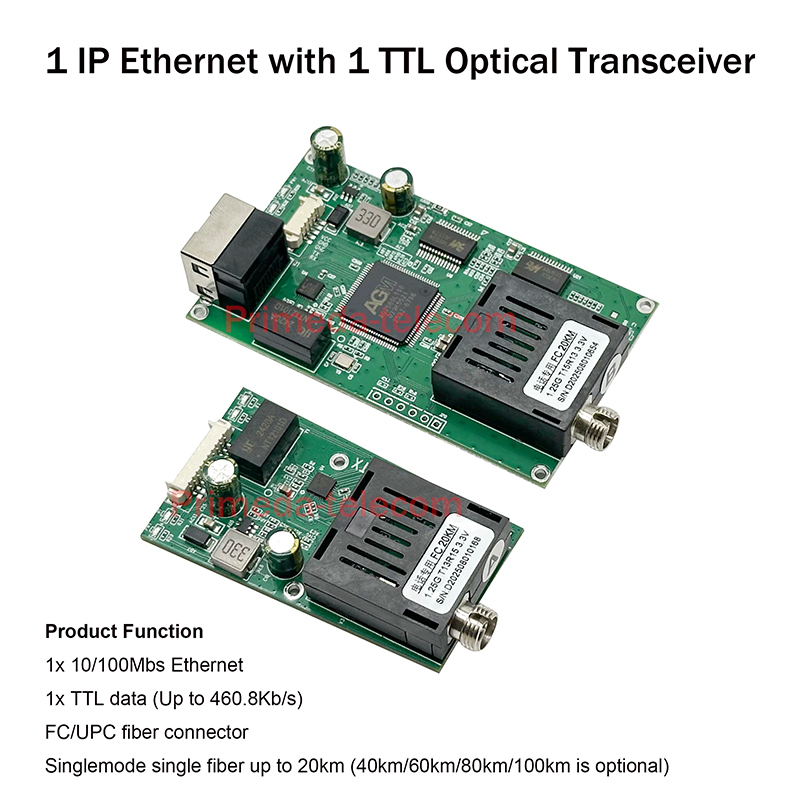

Product Function
1x 10/100Mbs Ethernet
1x TTL (Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more)
FC fiber connector
Singlemode single fiber up to 20km (40km/60km/80km/100km is optional)
Input voltage: DC6-57V
Applicable Environment
- Security system
- Television Medical
- Video and Telephone Conference
- Building control system
- Intelligent Transportation Monitoring System (ITS)
- Remote multimedia teaching/campus monitoring
- Long distance broadcasting and television transmission system
- Drone aerial photography
Data characteristics
Application scenarios: Supports 1 channel 10/100Mbps Ethernet data, compatible with all control keyboards, matrix protocols, hard disk recording gimbal, alarm composite data, industrial application transmission
Physical interface: Industrial wiring terminal (standard), RJ45 (customized)
Control equipment: PTZ decoder, control keyboard, matrix control data interface, high-speed ball, industrial equipment
Physical interface terminal: 1.25mm wiring terminal
TTL data rate 24Kbps-460Kbps (Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more)
Ethernet characteristics
Interface speed: 10/100Mbit/s adaptive, default to 100MBPS working state
Interface form: unshielded Category 5e RJ-45 socket
Supported protocols: IEEE 802.3U 100Base TX, 10/100M Ethernet standard
Communication working mode: full duplex or half duplex
Environmental Requirements
Environmental temperature: -20 ℃~+70 ℃
Storage temperature: -45 ℃ to+95 ℃
Relative humidity: 0-95% (no cold condensation)
Rated supply voltage: AC850-260V/50Hz
MTBF: ≥ 105 hours
Power consumption: 5w (Input: DC6-57V)
Product weight: about 25g/pcs

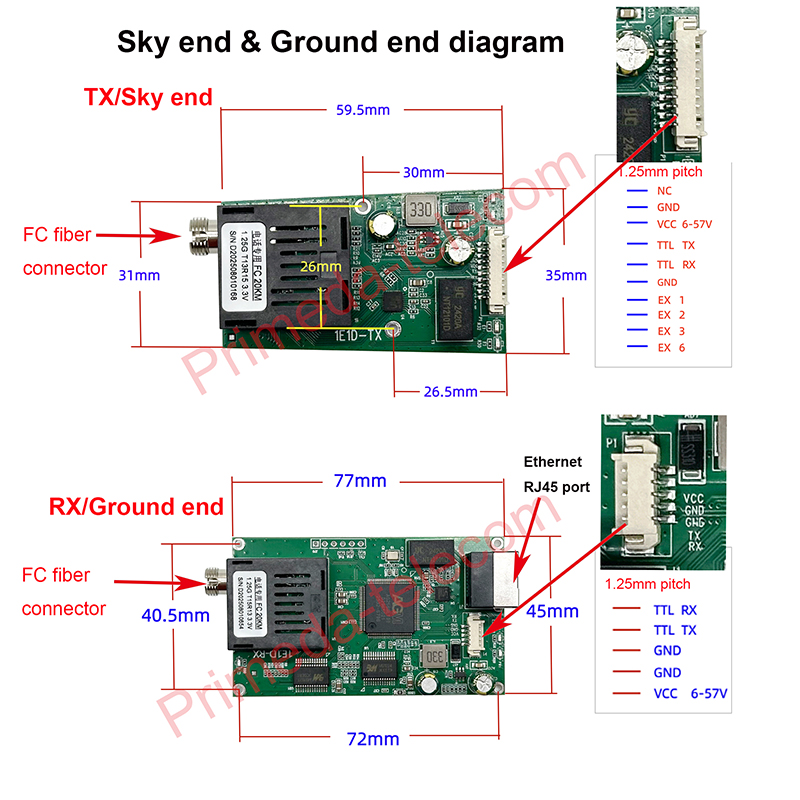

Size: 77x45mm(LxW)

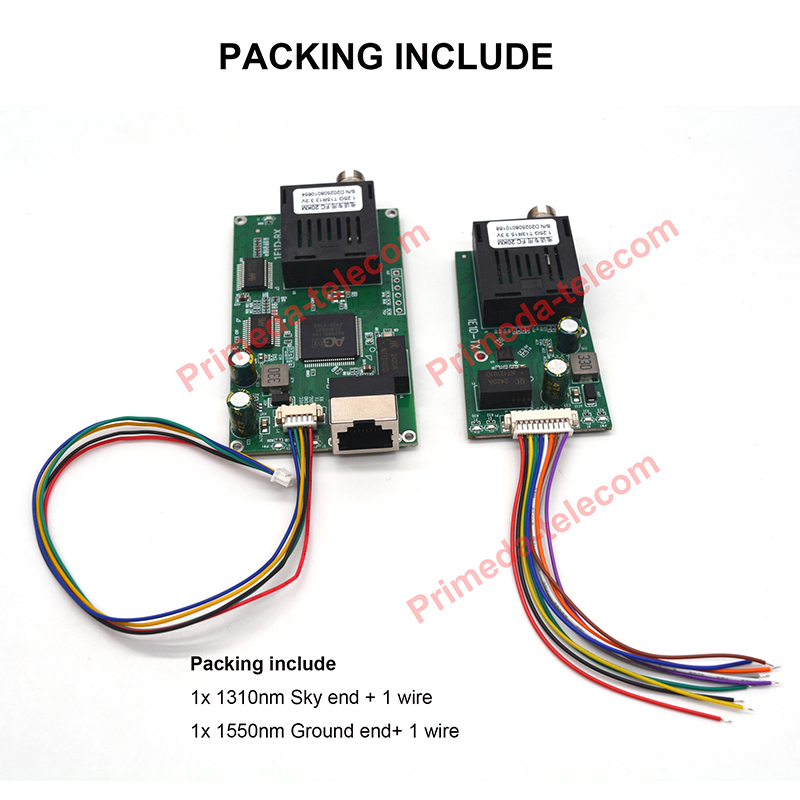

Packing include
1x 1310nm- Skyend+ 1 wire
1x 1550nm- Ground end+ 1 wire
