FPV Optical Module
2 Cvbs Video 2 TTL over Fiber Optical Transceiver Module 3.5mm Audio interface for Video Singlemode
PMD-2V2D-2TTL-FC-20Km-3.5mm
This optical module is 2 channel of CVBS video channel with 2 TTL level signal over an optical fiber cable for long distance transmission. TTL support CRSF/SBUS data.
It include a sky end (1310nm/TX) and a ground end (1550nm/RX). Developed for FPV drone signal transmission system.
High speed and stable transmission, Anti- interference.
Widely used in various scenarios that require long-distance, High-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
It is safe and reliable, stable in performance, light in weight and cost-effective.
Support OEM,ODM, Long distance transmission 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.
It include a sky end (1310nm/TX) and a ground end (1550nm/RX). Developed for FPV drone signal transmission system.
High speed and stable transmission, Anti- interference.
Widely used in various scenarios that require long-distance, High-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
It is safe and reliable, stable in performance, light in weight and cost-effective.
Support OEM,ODM, Long distance transmission 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.

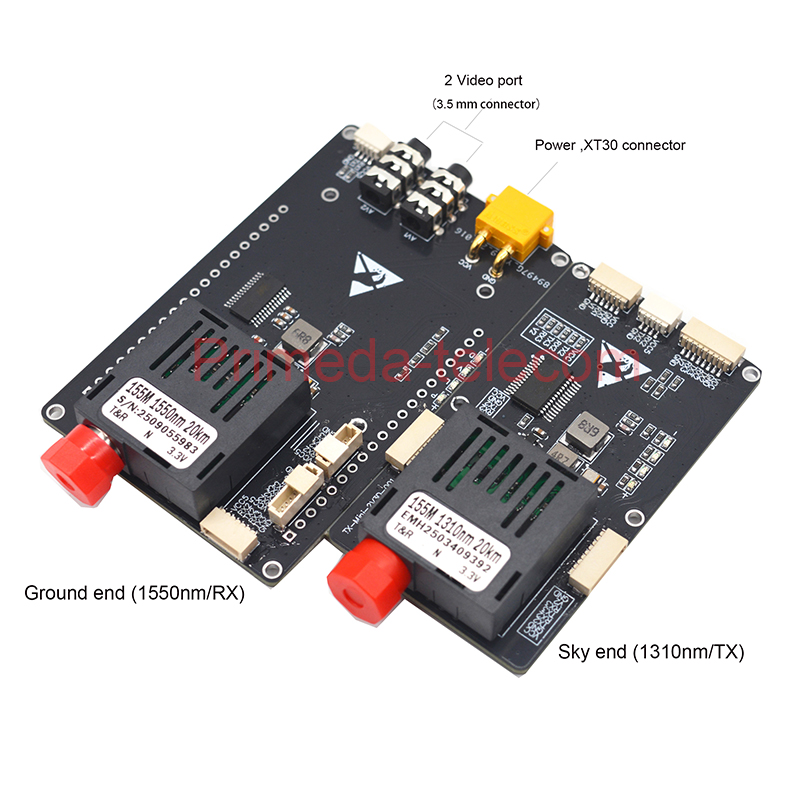

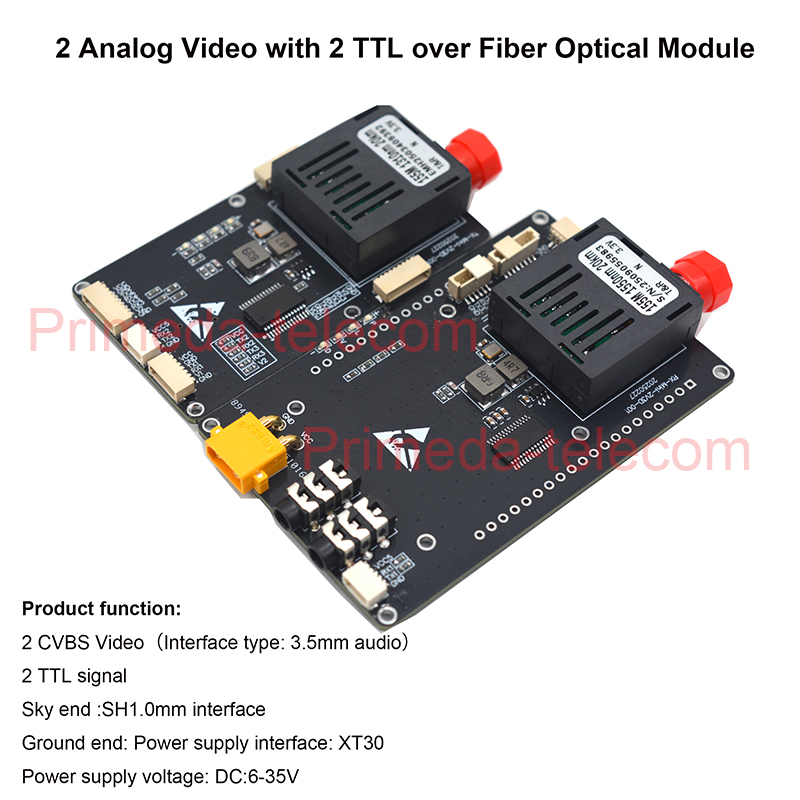

Product function:
2 CVBS Video（Interface type: 3.5mm audio）
2 TTL signal
Sky end :SH1.0mm interface
Ground end: Power supply interface: XT30
Power supply voltage: DC:6-35V
Specification:
Sky end :SH1.0mm interface
Ground end:
Power supply interface: XT30
Power supply voltage: DC:6-35V,
2xCVBS Video interface: 3.5mm audio head
SH1.0mm TTL data (supporting CRSF/SBUS) data

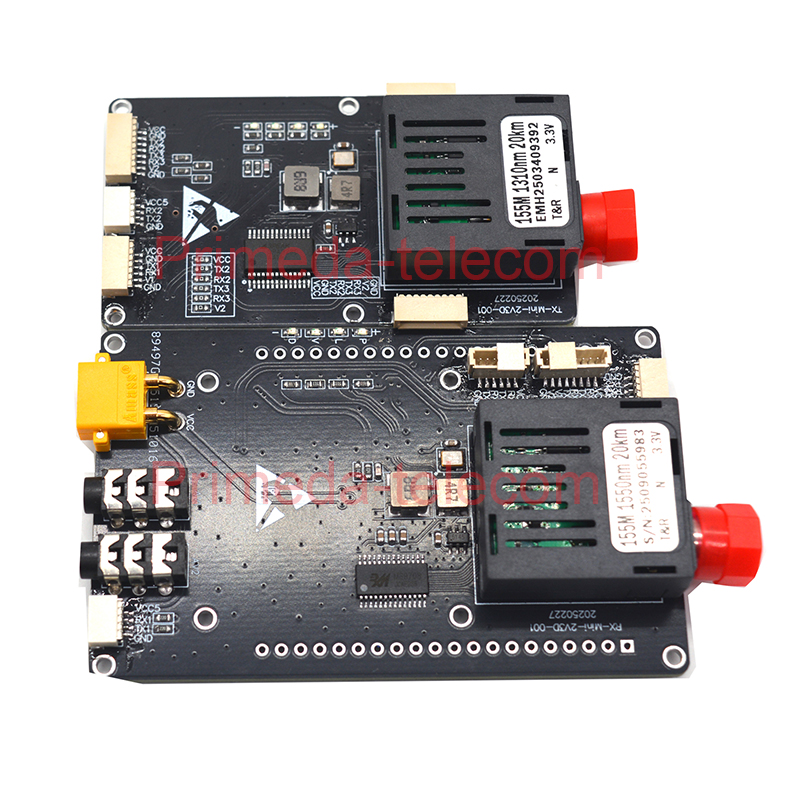

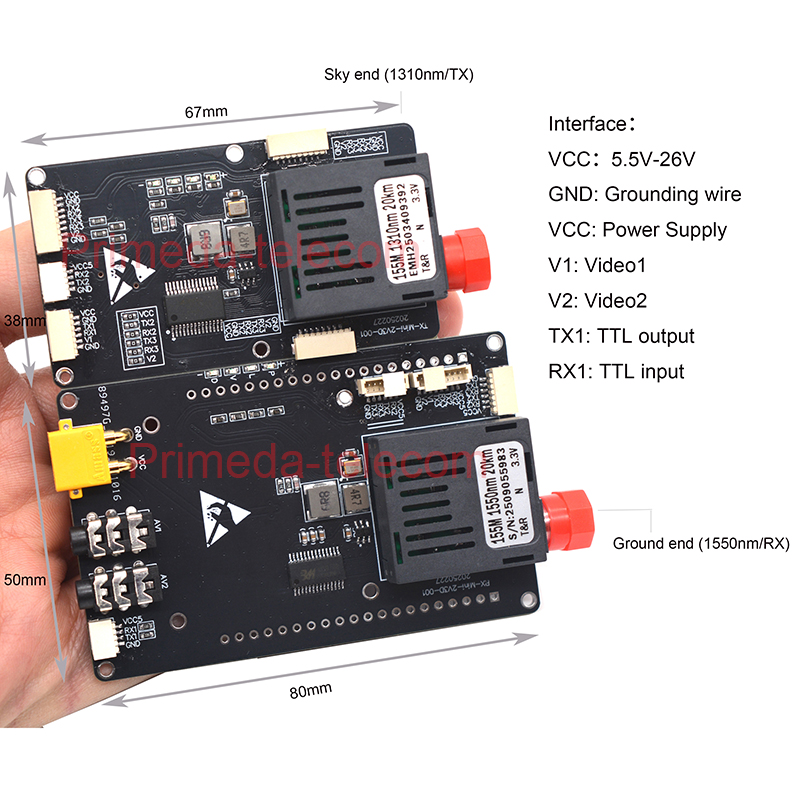

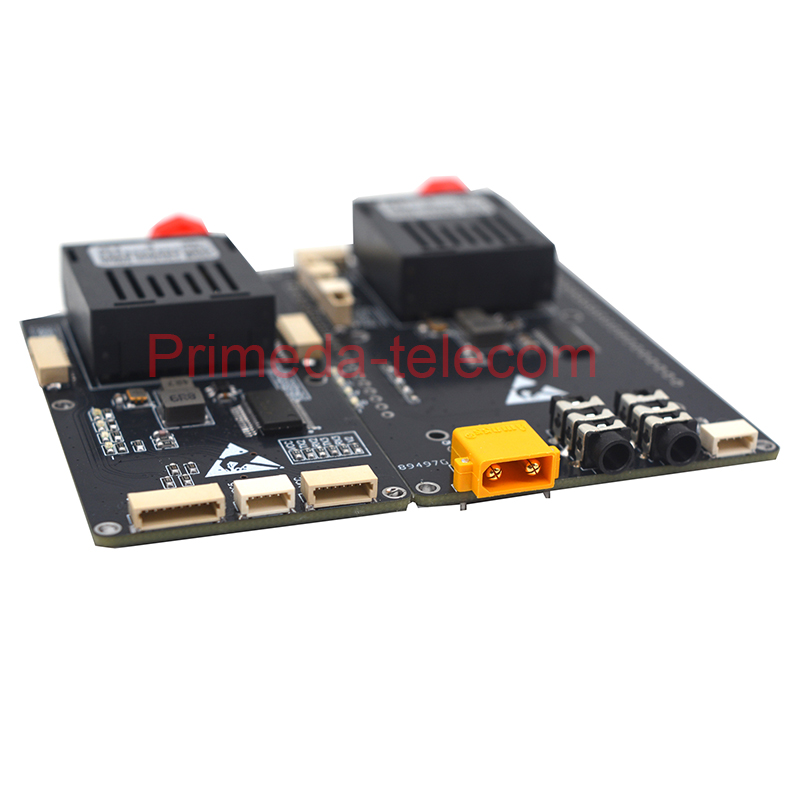

Interface：
VCC：5.5V-26V
GND: Grounding wire
VCC: Power Supply
V1: Video1
V2: Video2
TX1: TTL output
RX1: TTL input
Video Index:
Video : 2 channel
Video Interface: BNC
Video Input / Output Impedance : 75ohm ( unbalanced ) ;
Video Bandwidth 100MHz;
Video format compatible PAL, NTSC, SECAM;
The sender input level: > 500mVp-p
The receiver output level: 1Vp-p
Input and output impedance: 75 ohm
The receiver rise and fall times:<0.8ns
The receiver maximum jitter:<0.2 UI
Optical index:
Optical Interface : FC
Optical wavelength 1310nm /1550nm
Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm
Applicable fiber optic: singlemode, and compatible with multimode fiber.
Transmission distance: single-mode fiber 0-20KM
TTL speed: Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more
Product weight: about 25g/pcs
Package Include:
1 x Sky end TX/1310nm;
1 x Ground end RX/1550nm
2 CVBS Video（Interface type: 3.5mm audio）
2 TTL signal
Sky end :SH1.0mm interface
Ground end: Power supply interface: XT30
Power supply voltage: DC:6-35V
Specification:
Sky end :SH1.0mm interface
Ground end:
Power supply interface: XT30
Power supply voltage: DC:6-35V,
2xCVBS Video interface: 3.5mm audio head
SH1.0mm TTL data (supporting CRSF/SBUS) data
Interface：
VCC：5.5V-26V
GND: Grounding wire
VCC: Power Supply
V1: Video1
V2: Video2
TX1: TTL output
RX1: TTL input
Video Index:
Video : 2 channel
Video Interface: BNC
Video Input / Output Impedance : 75ohm ( unbalanced ) ;
Video Bandwidth 100MHz;
Video format compatible PAL, NTSC, SECAM;
The sender input level: > 500mVp-p
The receiver output level: 1Vp-p
Input and output impedance: 75 ohm
The receiver rise and fall times:<0.8ns
The receiver maximum jitter:<0.2 UI
Optical index:
Optical Interface : FC
Optical wavelength 1310nm /1550nm
Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm
Applicable fiber optic: singlemode, and compatible with multimode fiber.
Transmission distance: single-mode fiber 0-20KM
TTL speed: Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more
Product weight: about 25g/pcs
Package Include:
1 x Sky end TX/1310nm;
1 x Ground end RX/1550nm
