FPV Optical Module

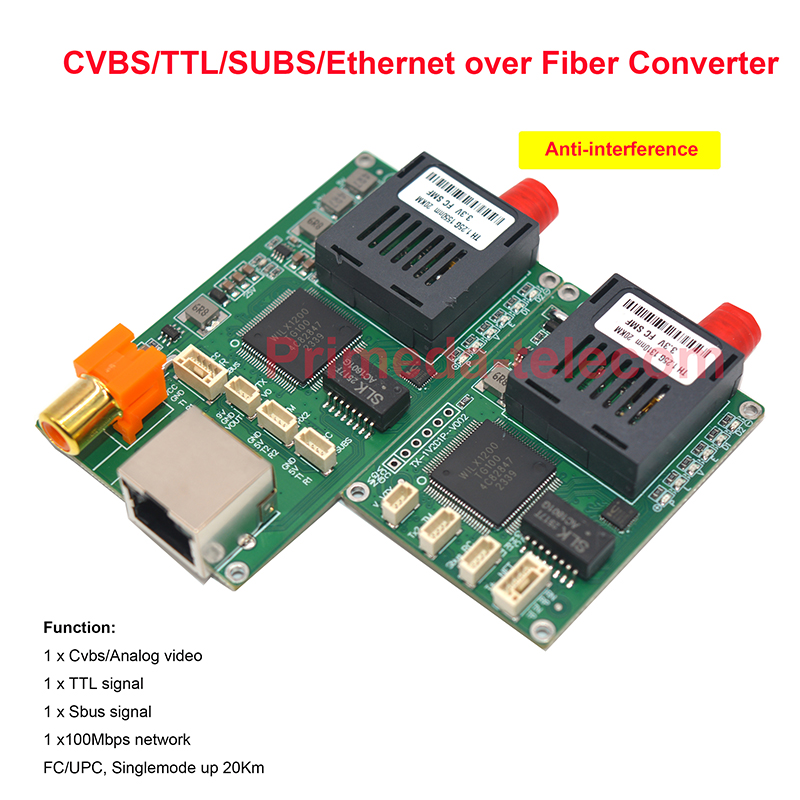

1 CVBS/TTL/SUBS/Ethernet over Fiber Optic Converter FC/UPC Singlemode up 20Km for Fpv drone
PMD-1V1TTL-1SUBS1E
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 1 analog video and 1 TTL/1Subs/1 Ethernet signal over an optical fiber cable for long distance transmission. High speed and stable transmission, No interference. Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
It is safe and reliable, stable in performance, light in weight and cost-effective. It can be customized according to buyer's special requirements. Contact us if needed.
It is safe and reliable, stable in performance, light in weight and cost-effective. It can be customized according to buyer's special requirements. Contact us if needed.
Product function:
1 x Cvbs analog video
1 x TTL signal
1 x Sbus signal
1 x100Mbps network
Product description
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 1 analog video and 1 TTL/1Subs/1 Ethernet signal over an optical fiber cable for long distance transmission. High speed and stable transmission, No interference. Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
It is safe and reliable, stable in performance, light in weight and cost-effective. It can be customized according to buyer's special requirements. Contact us if needed.

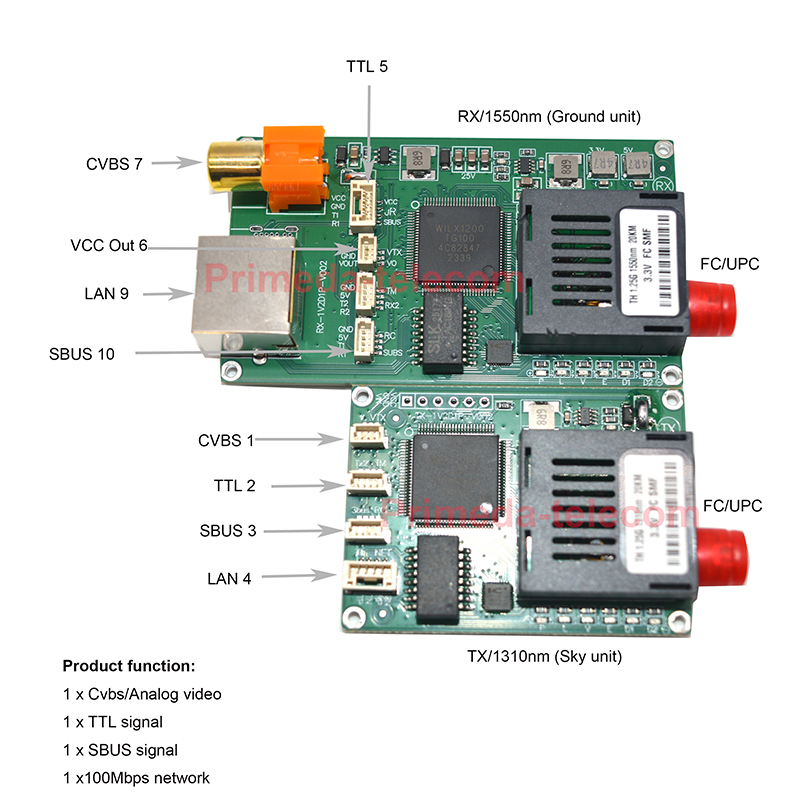

Product picture:
1 x Cvbs analog video
1 x TTL signal
1 x Sbus signal
1 x100Mbps network
Product description
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 1 analog video and 1 TTL/1Subs/1 Ethernet signal over an optical fiber cable for long distance transmission. High speed and stable transmission, No interference. Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
It is safe and reliable, stable in performance, light in weight and cost-effective. It can be customized according to buyer's special requirements. Contact us if needed.

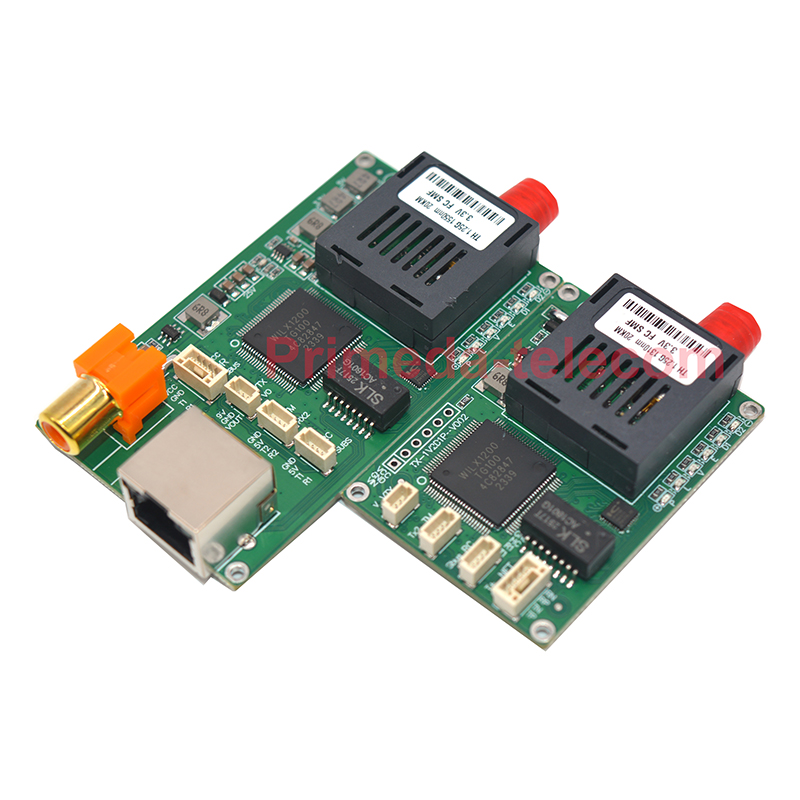

Product picture:
Specification
| Transmitter module (sky end) | |||
| CPLD | User programmable gate array | ||
| Input power | 5-18V | ||
| Interface | UART and Video | ||
| Video protocol | PAL / NTSC | ||
| Control protocol | SBUS/CRSF | ||
| Transmission distance max | >20km | ||
| Wavelength | 1310nm /1550nm | ||
| Dimension | 55*30mm | ||
| Weight | 10g | ||
| Receiver module (ground end) | |||
| CPLD | User programmable gate array | ||
| Input power | 5-18V | ||
| Interface | UART /Video（RCA或VTX） | ||
| Video protocol | PAL / NTSC | ||
| Protocol | SBUS/CRSF |
||
| Transmission distance max | >20km | ||
| Wavelength | 1310nm /1550nm | ||
| Dimension | 55*30mm |
||
| Weight | 10g | ||
| ■Network parameters | ■ 网络参数 | ||
| Interface | Electrical： RJ45 .Fiber：FC | Interface type | Electrical： RJ45 .Fiber：FC |
| Mode | Half/Full Duplex 10/100Mbps | Mode | Half/Full Duplex 10/100Mbps |
| Transmission mode | store and forward | Transmission mode | store and forward |
| throughput | 100% | throughput | 100% |
| operation temperature | -10～50℃ | operation temperature | -10～50℃ |
| storage temperature | -25～65℃ | storage temperature | -25～65℃ |
