Video/Audio/Ethernet/Data
Video Ethernet RS485 422 Data to Fiber media Converters

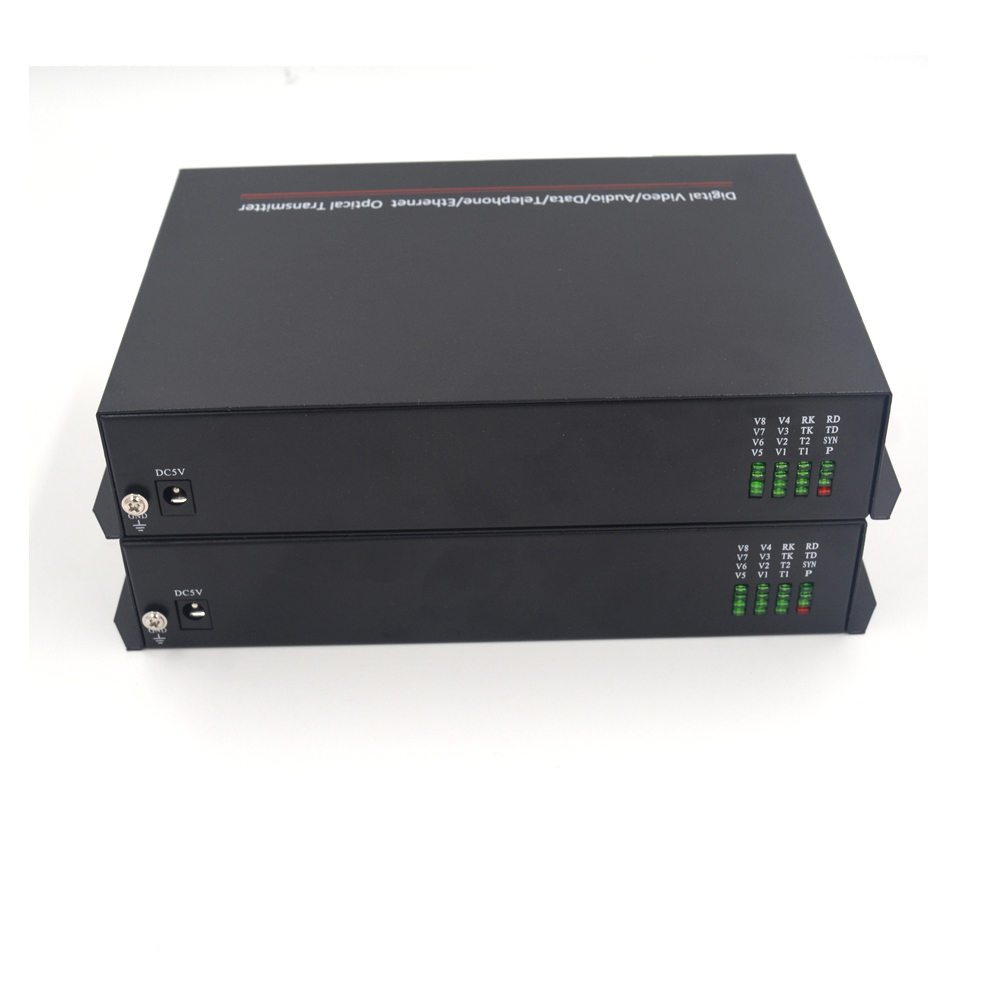

PMD-8V2D1E-FC-S/M
This model is multifunctional Video/Data/Ethernet over same fiber optic media converters, with 8 channels Video (for analog cameras) and one 10/100Mbps Ethernet which can be applicable for extending computer networking by same fiber, as well as applicable for IP cameras. and 4 bidirectional RS-485 data for remote cameras control, and 4 bidirectional RS-422 data.
Custom made is acceptable, No Minimum purchase.
Custom made is acceptable, No Minimum purchase.
Function:
1. 8 channels video for analog cameras
2. 1x 10/100Mbps Ethernet
3. 4x RS-485 data (bidirectional)
4. 4x RS-422 data (bidirectional)
5. FC, Single-mode up to 20Km
Video:
Optical :
Data :
RS-485 (2 wires), Bi-directional
RS-422 (4 wires), Bi-directional
Connector: Terminals block
Ethernet:
Power supply: AC100~240V, DC5V/2A (US/EU/UK/AU standard is optional)

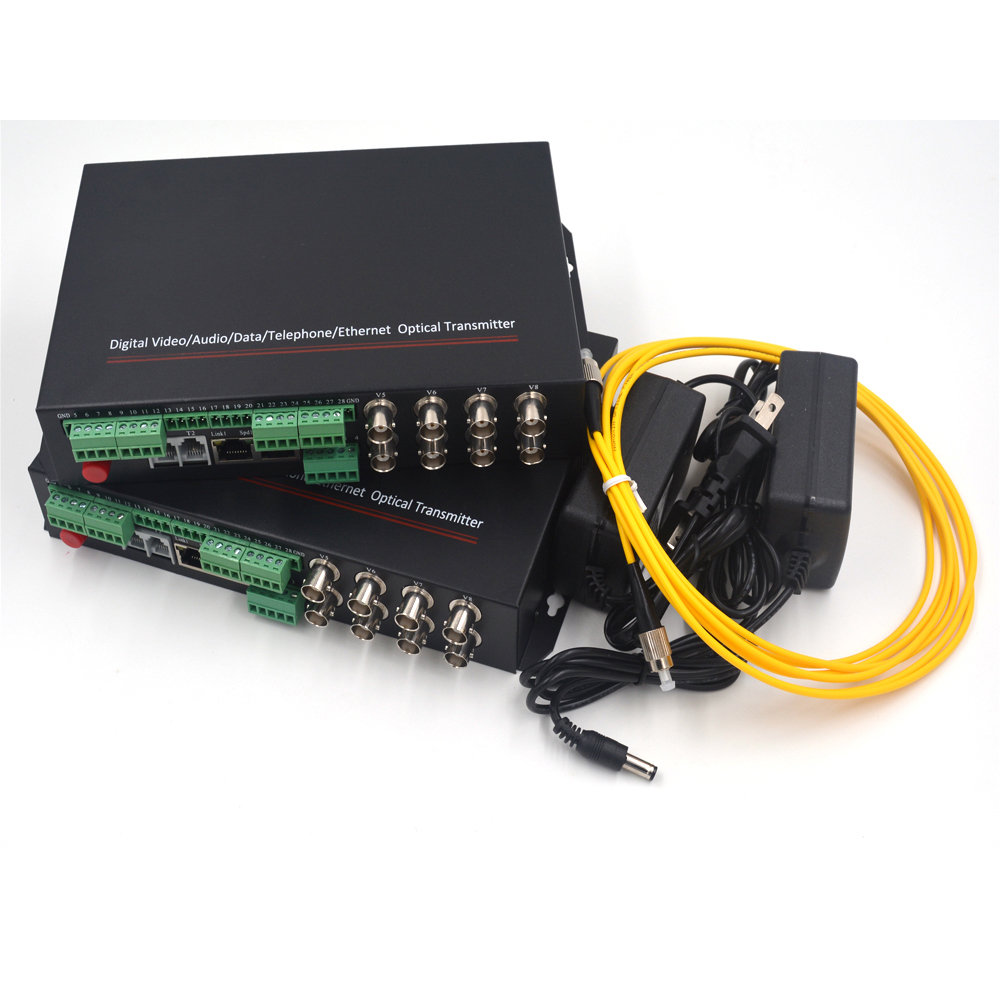

Package:
1x Video fiber Transmitter
1x Video fiber Receiver
2x Power supply adapter
1x 3M FC-FC S/M fiber patch cord.
1x User manual
1. 8 channels video for analog cameras
2. 1x 10/100Mbps Ethernet
3. 4x RS-485 data (bidirectional)
4. 4x RS-422 data (bidirectional)
5. FC, Single-mode up to 20Km
Video:
- Video connector: BNC
- Video format compatible for PAL, NTSC, SECAM
- Mean Time between failures: More than 100,000 hours
- Input / output impedance: 75 Ω (unbalanced)
- Input / output voltage: typical 1Vpp (peak-to-peak), maximum 1.2Vpp
- Bandwidth: 5Hz-10MHz
- Sampling: 15MHz high speed sampling
- Digital Bit Width: 8/10 bits (bits)
- Differential gain: (10% -90% APL) DG <1% (typical)
- Differential phase: (10% -90% APL) DP <0.8 degree (typical)
- Field tilt: <0.3%
- Video signal to noise ratio (weighted): S / N ≥ 70dB (maximum optical link loss)
Optical :
- Optical Interface : FC
- Wavelength : Single-mode 1310/1550μm (9/125μm).
- Transmission distance: Singlemode 0-20Km.Multimode up to 500m.
Data :
RS-485 (2 wires), Bi-directional
RS-422 (4 wires), Bi-directional
Connector: Terminals block
Ethernet:
- Interface rate: 10 /100Mbit/s adaptive, the default is 100Mbps working state
- Interface type: UPC Cat5 cable RJ-45
- Support Protocol: IEEE 802.3U 100Base-TX, 10 / 100M Ethernet standard
- Work mode: full duplex or half duplex
Power supply: AC100~240V, DC5V/2A (US/EU/UK/AU standard is optional)
Package:
1x Video fiber Transmitter
1x Video fiber Receiver
2x Power supply adapter
1x 3M FC-FC S/M fiber patch cord.
1x User manual
