Custom made according to client’s special requirement is available.Fast production, normally lead time is 1~ 3 work days. Contact us if need.

Function:

•  4 channels video for analog cameras
•  1x 10/100Mbps Ethernet
•  2x RS-485 data(bidirectional)
•  2x RS-422 data(bidirectional)
•  Single-mode 9/125,20Km

Tip: 1~8 Video/Dry contact/Telephone is optional, Multimode 2km version optional

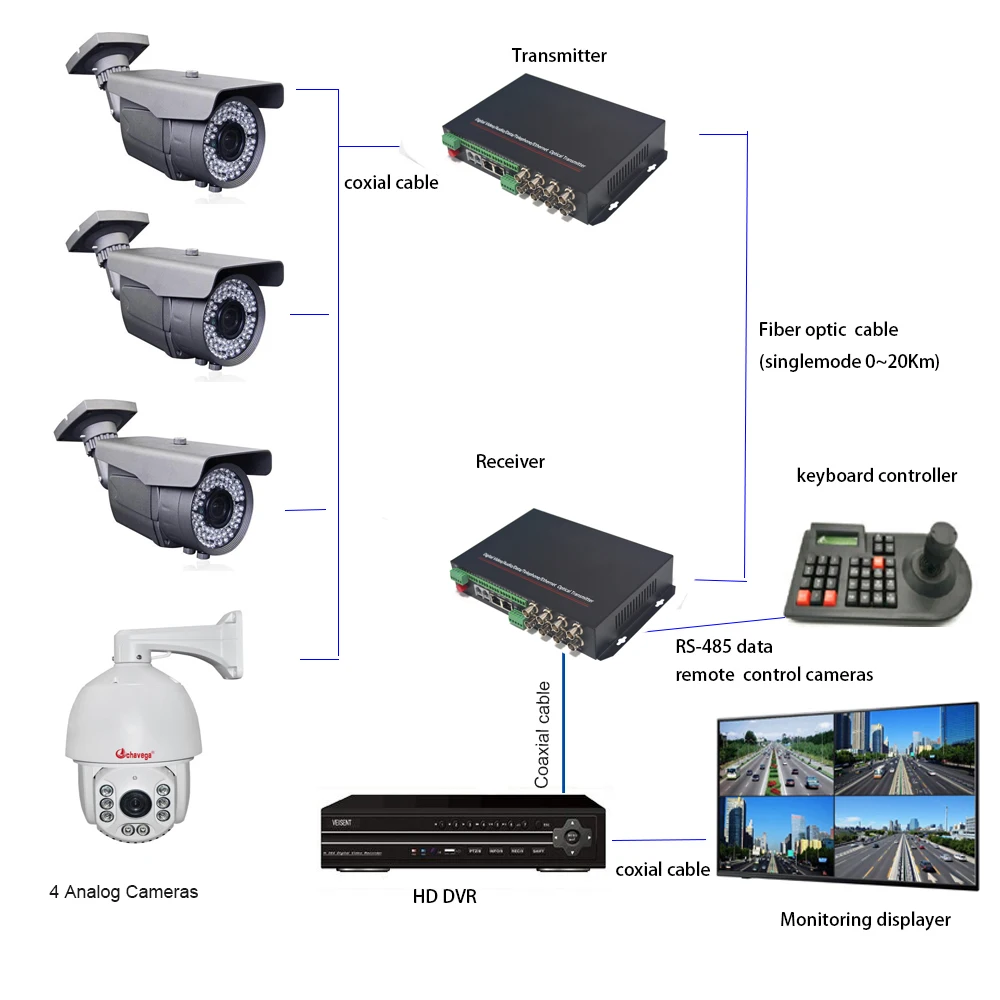

Applicable for:

l Security Systems

l Radio and television transmission

l Video monitoring

l Building control systems

l Train/High speed road monitoring

l Intelligent Traffic Monitoring System (ITS)

l Remote multimedia teaching / campus monitoring

l Long-distance radio and television transmission system

Video:

l Video connector: BNC

l Video format compatible for PAL, NTSC, SECAM

l Mean Time between failures:More than 100,000 hours

l Input / output impedance: 75 Ω (unbalanced)

l Input / output voltage: typical 1Vpp (peak-to-peak), maximum 1.2Vpp

l Bandwidth: 8MHz

l Sampling: 15MHz high speed sampling

l Digital Bit Width: 8/10/12 bits (bits)

l Differential gain: (10% -90% APL) DG <1% (typical)

l Differential phase: (10% -90% APL) DP <0.8 degree (typical)

l Field tilt: <0.5%

l Video signal to noise ratio (weighted): S / N ≥ 70dB (maximum optical link loss)

 Data :

l RS-485 (2 wires), Bi-directional

l RS-422 (4 wires), Bi-directional

l Connector: Terminals block

 Ethernet:

l Interface rate: 10 /100Mbit/s adaptive, the default is 100Mbps working state

l Interface type: UPC Cat5 cable RJ-45

l Support Protocol: IEEE 802.3U 100Base-TX, 10 / 100M Ethernet standard

l Work mode: full duplex or half duplex

Fiber optic :

l Optical Interface : FC

l Wavelength : Single-mode 1310/1550μm (9/125μm).

l Transmission distance: Singlemode 0~20Km.multimode 2Km optional

Power supply:  AC100~240V, DC5V/2A

Package:

· 1x Video Transmitter

· 1x Video Receiver

· 2x Power adapters ( default US, EU/AU/UK Available)

· 1x User manual
