HD 1080P CVI/TVI/AHD
1080P Video Extender over Fiber
PMD-1V1D-2MP

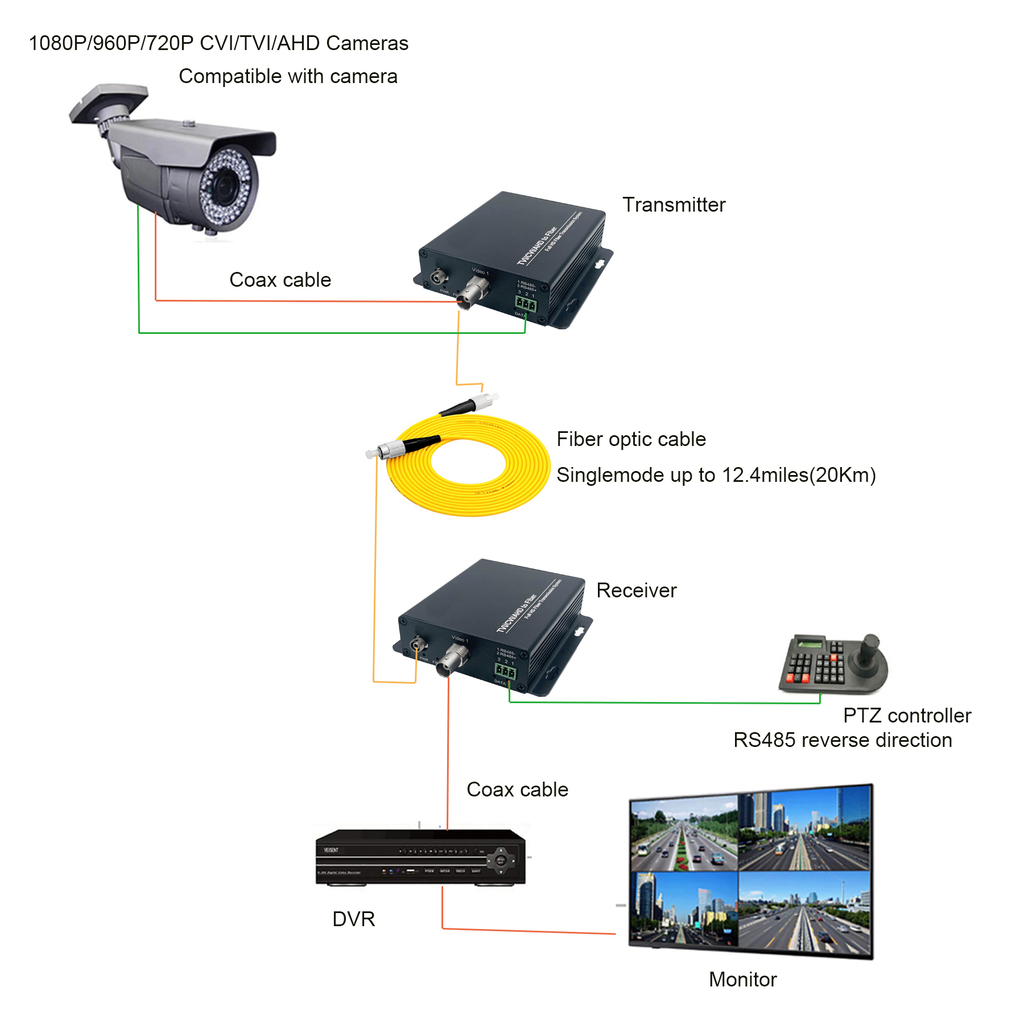

High Quality, 1 Channel 2MP 1080P HD Video over Fiber Optic Extender,FC fiber interface ,Singlemode fiber up to 20Km (40Km/60Km/80Km/100Km is optional)
For 1080p 960p 720p AHD CVI TVI HD Camera, Compatible with analog Camera.
1/2/4/8/16 channel is optional. OEM, wholesale price.
For 1080p 960p 720p AHD CVI TVI HD Camera, Compatible with analog Camera.
1/2/4/8/16 channel is optional. OEM, wholesale price.
Support Cameras:
• TVI: 1080P (1920×1080), 960P (1280×960), 720P (1280×720)
• CVI :1080P (1920×1080), 960P (1280×960), 720P (1280×720)
• AHD :1080P (1920×1080), 960P (1280×960), 720P (1280×720)
• PAL, NTSC, SECAM Analog cameras
Optical index:
1. Optical Interface : FC
2. Applicable fiber optic: singlemode, and compatiable with multimode fiber.
3. Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~300meters
Video Index:
1. Video: 1 channel
2. Video Interface: BNC
3. Coaxial cable transmission length: 1080p up to 300meters.720p up to 500meters
4. Video Input / Output Impedance : 75ohm ( unbalanced ) ;
5. Video Bandwidth 100MHz;
6. Video format compatible PAL, NTSC, SECAM;
7. The sender input level: > 500mVp-p
8. The receiver output level: 1Vp-p
9. Input and output impedance: 75 ohm
10. The receiver rise and fall times:<0.8ns
11. The receiver maximum jitter:<0.2 UI
Data index:
• RS-485 reverse direction data, for remote control camera.
• Connector: terminal block, 2 wires.
General index
1. Power Adapter: AC100~240V DC 5V1A
2. Working temperature: -40 ~ + 85 degree
3. Storage temperature: -40 ~ + 85 degree
4. Humidity: 0 ~ 95% non-condensing
5. Mean Time between failures: ≥100,000 hours
Package Include:
1 x Video Transmitter
1 x Video Receiver
2 x Power supply adapter (US/EU/UK/AU standard is optional)
1 x User manual
• TVI: 1080P (1920×1080), 960P (1280×960), 720P (1280×720)
• CVI :1080P (1920×1080), 960P (1280×960), 720P (1280×720)
• AHD :1080P (1920×1080), 960P (1280×960), 720P (1280×720)
• PAL, NTSC, SECAM Analog cameras
Optical index:
1. Optical Interface : FC
2. Applicable fiber optic: singlemode, and compatiable with multimode fiber.
3. Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~300meters
Video Index:
1. Video: 1 channel
2. Video Interface: BNC
3. Coaxial cable transmission length: 1080p up to 300meters.720p up to 500meters
4. Video Input / Output Impedance : 75ohm ( unbalanced ) ;
5. Video Bandwidth 100MHz;
6. Video format compatible PAL, NTSC, SECAM;
7. The sender input level: > 500mVp-p
8. The receiver output level: 1Vp-p
9. Input and output impedance: 75 ohm
10. The receiver rise and fall times:<0.8ns
11. The receiver maximum jitter:<0.2 UI
Data index:
• RS-485 reverse direction data, for remote control camera.
• Connector: terminal block, 2 wires.
General index
1. Power Adapter: AC100~240V DC 5V1A
2. Working temperature: -40 ~ + 85 degree
3. Storage temperature: -40 ~ + 85 degree
4. Humidity: 0 ~ 95% non-condensing
5. Mean Time between failures: ≥100,000 hours
Package Include:
1 x Video Transmitter
1 x Video Receiver
2 x Power supply adapter (US/EU/UK/AU standard is optional)
1 x User manual
