Support Cameras:

• TVI: 1080P (1920×1080), 960P (1280×960), 720P (1280×720)
• CVI :1080P (1920×1080), 960P (1280×960), 720P (1280×720)
•  AHD :1080P (1920×1080), 960P (1280×960), 720P (1280×720)

For the environment:

• 1.  Security Systems
• 2.  Radio and television transmission
• 3.  HD Video monitoring
• 4.  Building control systems
• 5.  Train/High speed road monitoring
• 6.  Intelligent Traffic Monitoring System (ITS)
• 7.  Remote multimedia teaching / campus monitoring
• 8.  Long-distance radio and television transmission system

Optical index:

1. 1. Optical Interface : FC
2. 2. Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm
3. 3. Wavelength: 1310/1550μm
4. 4. Applicable fiber optic: singlemode, and compatiable with multimode fiber.
5. 5. Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~500meters

Video Index:

1. 1. Video : 2 channels
2. 2. Video Interface: BNC
3. 3. Support 1280H and 1920H HD video format
4. 4. Support 1280×720, 1280×960,1920×1080 @25Hz, @30Hz,@50Hz,@60HZ
5. 5. Support 1280H/25f,1280H/30f,1280H/50f,1280H/60f,1920H/25f, 1920H/30f HD format
6. 6. Coaxial cable transmission length: 1080p up to 300meters.720p up to 500meters
7. 7. Video Input / Output Impedance : 75ohm ( unbalanced ) ;
8. 8. Video Bandwidth 100MHz;
9. 9. Video format compatible PAL, NTSC, SECAM;
10. 10. The sender input level: > 500mVp-p
11. 11. The receiver output level: 1Vp-p
12. 12. Input and output impedance: 75 ohm
13. 13. The receiver rise and fall times:<0.8ns
14. 14. The receiver maximum jitter:<0.2 UI

Data index:

•  1. RS-485 reverse direction data, for remote control camera. optional
•  2. Connector: terminal block, 2 wires.

General index

1.   Power Adapter: AC100~240V DC 5V2A

2.   Working temperature: -40 ~ + 85 degree

3.   Storage temperature: -40 ~ + 85 degree

4.   Humidity: 0 ~ 95% non-condensing

5.   Mean Time between failures: ≥100,000 hours

Package Include:

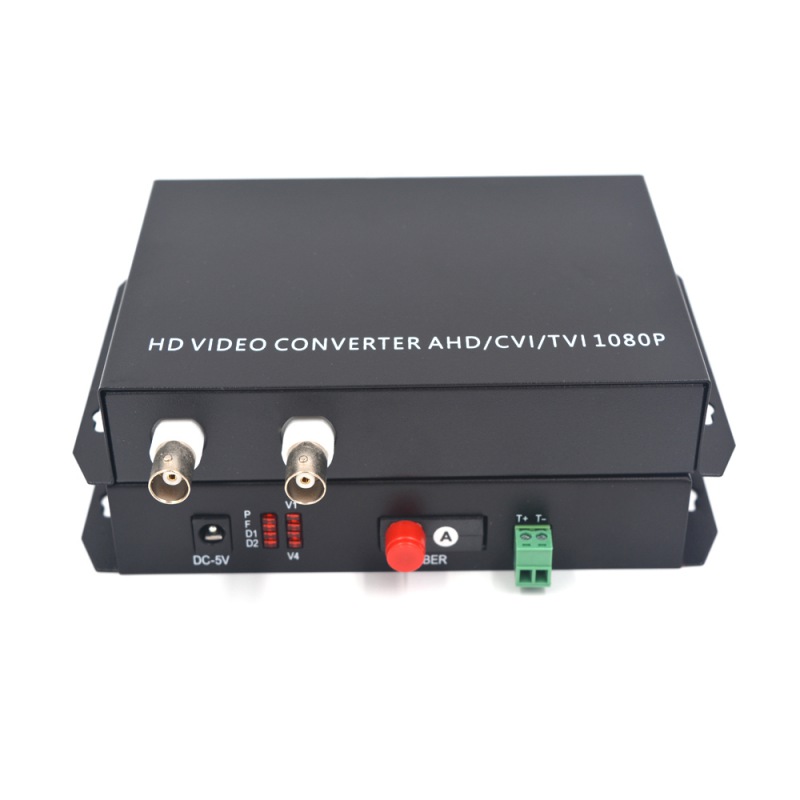

1. 1 x 2 channels Video Transmitter

2. 1 x 2 channels Video Receiver

3. 2 x Power supply (default US, EU/UK/AU available)

4. 1 x User manual
