Analog Camera Converters
Analog Video Converter over Fiber Optic
PMD-1V1D-ST-SM

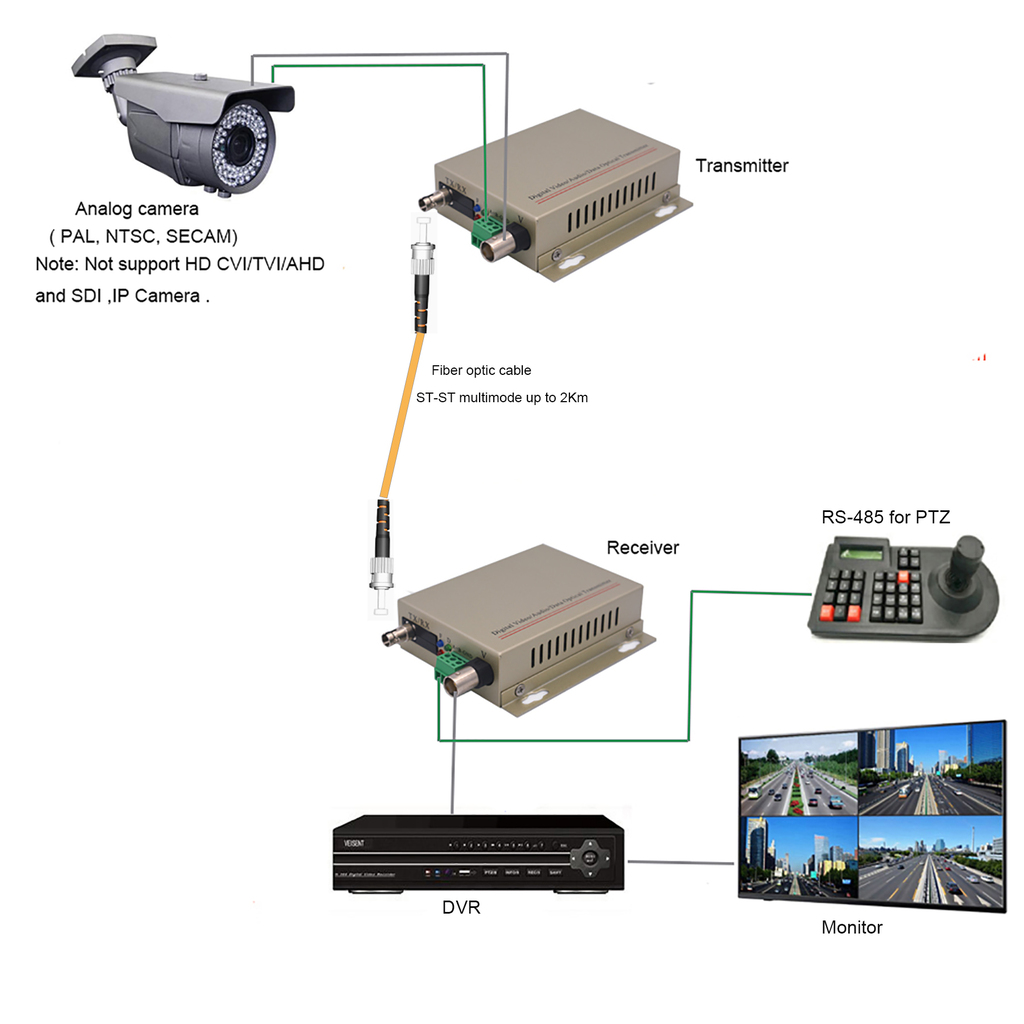

1. Extend 1 analog video signals through single fiber optic cable to remote display.
2. Long transmission distance up to 20Km by single-mode fiber, Compatible with multimode fiber up to 500meters. Optical interface: ST （SC/FC is optional.） Multimode version up to 1.5Km is optional.
3. Applicable for Analog cameras only, Compatible for PAL, NTSC, SECAM Video format automatically.
2. Long transmission distance up to 20Km by single-mode fiber, Compatible with multimode fiber up to 500meters. Optical interface: ST （SC/FC is optional.） Multimode version up to 1.5Km is optional.
3. Applicable for Analog cameras only, Compatible for PAL, NTSC, SECAM Video format automatically.
Feature:
Single-mode version is optional:
Multi-mode version is optional:
Video:
1. Video format compatible with PAL, NTSC, SECAM.
2. Video Input / Output Impedance: 75ohm (unbalanced);
3. Video Bandwidth :5Hz-10MHz;
4. Video voltage 1VP-P;
5. Video SNR ≥ 70dB;
6. Differential gain ≤ 0.7%;
7. Differential phase ≤ 0.7 °;
8. 8- bit linear PCM coding
9. Video Interface: BNC;
Data:
1.Type: RS-485 (2 wires, reverse direction).
2. Connector: industry terminal block.
3. Use for remote control PTZ.
General Index:
1. The usual time between failures (MTBF) greater than 100,000 hours.
2. Working voltage: AC100-240V, DC5V2A, with US standard plug.
3. Operating temperature: -40 +70 degree.
4. Operating humidity :0 -95 % non-condensing.
Power supply:
AC100-240V,DC5V2A.(US/EU/UK/AU Standard is optional)
Package:
1. 1x 1 channel video transmitter
2. 1x 1 channel video receiver
3. 2x External power adapters (US/EU/UK/AU optional)
4. User manual
1. This unit extend 1 analog video signals through a fiber optic cable to remote display devices. Long transmission distance up to 20Km by single-mode fiber, it is compatible with multimode fiber up to 500meters. Optical interface: ST(SC/FC is optional). Multimode version up to 1.5Km is optional. if need, Contact us before order.
2. Applicable for Analog cameras only, Compatible for PAL, NTSC, SECAM Video format automatically. NOTE: DON’T SUPPORT 1080P/960P/720P TVI/CVI/AHD HD Cameras and SDI cameras, please read it carefully before order.
3. Suitable fiber type: universal Single-mode and multimode fiber. With RS-485 data (reverse direction) which can remotely control PTZ.
4. LED indicators can dynamic feedback link connection state and fault detection to easily monitor network status.
5. Plug and Play, No need to set up. Cost-effective, Greatly save your engineering cabling cost.
Single-mode version is optional:
Multi-mode version is optional:
Video:
1. Video format compatible with PAL, NTSC, SECAM.
2. Video Input / Output Impedance: 75ohm (unbalanced);
3. Video Bandwidth :5Hz-10MHz;
4. Video voltage 1VP-P;
5. Video SNR ≥ 70dB;
6. Differential gain ≤ 0.7%;
7. Differential phase ≤ 0.7 °;
8. 8- bit linear PCM coding
9. Video Interface: BNC;
Data:
1.Type: RS-485 (2 wires, reverse direction).
2. Connector: industry terminal block.
3. Use for remote control PTZ.
General Index:
1. The usual time between failures (MTBF) greater than 100,000 hours.
2. Working voltage: AC100-240V, DC5V2A, with US standard plug.
3. Operating temperature: -40 +70 degree.
4. Operating humidity :0 -95 % non-condensing.
Power supply:
AC100-240V,DC5V2A.(US/EU/UK/AU Standard is optional)
Package:
1. 1x 1 channel video transmitter
2. 1x 1 channel video receiver
3. 2x External power adapters (US/EU/UK/AU optional)
4. User manual
