3G/HD SDI Converters

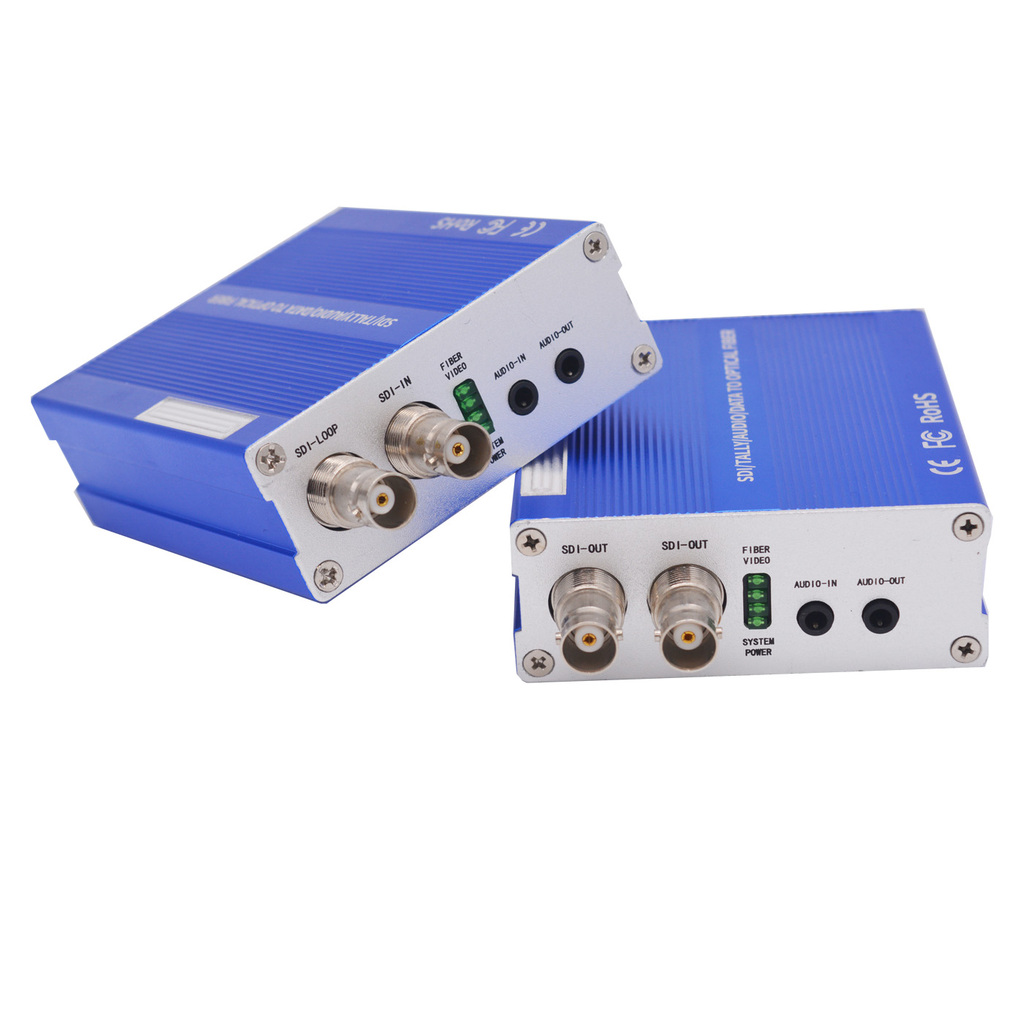

Broadcast 3G SDI Video Fiber Optic Converter
PMD-3GSDI-RS422-3.5mm-LC
The item is a broadcast high quality 3G-SDI over single fiber optic extender kit. It supports video resolution up to 1080P@60Hz and 1080i@59.94 backward more. it provides optical transmission of a 3G/HD-SDI signal with embedded audio signal and with additional bidirectional RS-422 data and bidirectional 3.5mm mini jack on the transmitter and receiver. with Tally function is optional.
Function:
1. 1x 3G-SDI (compatible with HD-SDI)
2. 1x Bi-directional RS-422.
3. 1x Bi-directional Audio 3.5mm jack
4. LC, Single-mode fiber up to 20Km.
Note : TALLY is optional. if need, please contact us before order.
Features:
1. Broadcast quality design, Suitable for broadcast quality 3G-SDI camera and HD-SDI camera.
2. Multifunctional, With loop out and Bi-directional RS422 data and bidirectional 3.5mm Audio, Tally is Optional.
3. Compatible with SMPTE 259M, 292M, 344M, 424M, video standards
4. Support up to 1080P@60Hz and 1080i@59.94 and backward more.
5. LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment
6. Plug and play, Easy to install.
Specification:
1. Optical interface: SFP, Single fiber LC
2. Suitable fiber type: universal single-mode and multi-mode.
3. Working distance: Single mode 0-20Km, Compatible with multimode 0~300m
4. Wavelength: Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm)
5. Working Voltage:AC100V~240V, DC5V-12V (US/EU/UK/AU standard plug is optional)
Package Include:
1 x 3G-SDI Transmitter
1 x 3G-SDI Receiver
2 x 3G SFP module
2 x External Power supply adapter
1x Manual
