Overview:

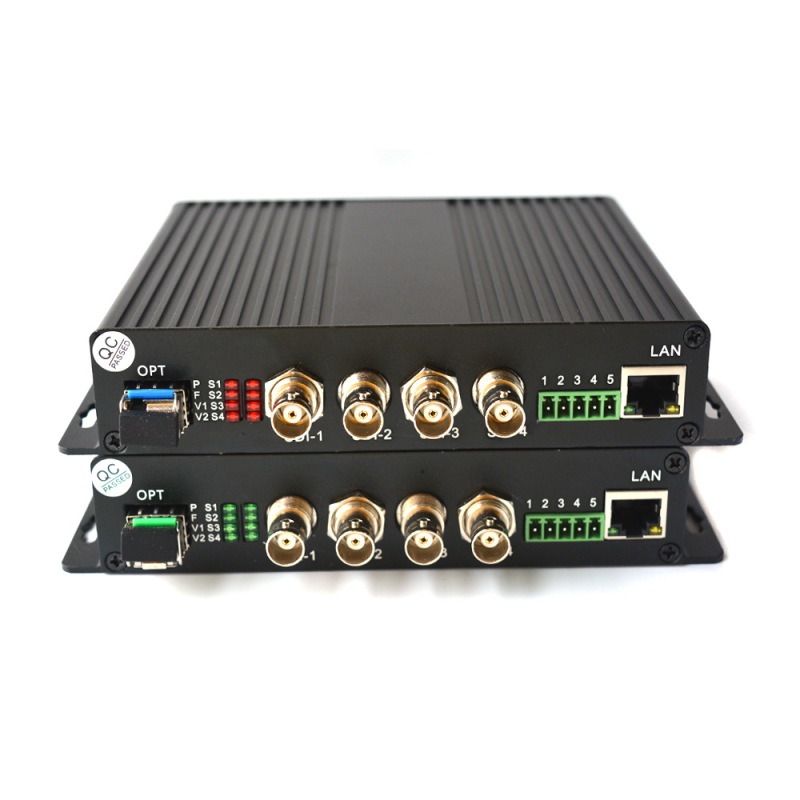

The item is 4 channels of HD-SDI over singlemode or multimode fiber transmitter and receiver extender kit. This unit provides optical transmission of four HD-SDI signal with embedded audio signal and 1channel 10/100Mbps on the transmitter & receiver for monitoring, The system support signals accord with standards of SMPTE292M and support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability.

In addition, our innovative video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate1.5Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD-SDI signal transport.

Function:

• 4x HD-SDI (same direction ,from TX to RX)
• 1x 10/100Mbps Ethernet
• RS-485 data (optional)

Features:

1. 100% Brand-New
2. Support  transmission of four high-definition SDI video over a single-mode fiber with single LC optical interface. (FC interface optional)
3. With one 10/100Mbps Ethernet
4. Support high-definition HD-SDI (1.485Gbps) (No support 3G-SDI and SD-SDI)
5. Compatiable with 1080P@30 and backward, 1080i@60 and backward
6. The broadcast signal quality, fully compliant SMPT standard;
7. The maximum cable length: SD 400m; HD 200M; 3G 140M;
8. Working distance: Single-mode 0-20Km.
9. Singlemode 1310nm/1550nm
10. Voltage:AC100V~240V,DC5V/2A
11. Package:carton box

Package Include:

• 1 x 4CH HD-SDI Transmitter
• 1 x 4CH HD-SDI Receiver
• 1 x 3m LC/LC fiber optic patch cable
• 2 x Power adaptor AC100~240V DC5V/2A (default US, EU/UK/AU available )
• 1x Manual
