Fiber Splice Sleeve
12 Fiber Fusion protection
GT-12d

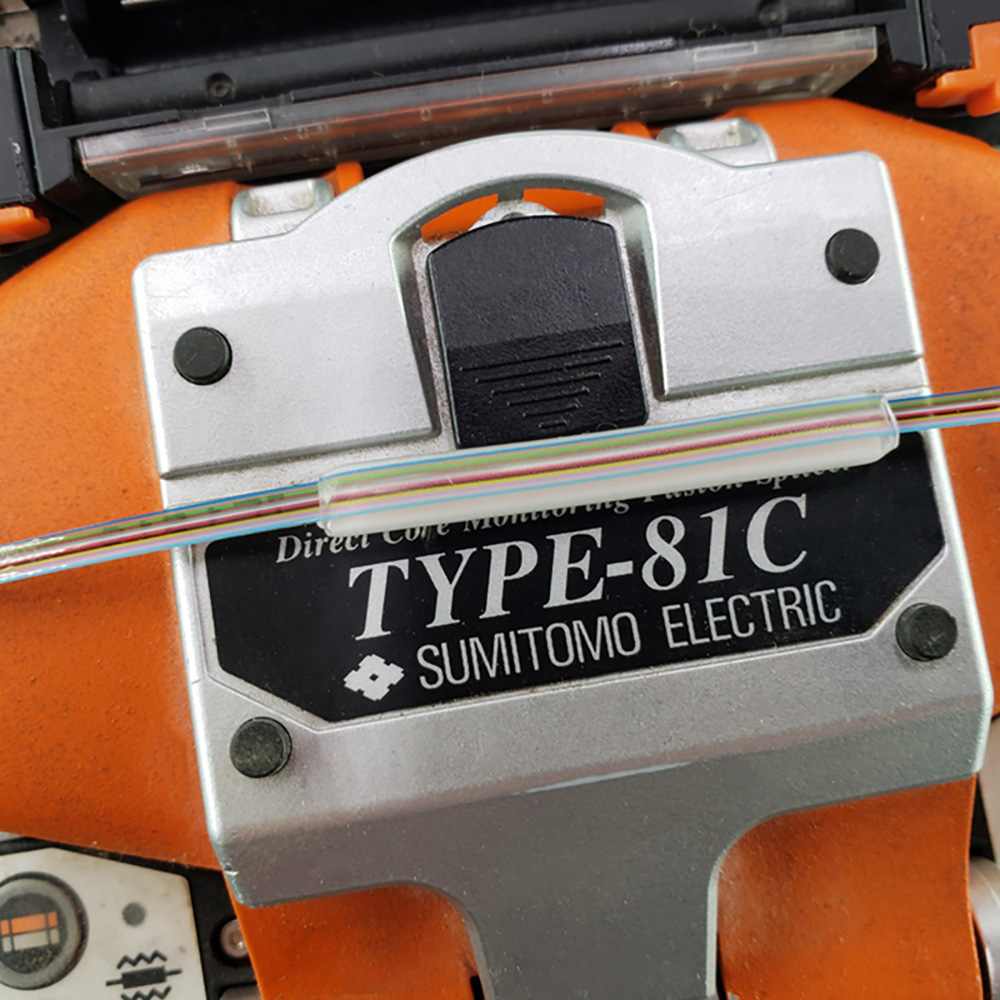

Ribbon Mass Fiber Optic Fusion Splice Sleeve 40mm, D-Shape single Ceramic strength member (double ceramic is optional), Can accommodate up to 12 fibers, 50pcs per bag.ODM&OEM,Custom made. Wholesale.
Feature:
1. Applied in bar fiber-optic cables of the RIBBON type, It can accommodate up to 12 fibers in one sleeve and quickness of assembly (120s).
2. Simple operation, Clear sleeve make it easy to detect splice before shrinkage,reduce the risk of fiber damage during installation.
3. Special design by the cross linking polyolefin melt pipe, and composed of ceramic fiber connection. Protect components, no influence of fiber optical properties.
4. Sealing structure make the splice free from effect of temperature and humidity.
5. High Quality, Simple operation,fast and easy to work with.
Description:
The RIBBON series sleeves are applied in bar fiber-optic cables of the RIBBON type. They enable to secure up to twelve fibers in one sleeve. Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces. The main goals during design phase were: full protection of the fiber optic splices and quickness of assembly. Initial shrinking of the sleeve was taken into account during the production process to reduce the gap between the tubes. This protects the internal tube and ceramic strengthening element from falling out. The sleeves we produce offer full protections the fiber optic splices. They do not cause additional insert losses, and they offer protection against mechanical damage, pollution and weather conditions.
GT series is characterized by ability to secure up to 12 fibers in one shield and quickness of assembly (120s). The sleeve consists of one D-shaped ceramic strengthening element, The standard sleeves are made in clear color.
Specification:
Operating fully recovery temperature:-45 to 100 °C
Minimum installation temperature: 120 °C
Max installation time: 90 seconds
Standard color: Clear
Compliant norms: UL224, MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006
RoHS compliant
Packing: 50pcs packed to one zip-bag (12pcs packed is optional, contact us after order)
1. Applied in bar fiber-optic cables of the RIBBON type, It can accommodate up to 12 fibers in one sleeve and quickness of assembly (120s).
2. Simple operation, Clear sleeve make it easy to detect splice before shrinkage,reduce the risk of fiber damage during installation.
3. Special design by the cross linking polyolefin melt pipe, and composed of ceramic fiber connection. Protect components, no influence of fiber optical properties.
4. Sealing structure make the splice free from effect of temperature and humidity.
5. High Quality, Simple operation,fast and easy to work with.
Description:
The RIBBON series sleeves are applied in bar fiber-optic cables of the RIBBON type. They enable to secure up to twelve fibers in one sleeve. Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces. The main goals during design phase were: full protection of the fiber optic splices and quickness of assembly. Initial shrinking of the sleeve was taken into account during the production process to reduce the gap between the tubes. This protects the internal tube and ceramic strengthening element from falling out. The sleeves we produce offer full protections the fiber optic splices. They do not cause additional insert losses, and they offer protection against mechanical damage, pollution and weather conditions.
GT series is characterized by ability to secure up to 12 fibers in one shield and quickness of assembly (120s). The sleeve consists of one D-shaped ceramic strengthening element, The standard sleeves are made in clear color.
Specification:
Operating fully recovery temperature:-45 to 100 °C
Minimum installation temperature: 120 °C
Max installation time: 90 seconds
Standard color: Clear
Compliant norms: UL224, MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006
RoHS compliant
Packing: 50pcs packed to one zip-bag (12pcs packed is optional, contact us after order)
