Features
● Support SD-SDI (270Mbps), HD-SDI (1.485Gbps) and Full HD 3G-SDI (2.97Gbps) video formats;
●Max cable length (Belden-B1694): SD supports 400m, HD supports 200m, and 3G supports 140m;
●Support SMPTE 292M, SMPTE 259M, SMPTE 424M
● with two independent buffer outputs
● Built-in cable equalizer Equilizer, clock regeneration circuit Reclocker and cable driver Cable Driver;
● With power and SDI signal format indication, it is convenient for users to monitor in real time;

Specification

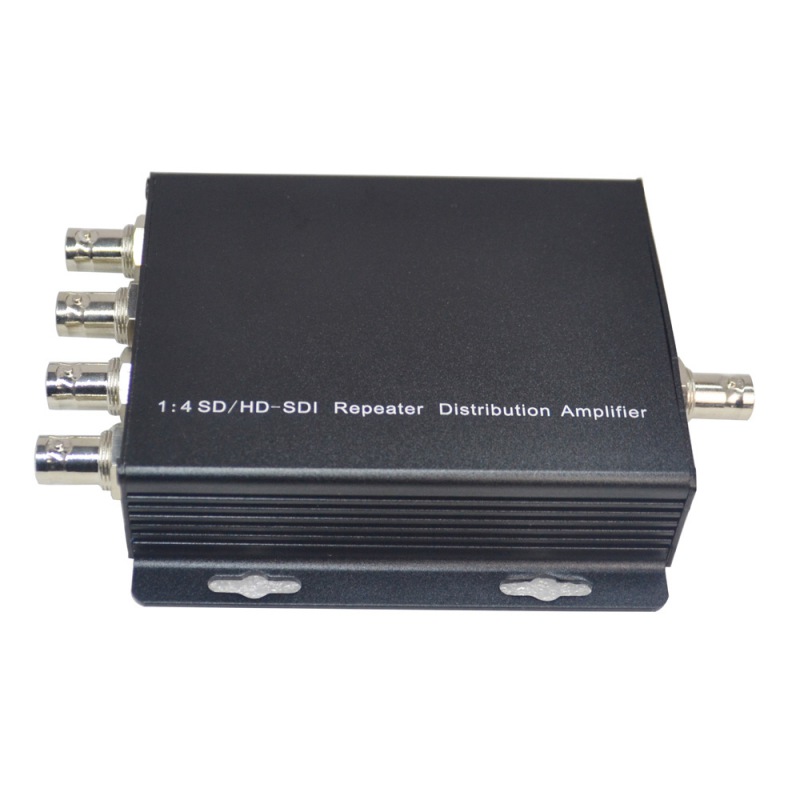

Model    HXT-SDI1x4

SDI Standards    3G-SDI(2.97Gbps), HD-SDI(1.485Gbps), SD-SDI(270Mbps)
HD/SD-SDI Detection    Auto
Data Rates    270 / 1483 / 1485 /2970Mbps
 Video Support    480i,576i,720p at 23.98/24/25/30/50/60
1080i at 50/60,1080p at 24/25/30
1080p at 50/59.94/60
SDI Signal Type    SMPTE-292M, SMPTE-259M, SMPTE-424M
Output Impedance    75 ohms

Max. Distance    Belden 1694A
SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft  ;3G-SDI 140m / 450ft
Audio Support    Yes
Input    1x BNC [SDI]
Output    2x BNC [SDI]
BNC Connector    75 ohms inter-locked socket
Power Consumption    2~4 Watts
Relative Humidity    20~90% RH (no condensation)
Dimension    10x7x2.3cm (LxWxH)
Weight    120g

Package Included:
1 x SDI 1x4 Splitter
1 x power supplier(US,EU,UK,AU optional)
1 x User manual
