Overview:

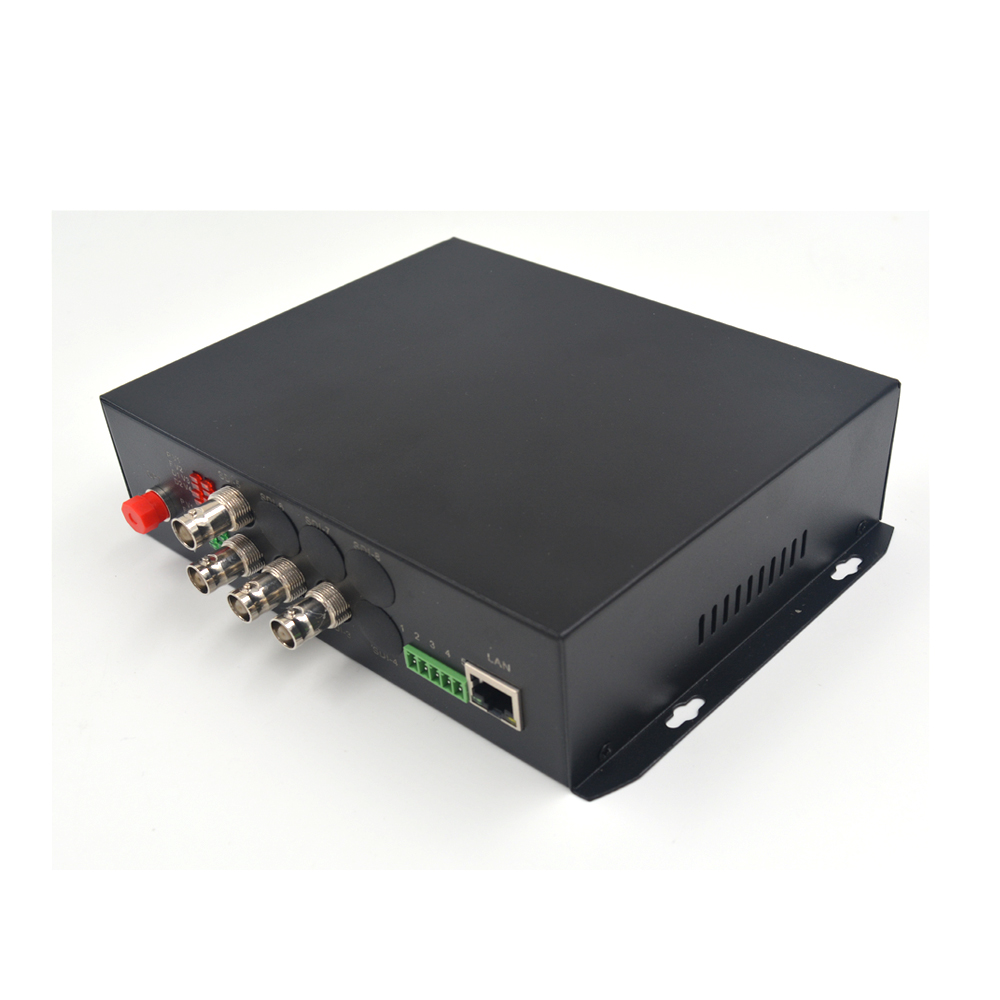

The item is a 4 channels  HD-SDI over single-mode or multimode fiber transmitter and receiver extender kit. This unit provides optical transmission of 4 HD-SDI signal with embedded audio signal and 10/100Mbps ethernet on the transmitter & receiver for monitoring, The system support signals accord with standards of SMPTE-292M HD-SDI and SMPTE-259M HD-SDI, support Signal Bit Rate 1485Mb/s .

In addition, our innovative video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD-SDI signal transport.

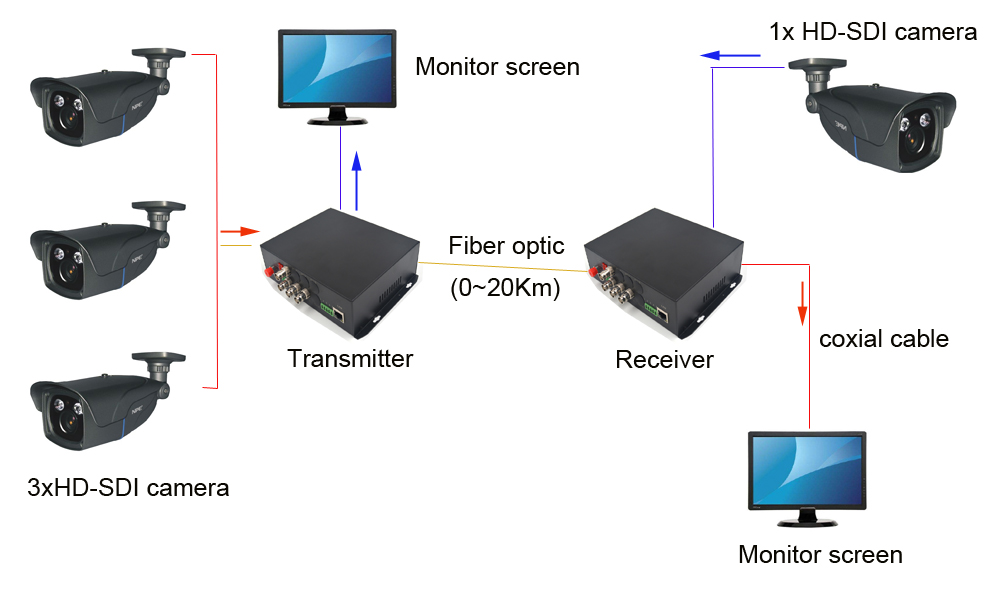

Function:

• 1.    3 x HD-SD  (forward directional, from TX to RX )
• 2.    1 x HD-SD  (reverse directional, from RX to TX )
• 3.    1x 10/100Mbps Ethernet  (RJ45 port)

Specifictions:

1.     Optical interface: FC (SFP simplex LC optional)

2.     10/100Mbps Ethernet ,RJ-45 8P8C interface.

3.     Support 4 channles HD- SDI video over a single-mode fiber or multimode .

4.     Support Signal Bit Rate 1485Mb/s (1.5G)

5.     Support 1080P@30,25,24, 1080I@60,50,720P@60,50,30,25, and other video formats

6.     Single-mode single fiber, transmission distance support S/M:0-20Km, and M/M 0~500m

7.     Single-mode 1310nm/1550nm

8.    Voltage:AC100V~240V,DC5V/2A

9.     Package: carton box

Package Include:

•  1.        1 x 4CH HD-SDI Transmitter
•   2.       1 x 4CH HD -SDI Receiver
•   3.       1 x 3M FC/FC singlemode fiber patch cord
•   4.       2 x Power adaptor AC100~240V DC5V/2A (default US, EU/UK/AU available )
•   5.       1x Manual
