Overview:

The HXT-HD-1SDI-R-E is a HD/SD-SDI over singlemode or multimode fiber transmitter and receiver extender kit. This unit provides optical transmission of one HD/SD-SDI signal with embedded audio signal and has bidirectional RS485 data(revese directional optional) channel for camera control also loop-out connectors on the transmitter & receiver for monitoring. The system support signals accord with standards ofSMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305 and support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability. In addition, our innovative QuestTel video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate from 270 Mbps to 1.5Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD/SD-SDI signal transport.

Function:

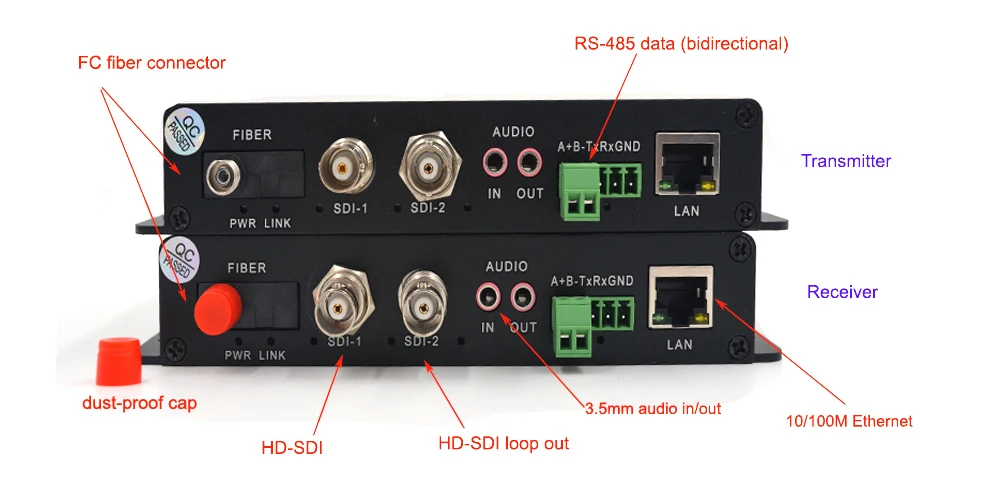

• 1x HD-SDI  in and loop out  (1x bidirectional HD-SDI is optional)
• 1x RS-485 data (bi-directional)
• 1x 10/100M Ethernet
• 1x 3.5mm Audio in and out.

Features:

1. 1.  Support  transmission of one-way high-definition SDI video over a single-mode fiber with FC/FC fiber or a multimode fiber
2. 2.  Support 10/100Mbps ethernet
3. 3.  Support RS-485 data (bidirectional, reverse direction is optional ) , control PTZ .
4. 4.  Support SD SD-SDI (270Mbps) and high-definition HD-SDI (1.485Gbps) (3G-SDI 2.97Gbps is optional, if need, contact us);
5. 5.  Compatiable with 1080P@30 and backward, 1080i@60 and backward
6. 6.  The broadcast signal quality, fully compliant SMPT standard;
7. 7.  The maximum cable length: SD 400m; HD 200M .
8. 8.  Working distance: Single-mode 0-20Km, compatiable with multimode fiber 0~500m.
9. 9.  Wavelength : Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm)
10. 10.  Voltage:AC100V~240V,DC5V/2A
11. 11.  Package:carton box

Package Include:

• 1 x HD-SDI Transmitter
• 1 x HD-SDI Receiver
• 1 x 3m FC/FC singlemode patch cord
• 2 x Power adaptor AC100~240V DC5V/2A (US/EU/UK/AU optional )
• 1x Manual
