Default ship singlemode version(0~20km) , if need multimode version(0~500m), or Dry contact (3 wires terminal block),Contact us.

Features:

1. It supports a maximum resolution of up to 1920*1080P/1080I@60HZ;
2. Support digital signal 19.4Mbps(SD-SDI) & 1.485Gbps(HD-SDI).

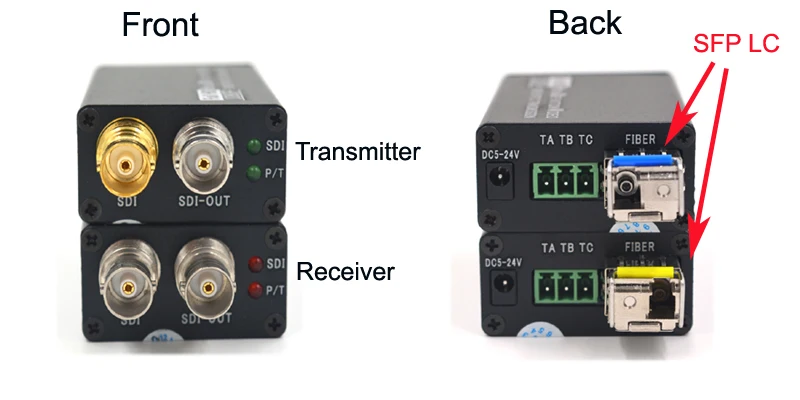

3. Optical interface for the LC port, support hot-swappable
4. No compression transmission, super stable, excellet quality, no black screen splash screen phenomenon
5. Supports Plug and Play.
6. Transmission distance: 0~20Km by single mode.optional :0~500 Meters by multimode
7. Product Size: 110 x 40 x 20mm (include BNC and SFP length)

Overview:

HD multimedia monitoring should be the system, often need to high-definition non-compressed digital audio and video signal source long-distance transmission. But the use of ordinary cable long distance transmission, there will always be poor signal, easily disturbed and so on; while transmission distance is short, can not meet the multimedia information release and other occasions long distance requirements. The use of 3G / HD-SDI-T / R optical transmission 3G / HD-SDI signal, completely solve this problem, the transmission distance of 1-20KM. At the same time, optical transmission with attenuation, frequency bandwidth, strong anti-interference, high security, small size, light weight and other advantages. So in the long-distance transmission and special environment, etc. can not match the advantages. In addition, 3G / HD-SDI equipment in the multimedia system, that is, to save construction costs and the complexity of the alignment, but also to ensure high-quality target possible.

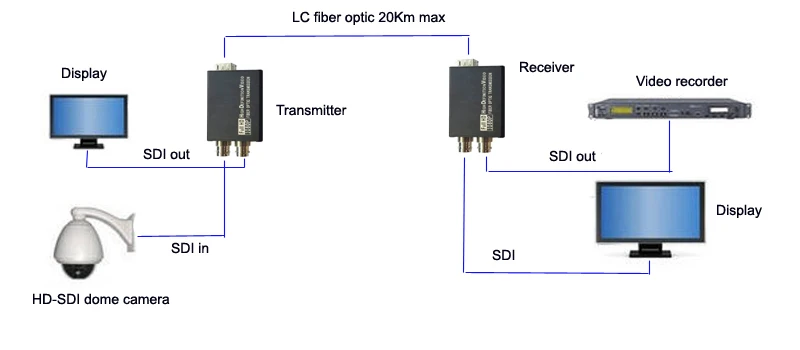

Applicable for :

1. Long-distance transmission of military exercises HD video signal
2. Security monitoring high-definition video signal long-distance transmission
3. HD video signal transmission in large-scale performances
4. A variety of high-definition video should occasion

Package Include:

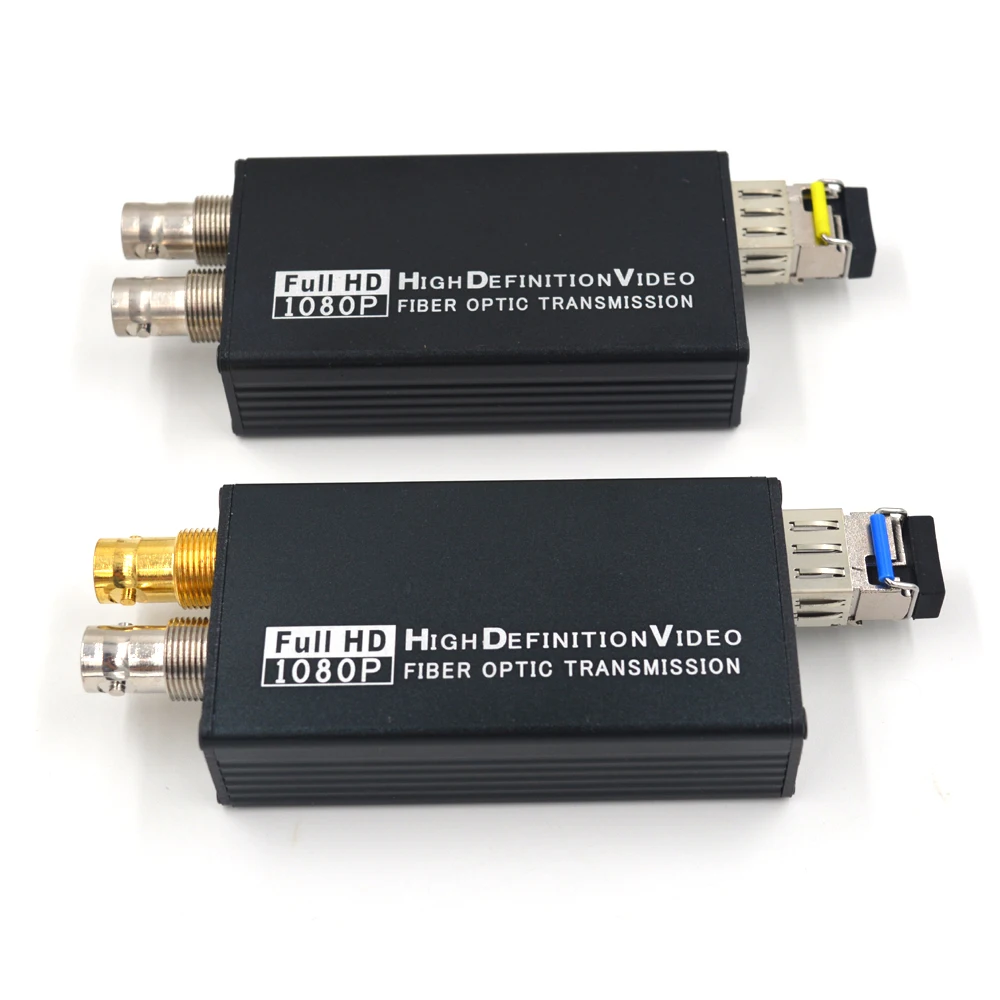

1 x Transmitter

1 x Receiver

2 x LC optical module (simplex LC S/M)

2 x Power adaptor AC100~240V DC5V/2A (default US, EU/UK/AU available )
