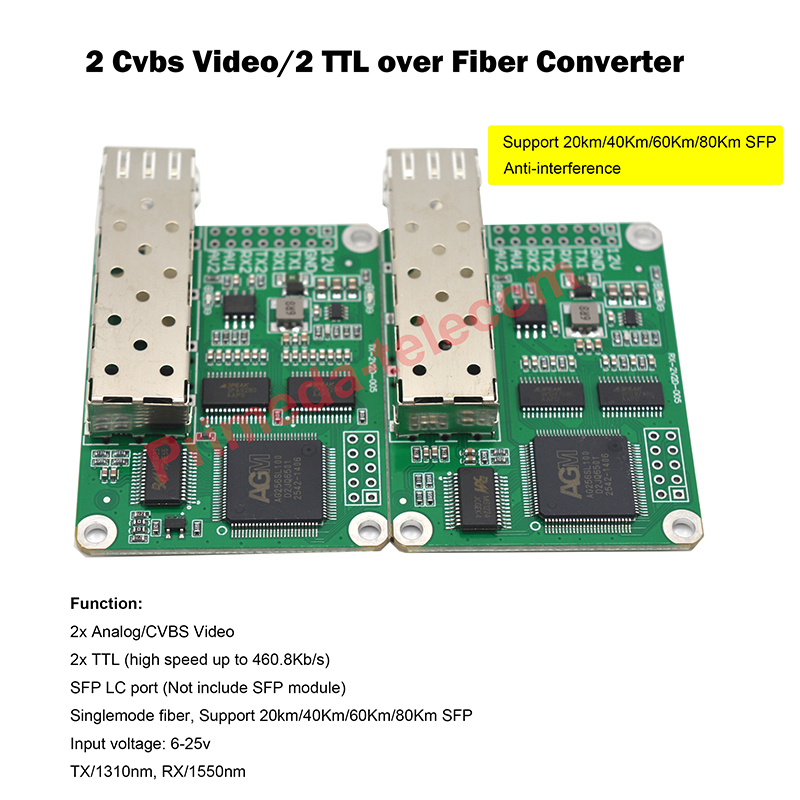

2 CVBS Video 2 TTL over Fiber Converter for FPV Drone Optical controller
PMD-2V1D-2TTL-LC-N
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 2 channel of CVBS analog video and 2TTL level signal over an optical fiber cable for long distance transmission.
Long Transmission distance, singlemode fiber 0~80Km, Support 20km/40Km/60Km/80Km SFP,(Note: our product Not include SFP module)
Long Transmission distance, singlemode fiber 0~80Km, Support 20km/40Km/60Km/80Km SFP,(Note: our product Not include SFP module)
Product description:
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 2 channel of CVBS analog video and 2TTL level signal over an optical fiber cable for long distance transmission.
Long Transmission distance, singlemode fiber 0~80Km, Support 20km/40Km/60Km/80Km SFP,(Note: our product Not include SFP module)
High speed and stable transmission, No interference.
Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
Plug and play, no need to set up.
Function:
2x Analog/CVBS Video
2x TTL (high speed up to 460.8Kb/s)
LC fiber connector (Not include SFP module)
Singlemode single fiber, Support 20km/40Km/60Km/80Km SFP
Input voltage: 6-25v
TX/1310nm, RX/1550nm
Interface : RX/TX/AV/VCC/GND
RX/TX: connect remote control.
AV: video.
VCC: Power supply DV5-26V
GND:ground wire
Video
Video : 2 channel cvbs analog camera
Video Input / Output Impedance : 75ohm ( unbalanced ) ;
Video format compatible PAL, NTSC, SECAM;
Two TTL speed: Up to 460.8Kb/s
Product weight: about 25g/pcs
Package Include:
1 x TX/1310nm
1 x RX/1550nm
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 2 channel of CVBS analog video and 2TTL level signal over an optical fiber cable for long distance transmission.
Long Transmission distance, singlemode fiber 0~80Km, Support 20km/40Km/60Km/80Km SFP,(Note: our product Not include SFP module)
High speed and stable transmission, No interference.
Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
Plug and play, no need to set up.
Function:
2x Analog/CVBS Video
2x TTL (high speed up to 460.8Kb/s)
LC fiber connector (Not include SFP module)
Singlemode single fiber, Support 20km/40Km/60Km/80Km SFP
Input voltage: 6-25v
TX/1310nm, RX/1550nm
Interface : RX/TX/AV/VCC/GND
RX/TX: connect remote control.
AV: video.
VCC: Power supply DV5-26V
GND:ground wire
Video
Video : 2 channel cvbs analog camera
Video Input / Output Impedance : 75ohm ( unbalanced ) ;
Video format compatible PAL, NTSC, SECAM;
Two TTL speed: Up to 460.8Kb/s
Product weight: about 25g/pcs
Package Include:
1 x TX/1310nm
1 x RX/1550nm
