Overview: This product is our newly developed HD SDI Optical, the product uses the most advanced all-digital video and optical fiber transmission technology, digital signal HD-SDI, HD signal formats from 19.4Mbps to 1.485Gbps to 2.97Gbps, the system supports SMPTE292, SMPTE259M, signal SMPTE297M, SMPTE305M, SMPTE310M and DVB-ASI (EN50083-9) .

Features:

Overview:
High-definition multimedia surveillance applications, often need to be HD uncompressed digital audio and video signal source long-distance transmission. But long-distance transmission using conventional cable, there is always the output signal is poor, vulnerable to interference phenomena. Simultaneous transmission distance is short, can not meet the multimedia information requirements for long distance transmission and other occasions, the use of HDSDI-T / R Optical transmission HDSDI signal, completely solve such problems, the transmission distance of 1 m -20 km. Meanwhile, Optical transmission with low attenuation, bandwidth, interference situation, high safety performance, small size, light weight, etc., it has incomparable advantages in terms of long-distance transmission and special environment. In addition, HDSDI equipment in the multimedia system applications, which saves construction costs and the complexity of the line to go, but also to ensure high-quality target possible.

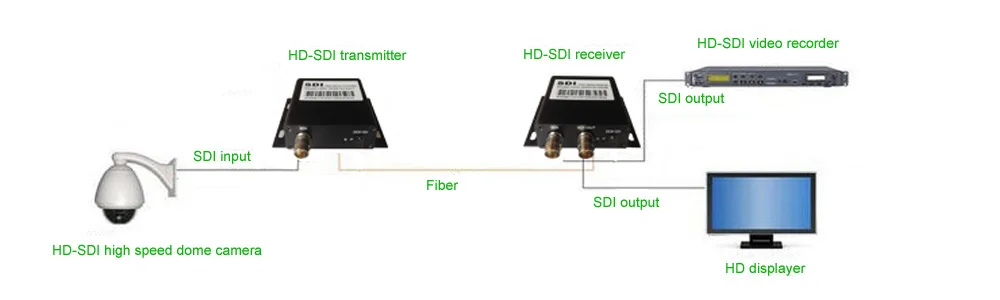

Applicable for :

Parameters:

Optical fiber

a)        1000BASE_LX IEEE802.3z in line with the optical connector specification

b)        Input optical center wavelength: 1310nm

c)        Transmit power: -9.5 ~ -3dBm average optical power @ 1310nm

d)        The light-receiving sensitivity: -21dBm @ 1310nm average optical power

e)        News from the relative intensity: -116 DB / Hz

h)        Return loss: less than 10 dB

i)          Transmission code rate: 240M Hz ~ 1.49G Hz

j)          Transmission distance: 1 m - 300 m multimode fiber

k)        1 m - 20 km single mode fiber

The environmental conditions:

Dimensions (mm): 90Lx88Wx25H

LED indicators instruction:

Transmitter indicators instruction:

Receiver indicators instruction:

Package Include:

1 x Transmitter (without RS485 data)

1 x Receiver (without RS485 data)

2 x Power supply (default US, EU/UK/AU available)
