HDMI Fiber optical Extender with KVM
GSH-HDMI-1F+KVM

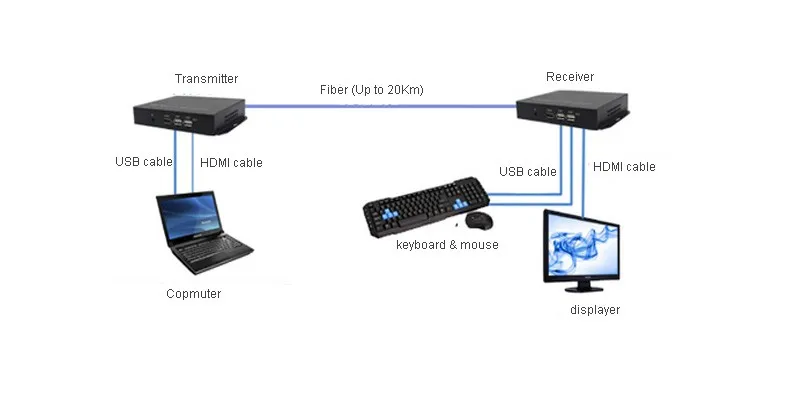

1080P HDMI optical Media converter with 2 KVM USB2.0, HDMI Extender signal (video & audio) over Fiber Up to 20Km
1080P HDMI optical Media converter with 2 KVM USB2.0, Up to 20km
MTBF (Mean Time Between Failure) Over 100,000 hours
Features:
- Transmits HDMI video and audio signals up to 20km over one fiber optic cable;
- Support video resolution up to 1920*1080P@60Hz
- Support TCP/IP;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- No need any drive.
- Simple to install, plug and play.
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
10.2Gbps |
|
|
Resolution range |
Up to 1920X1080P@60Hz |
|
|
Connector |
Female HDMI |
|
|
Impedance |
100Ω |
|
|
Optical fiber |
Interface |
FC connector |
|
Fiber type |
Single Mode |
|
|
Wavelength |
1310nm, 1510nm |
|
|
Transmit power |
≥-9.5dBm |
|
|
|
Transmission distance |
Standard: 0~20km |
|
Other |
Power supply |
The power adapter: DC 12V/1A |
|
Power dissipation |
MAX 5W |
|
|
Temperature |
Operating: -5~ +70°c |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
160*120*25mm |
|
|
The warranty |
2 years free warranty |
|
Package contents:
- 1Pair(Transmitter+Receiver)
- 2 x power DC12V/1A(default ship US, EU/UK/AU is available)
- 1 x User manual
- Online Service
-
