3G/HD SDI Converters
3G SDI Gigabit Ethernet Over Fiber Converters

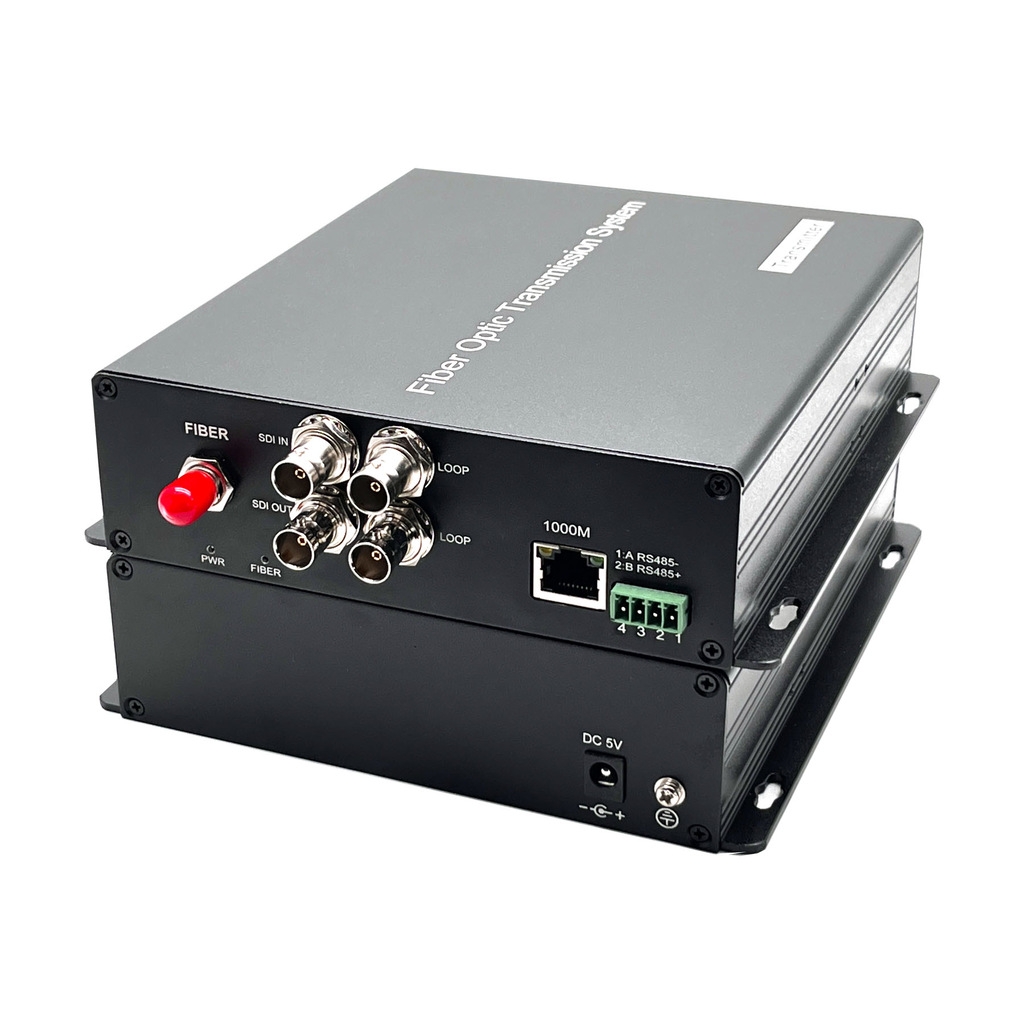

PMD-1Bx3GSDI-GE-1BxRS485-ST
The unit can extend 1 Bi-directional 3G/HD-SDI and 1 Gigabit Ethernet and Bi-directional RS-485 data over a fiber optic to far distance synchronously. Uncompressed real-time audio and video transmission, No delay. Professional Broadcasting High quality design. OEM ,Custom made is acceptable,Contact us if you have special requirement.
Function:
1x Bi-directonal 3G-SDI with Loop out
1x Gigabit Ethernet
1x Bi-directional RS485
ST, Single-mode up to 20Km
AC100-240V, 5V
Features
1. Extend 1 channel Bi-directional uncompressed 3G-SDI, HD-SDI or SD-SDI video over single fiber optic cable. Single-Mode Fiber transmission distances up to 20Km(12.4miles), Compatible with multi-mode Fiber up to 300Meters.
2. Support video resolution 1080P@60,59.94, 50,30,25,24Hz and 1080I@60,50Hz and more.
3. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
4. Support 1 Gigabit Ethernet, the network signal can be through same fiber optic from Transmitter side to Receiver side. it can extend network signal, like PC and IP camera with RJ45 connector.
5. Support 1 Bi-directional RS485 data.
6. With clock recovery, clock shaping
7. Supports embedded digital audio stream
8. 9. Real-Time Video Transmission for Exceptional Quality and Resolution
10. LED Status Provide Rapid Indication of Operating Parameters
11. No EMI or RFI and no ground loops, Support hot swap.
12. No need to set up, plug and play.
SDI Video:
1. Physical Interface: BNC
2. Max Resolution: 1920 x 1080 @ 60Hz
3. Video Input and Output Impedance: 75Ω (unbalanced)
4. Video Input/output Voltage：Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
5. Video Bits Rate: Max 2.97Gb/s
6. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.
Optical Interface: ST (FC/SC is optional)
Data
1. Physical Interface: standard industry block terminal
2. Interface signal: RS485 Bi-direction
3. Baud Rate:0-400Kbps
4. BER < 10 -9
5. Operation Mode: Full duplex / half duplex
Environmental
1. Operating temperature: -20°C ~ +75°C
2. Storage temperature: -40°C ~ +85°C
3. Working humidity: 0% ~ 95% (non-condensing)
4. MTBF:>100,000 hours
Package Include:
1. 3G-SDI Transmitter
2. 3G-SDI Receiver
3. 2 x External Power adapters (US/EU/UK/AU standard is optional)
4. 1x FREE 3M fiber patch cord
5. 1 x User manual
