USB to Fiber Extender
4 USB3.0 Extender over Fiber optic
PMD-4USB3.0-LC
The USB3.0 Extender can extend 4 channel of SuperSpeed USB3.0 to a remote location over 1 core or 2 core fiber optic cable, Transmission distance up to 250 Meters (820FT) by single-mode fiber cable. Multimode 150M version is optional. OEM, Custom made according to client special requirement is acceptable ,Contact us if needed.
Not backwards compatible with USB 2.0 and USB 1.1.
Not backwards compatible with USB 2.0 and USB 1.1.
Default ship singlemode 250M version , if need Multimode version (up to 150meters by OM3), we can custom made ,please contact us before order.
Overview:

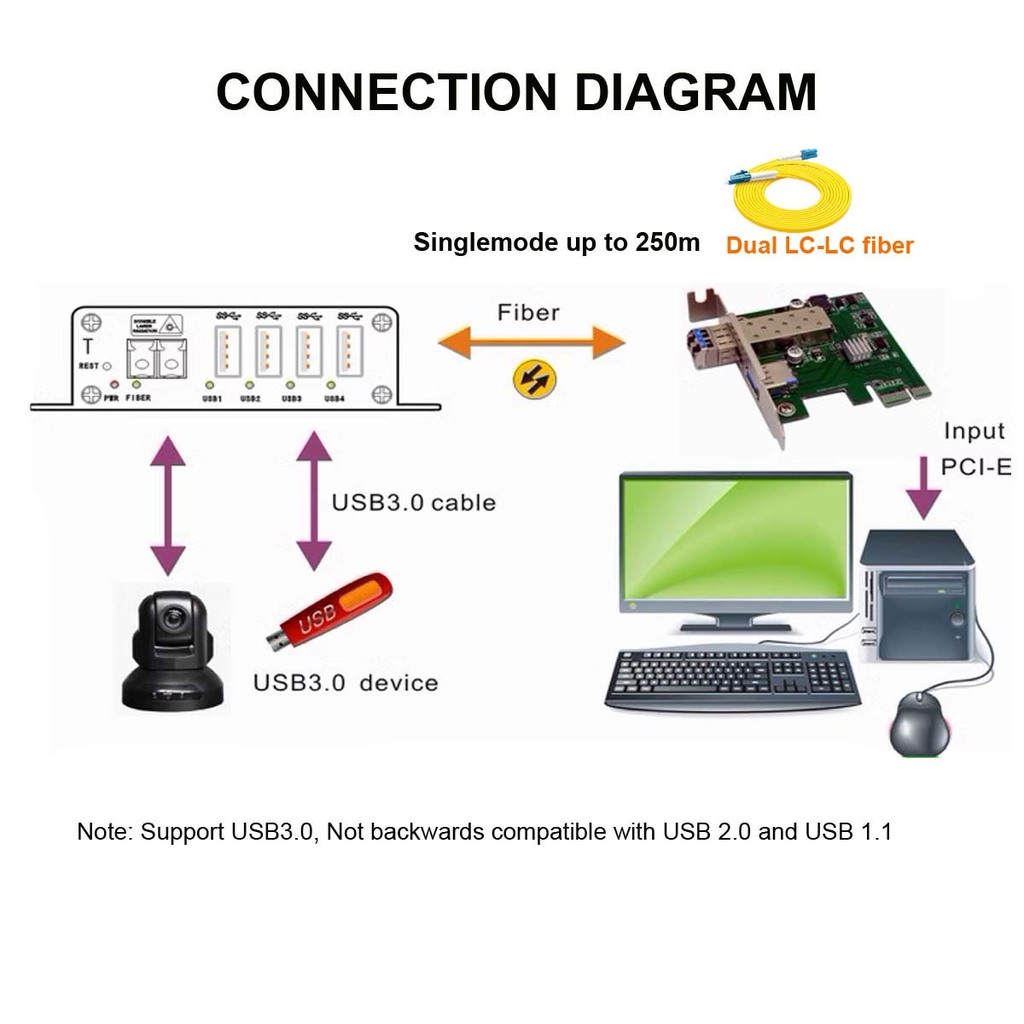

1. The USB3.0 Extender can extend SuperSpeed USB3.0 to a remote location over 1 core or 2 core fiber optic cable, Transmission distance up to 250 Meters (820FT) by single-mode fiber cable.
2. It can extend high bandwidth USB 3.0 webcams and storage devices, be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities , Kinect devices etc.
Product feature:
Opion 1 (4port, S/M, Single LC port):

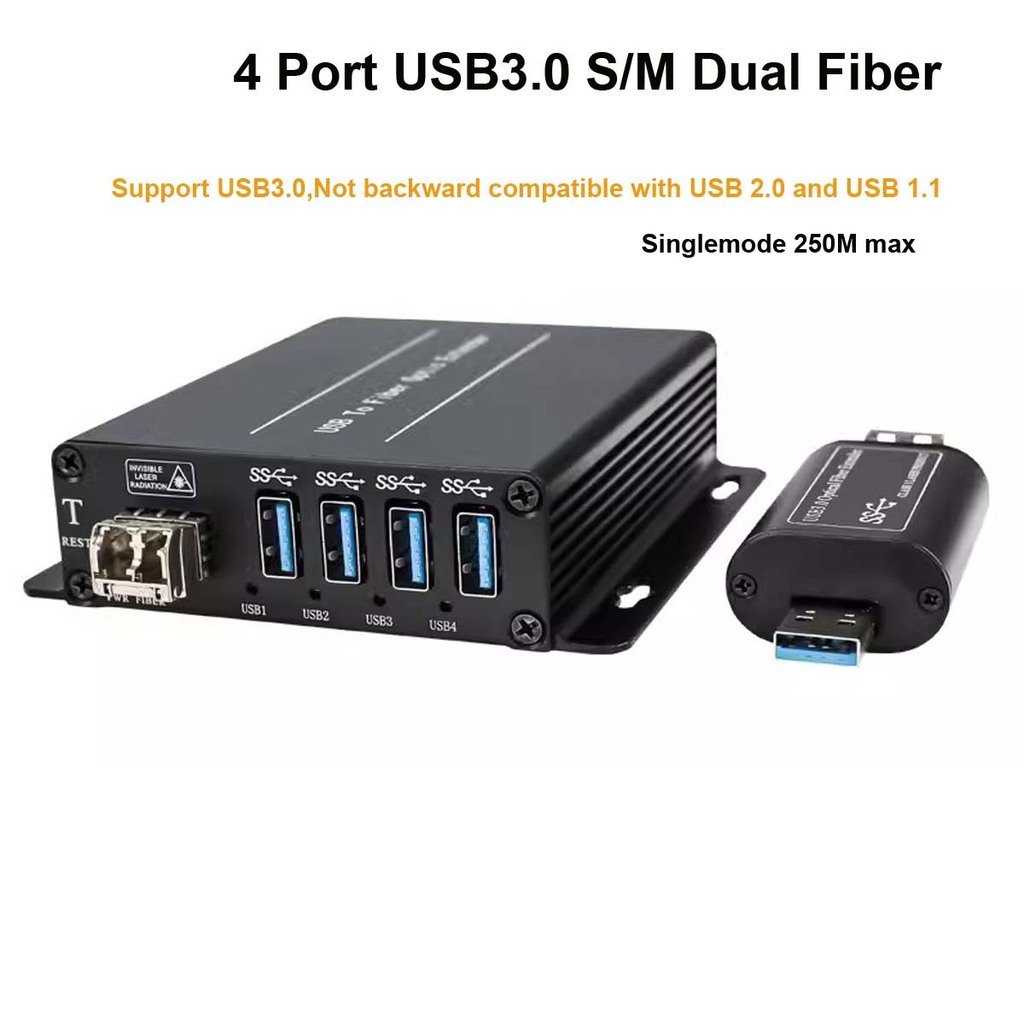

Opion 2 (4port, S/M, Dual LC port):
Opion 3 (4port, S/M, Single LC port, PCI-E type):
Opion 4 (4port, S/M, Dual LC port, PCI-E type):
Specification:
1. Fiber connector: LC (Single core or dual core is optional)
2. Case Material: Aluminum
3. Wavelength: 1310nm/1270/1330nm
4. Working voltage: AC100-240V, DC5~12V
5. Power adaptor: Standard US/EU/AU/UK is optional.
6. Transmitter power consumption: <10W
7. Receiver power consumption: <5W
8. Working temperature: 0℃-50℃
9. Storage temperature: -40-85℃
10. Humidity: 0-95% (non-condensing).
TIP：
After fiber is connected, the fiber indicator is on, otherwise off. After the USB device is inserted, the USB indicator will be on, otherwise off. If the host PC does not recognize the device, you can carry out the following operations:
1. Press the REST key of transmitter（client-side）5 seconds, restart the device.
2. Connect another USB3.0 interface of host PC.
3. Uninstall the "USB3.0 hub" in the device manager, re-connect.
When the device is working, do not plug USB3.0 and fiber cable, so as to avoid the equipment does not work properly.
Package contents:
1x USB3.0 Transmitter
1x USB3.0 Receiver
2 x External Power adapters
1 x User manual
Overview:
1. The USB3.0 Extender can extend SuperSpeed USB3.0 to a remote location over 1 core or 2 core fiber optic cable, Transmission distance up to 250 Meters (820FT) by single-mode fiber cable.
2. It can extend high bandwidth USB 3.0 webcams and storage devices, be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities , Kinect devices etc.
Product feature:
1. Max Transmission extension distance 250m (820FT) by single or dual single-mode fiber cable. (Multimode 150M by OM3 version is optional, contact us if needed)
2. Single/dual LC fiber connecter, with SFP module.
3. Support USB3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A connector.
4. Not backwards compatible with USB 2.0 and USB 1.1
5. Compliant with Windows 8, Windows 8.1, Windows 10, full version of the LINUX or UNIX operation systems
6. No driver needed, support plug and play
Opion 1 (4port, S/M, Single LC port):
Opion 2 (4port, S/M, Dual LC port):
Opion 3 (4port, S/M, Single LC port, PCI-E type):
Opion 4 (4port, S/M, Dual LC port, PCI-E type):
Specification:
1. Fiber connector: LC (Single core or dual core is optional)
2. Case Material: Aluminum
3. Wavelength: 1310nm/1270/1330nm
4. Working voltage: AC100-240V, DC5~12V
5. Power adaptor: Standard US/EU/AU/UK is optional.
6. Transmitter power consumption: <10W
7. Receiver power consumption: <5W
8. Working temperature: 0℃-50℃
9. Storage temperature: -40-85℃
10. Humidity: 0-95% (non-condensing).
TIP：
After fiber is connected, the fiber indicator is on, otherwise off. After the USB device is inserted, the USB indicator will be on, otherwise off. If the host PC does not recognize the device, you can carry out the following operations:
1. Press the REST key of transmitter（client-side）5 seconds, restart the device.
2. Connect another USB3.0 interface of host PC.
3. Uninstall the "USB3.0 hub" in the device manager, re-connect.
When the device is working, do not plug USB3.0 and fiber cable, so as to avoid the equipment does not work properly.
Package contents:
1x USB3.0 Transmitter
1x USB3.0 Receiver
2 x External Power adapters
1 x User manual
