3G/HD SDI Converters
4 3G-SDI RS422 RS232 Fiber Converters

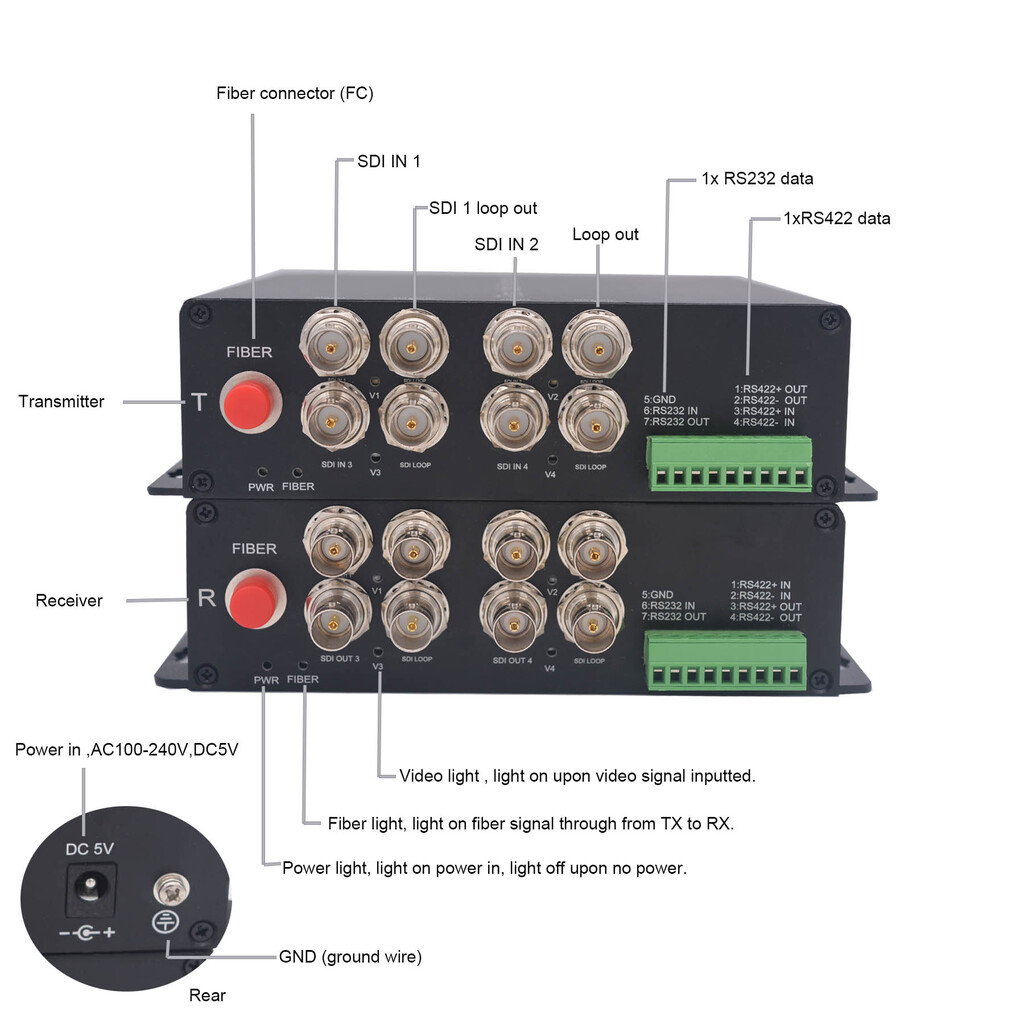

PMD-4x3GSDI-RS422/232-FC
This unit is multifunctional 3G-SDI/RS422/RS232 over fiber converter,
It can extend 4 channels of 3G/HD-SDI over a fiber optic to far end synchronously. Uncompressed transmission, No delay. With additional 1x RS422 bidirectional data and 1x RS232 data, Support SDI loop out for each SDI.
OEM and Custom made is available, Contact us if you have special requirement.
It can extend 4 channels of 3G/HD-SDI over a fiber optic to far end synchronously. Uncompressed transmission, No delay. With additional 1x RS422 bidirectional data and 1x RS232 data, Support SDI loop out for each SDI.
OEM and Custom made is available, Contact us if you have special requirement.
Feature:
1. It extends 4 channels of 3G/HD-SDI over a fiber optic to far end synchronously. Uncompressed transmission, No delay.
2. Suitable for Universal Single-mode and multi-mode. Single-mode reach up to 12.4miles (20Km), Multimode up to 500m.
3. Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz,Backward compatible with 1080P@59.94,50,30,25,24Hz and 1080I@60,50Hz and more. Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards.
4. With 1x RS422 bidirectional data and 1x RS232 data, Support SDI loop out for each SDI, and supports embedded digital audio stream.
5. Broadcasting High grade design, with clock recovery function which can make sure the video image no blinking, whatever you use converter or not. It can reduce signal jitter, it can handle the distortion signal very well. Its quality is far away than ordinary and cheaper units from other brand.
6. Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution. LED Status Provide Rapid Indication of Operating Parameters.
7. Plug and play, No need to set up.
1. It extends 4 channels of 3G/HD-SDI over a fiber optic to far end synchronously. Uncompressed transmission, No delay.
2. Suitable for Universal Single-mode and multi-mode. Single-mode reach up to 12.4miles (20Km), Multimode up to 500m.
3. Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz,Backward compatible with 1080P@59.94,50,30,25,24Hz and 1080I@60,50Hz and more. Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards.
4. With 1x RS422 bidirectional data and 1x RS232 data, Support SDI loop out for each SDI, and supports embedded digital audio stream.
5. Broadcasting High grade design, with clock recovery function which can make sure the video image no blinking, whatever you use converter or not. It can reduce signal jitter, it can handle the distortion signal very well. Its quality is far away than ordinary and cheaper units from other brand.
6. Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution. LED Status Provide Rapid Indication of Operating Parameters.
7. Plug and play, No need to set up.
SDI Video:
1. Physical Interface: BNC
2. Support video resolution 1080P@60,59.94, 50,30,25,24Hz and 1080I@60,50Hz and more
3. Video Input and Output Impedance: 75Ω (unbalanced).
4. Video Input/output Voltage：Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
5. Video Bits Rate: Max 2.97Gb/s.
6. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.
Optical Interface: FC
Electrical & Mechanical :
1. Power supply: AC100-240V,DC5V2A.
2. Product weight (including the outer packaging):2.0Kg/Set.
Data:
1. Physical Interface: standard industry block terminal.
2. Interface signal: 1x RS422.
3. Interface signal: 1x RS232.
Environmental:
1. Operating temperature: -20°C ~ +75°C
2. Storage temperature: -40°C ~ +85°C
3. Working humidity: 0% ~ 95% (non-condensing)
4. MTBF:>100,000 hours
Package Include:
1 x 3G-SDI Transmitter
1 x 3G-SDI Receiver
2x Power supply adapters (US standard)
1 x FREE 3M FC-FC fiber patch cord
1x User Manual
