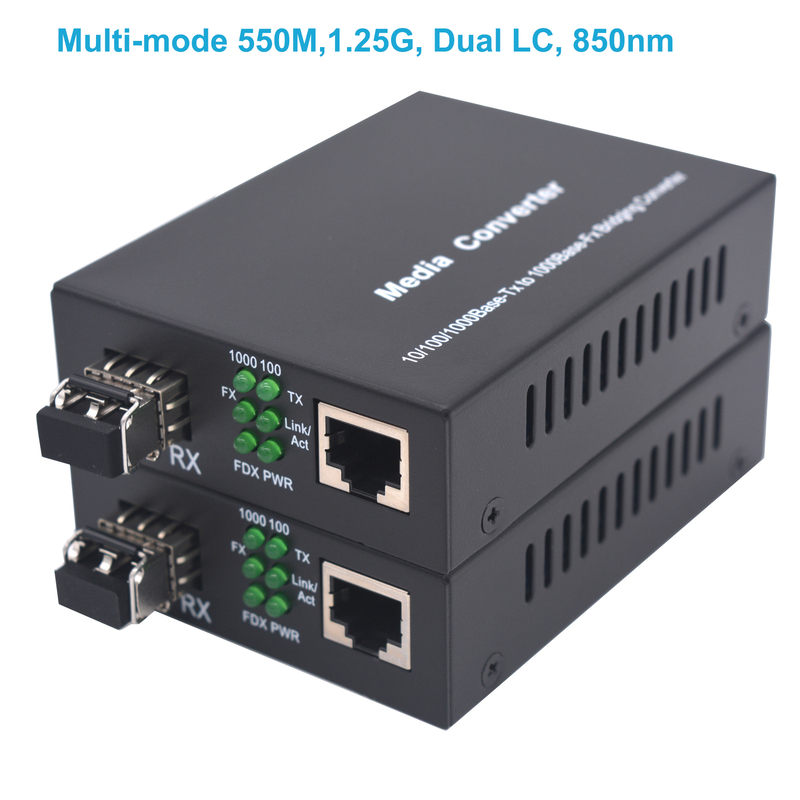

Feature:

1. Fiber Port: 550M SFP transceiver included (1.25G, multimode, Wavelength 850nm).
2. Fiber Type: SFP MMF, Dual LC. Transmission distance: up to 550Meters.
3. RJ-45 Port: 1 port 10M/100M/1000Mbps, full/half duplex auto-negotiation, MDI/MDIX auto-crossover. Cable Type: UTP/STP Cat.5e for 100 meters.
4. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
5. Plug and Play: Simply plug in optical port and RJ45 port, and it will work immediately.







Specification:
1.Dimensions:95x72x27mm (LxWxH)
2.Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3.Power Dissipation ≤3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating temperature: 0°C to 60°C.
5. Storage temperature: -20°C to 70°C.Humidity:5% to 90% RH.

Product content:
2x Gigabit Ethernet Fiber Media Converter.
2x SFP LC Multi-Mode module (850nm, up to 500M).
2x External Power Adapter (US/EU/UK/AU standard is optional), Output voltage:5V DC/1A, UL Certified.
1x Product Manual.

LED Indicators
1.FP:Light on when fiber speed is 1000Mbps,else light off
2.TP:Light on when TP speed is 1000Mbps, else light off
3.Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5. PWR: Light on when DC power on, else light off.
