Features

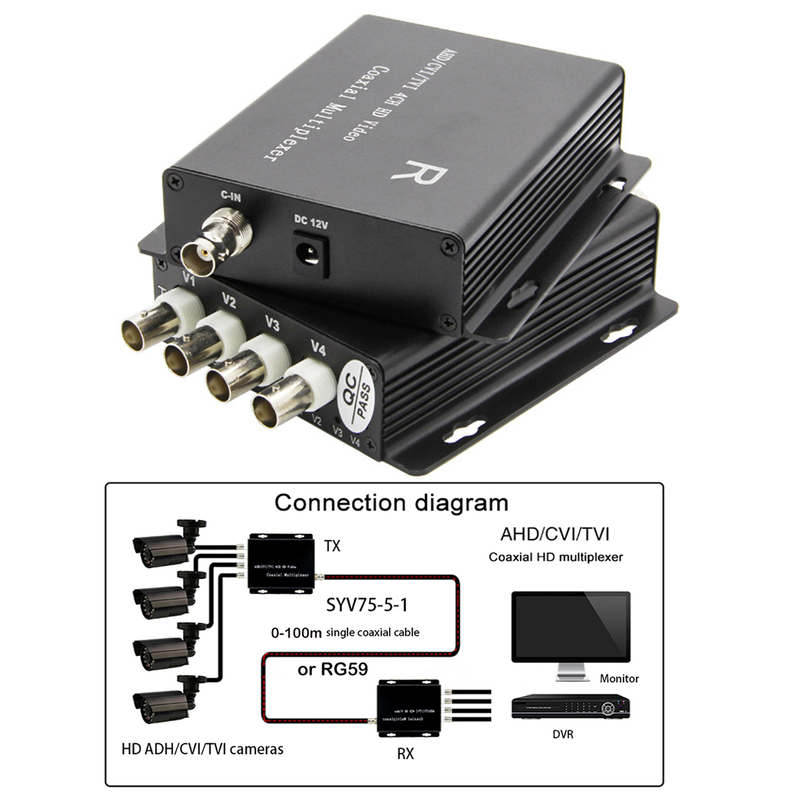

1. It can extend 4 channel HD Video over one coaxial cable. Long distance transmission up to 100meters.
2. Compatible with 1080p,960p,720p AHD/ CVI /TVI /CVBS signals
3. Frequency division multiplexing, with all video and data transmission real-time and all images high-definition and non-delay;
4. One coaxial cable, no extra cable, which save infrastructure cost (cost saving 25~30%);
5. Maintaining high quality video & anti-interference immunity;
6. Perfectly support coaxial video line RG59 cable etc.
7. Plug and play, no need to set up.







Specification:

1. Power supply: AC100-240V,DC12V1A-2A (US/EU/UK/AU standard plug is optional)
2. Size:143x103x28mm (LxWxH)
3. Weight: 0.6Kg/pair. Not include power adapter.

Please note that:
1. About power supply: This product uses DC12V1A-2A power supply, which is standard without power supply. Also you can choose with power supply.
2 .when using this product, it is forbidden to use (multi-core) coaxial cable or Non pure copper coaxial cable.
3. Twisted pair transmission is not allowed, and only video line transmission is supported.


Package include:

1x Video Multiplexer Transmitter
1x Video Multiplexer Receiver
2x Power supply adapter (US/EU/UK/AU available)
1x Manual.
