3G/HD SDI Converters

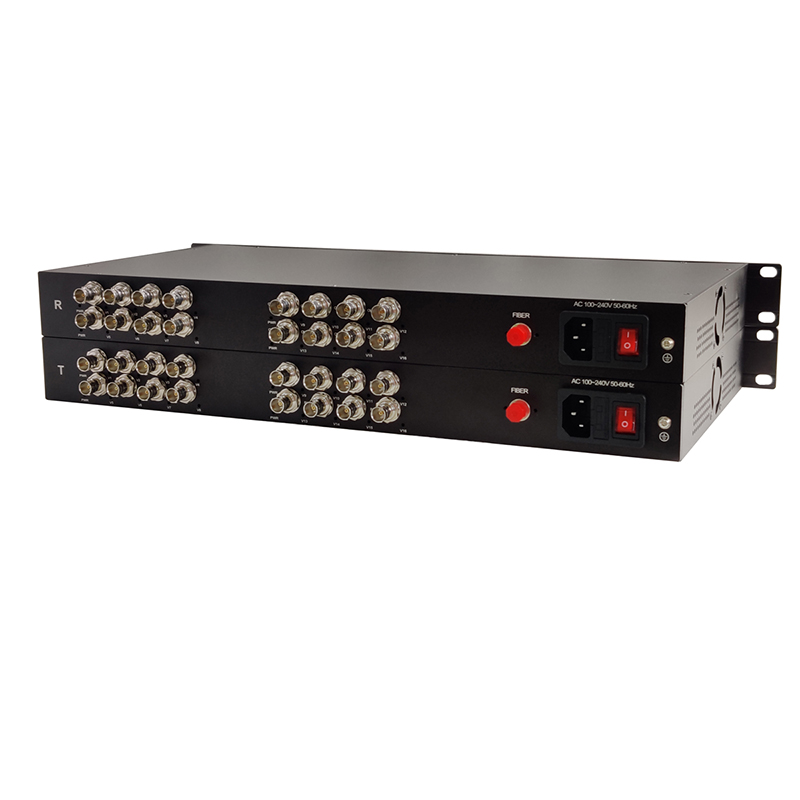

16 port 3G-SDI over Fiber optic converter
PMD-3GSDI-16V-FC
The unit is used to send 16 channels of 3G-SDI or HD-SDI camera through a fiber optic to far end, Single-Mode Fiber Support for Distances up to 20Km(12.4miles), Compatible with multimode Fiber 0-300Meters. uncompressed,lossless video/audio transmission. Broadcast qualtity. Custom made is avaiable.
Features
1. the SDI system is used to extend 16 channels of 3G-SDI or HD-SDI camera through a fiber optic to far end, Single-Mode Fiber Support for Distances up to 20Km(12.4miles), Compatible with multimode Fiber 0-300Meters.
2. Support video resolution 1080P@60,59.94, 30,25,24Hz and 1080I@60,50Hz and more.
3. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
4. With clock recovery, clock shaping
5. Pass Pathological (extreme harsh environment) test
6. Supports embedded digital audio stream
7. Single-Mode Fiber Support for Distances up to 20Km(12.4miles), Compatible with multimode Fiber 0-300Meters
8. Real-Time Video Transmission for Exceptional Quality and Resolution
9. LED Status Provide Rapid Indication of Operating Parameters
10. No EMI or RFI and no ground loops, Support hot swap
11. Plug and play, no need to set up.
Package Include:
1. 3G-SDI Transmitter
2. 3G-SDI Receiver
3. 2 x External Power supply adapters (US/EU/UK/AU plug is optional)
4. 1 x User manual
1. the SDI system is used to extend 16 channels of 3G-SDI or HD-SDI camera through a fiber optic to far end, Single-Mode Fiber Support for Distances up to 20Km(12.4miles), Compatible with multimode Fiber 0-300Meters.
2. Support video resolution 1080P@60,59.94, 30,25,24Hz and 1080I@60,50Hz and more.
3. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
4. With clock recovery, clock shaping
5. Pass Pathological (extreme harsh environment) test
6. Supports embedded digital audio stream
7. Single-Mode Fiber Support for Distances up to 20Km(12.4miles), Compatible with multimode Fiber 0-300Meters
8. Real-Time Video Transmission for Exceptional Quality and Resolution
9. LED Status Provide Rapid Indication of Operating Parameters
10. No EMI or RFI and no ground loops, Support hot swap
11. Plug and play, no need to set up.
Package Include:
1. 3G-SDI Transmitter
2. 3G-SDI Receiver
3. 2 x External Power supply adapters (US/EU/UK/AU plug is optional)
4. 1 x User manual
