Features

1. Compatible with NTSC, PAL, and SECAM CCTV camera systems.
2. Optical interface: FC.
3. Suitable fiber: 62.5/125u Multimode， single fiber.
3. Long working distance: multimode up to 2Km.
4. Support RS-485 data for remote control PTZ.
5. Power supply and fiber/video pass state indication, which can monitor the operation condition of system .
6. Industry-grade of operating temperature from -10 degree to 75 degree , which is applied to the different working environment.
7. The usual time between failures (MTBF) greater than 100,000 hours.
8. Plug and play, easy to use.


Note: this unit is without 10/100Mbps ehternet function.

Optional function (if need, contact us.):
1.With additional 10/100Mbps ethernet.
2. with additional 16 channels of audio.

Specification

Optical:

1. Optic fiber: 62.5/125u Multimode
2. Optical connector: FC
3. Distance: 0- 2KM
4. Single(Simplex) Fiber


Video:

1. Number of Channels: 16
2. Input/output impedance: BNC 75 ohm (unbalance)
3. Video bandwidth: 5HZ to 8MHZ
4. Standard video input/output voltage: 1.0Vp-p
5. Video voltage range: 0.6 to 2.0Vp-p
6. Differential Gain: < +/- 1.5%
7. Differential Phase: < +/- 1%
8. SNR: >60dB (8 bit)
9. Connector: BNC
10. Operating Voltage: DC 5V
11. Operating Temperature : -10 degree C to +75 degree C
12. Storing Temperature : -40 degree C to +85degree C
13. Humidity: 0 to 95% Non-condensing
14. MTBF: >= 100000Hours

Data:

1. RS-485 (reverse direction,PTZ cameras controllable)
2. Transfer Rate : 400Kbps
3. Error rate : less than 10 square minus 9
……………………………………………………………………………………………………………………..

Packing Contents

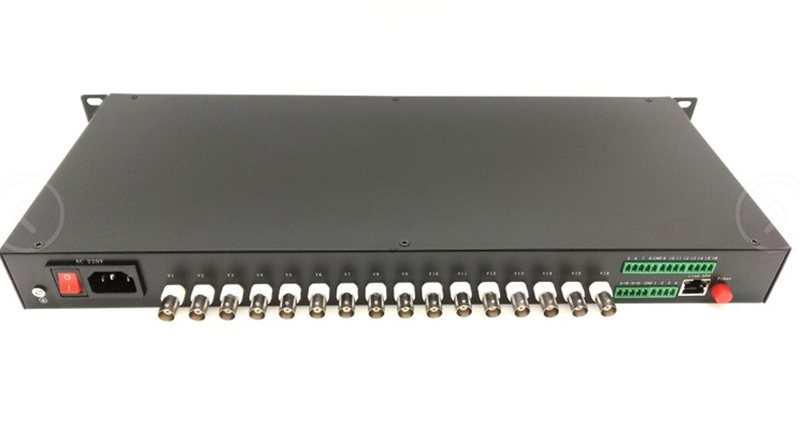

1 x 16 ch Video Fiber Media Converter Transmitter
1 x 16 ch Video Fiber Media Converter Receiver
2 x Power Supply (default US, EU/AU/UK Available)
