Overview:
the Optical Fiber Identifier (Live Fiber Detector) is an essential instrument for the installation and maintenance of optical fiber projects. It can easily detect any spot of SM fiber cables. Through inserting a 1310 or 1550 modulated signal into the fiber, it is used to indicate the direction of the transmitting signals, find and locate the specific fiber without interrupting the normal work during the installation, cabling and maintenance.


Specification:

Type	PMD-TM301A	PMD-TM301B
Identified Wavelength range (nm)	800~1700nm
Detector	InGaAs
Identified Signal Type	CW、270Hz、1kHz、2kHz
LED	Optical Power
Detection sensitivity	-40dBm
Adapter Type	￠0.25 to test bare fiber , ￠0.9 ribbon, ￠2.0/3.0 pigtail
Insertion Loss	￠0.25~￠ 0.9： 0.1dB
	￠2.0~￠2.5：  0.5dB
	￠2.5~￠3.0：  1.0 dB
Signal Direction	Left & Right LED
Power Supply	AAA 1.5V (2pcs batteries)
Operating Temperature (c )	-10~50
Storage Temperature(c )	-20~70
Weight (g)	210

Applications:
1. Telecommunications engineering.
2. Optical Fiber CATV.
3. Generic cabling system.
4. Production and research of optical components.

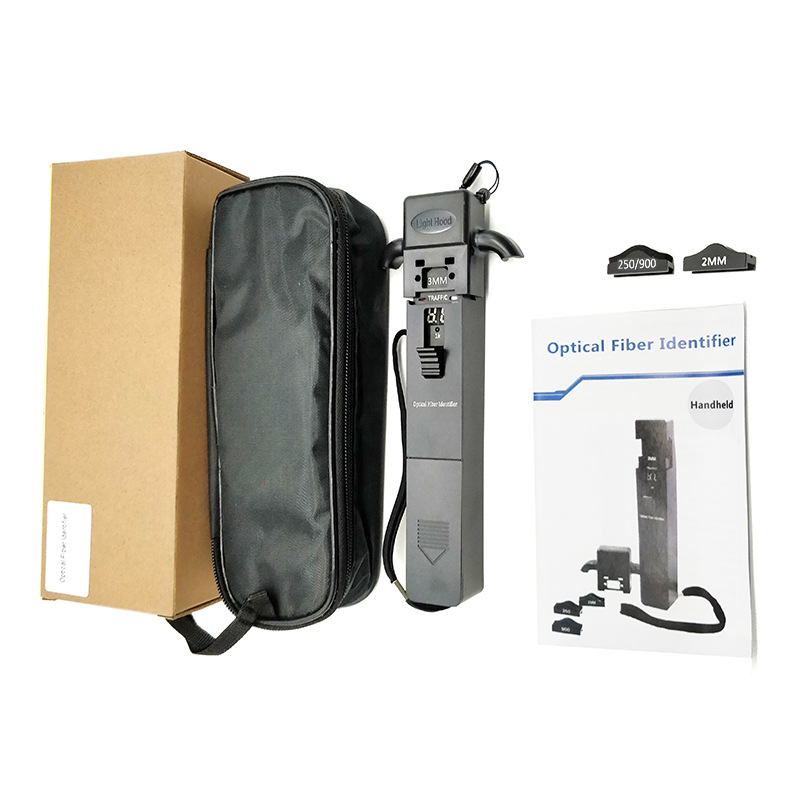

Detailed Pictures
