Fiber Power Meter

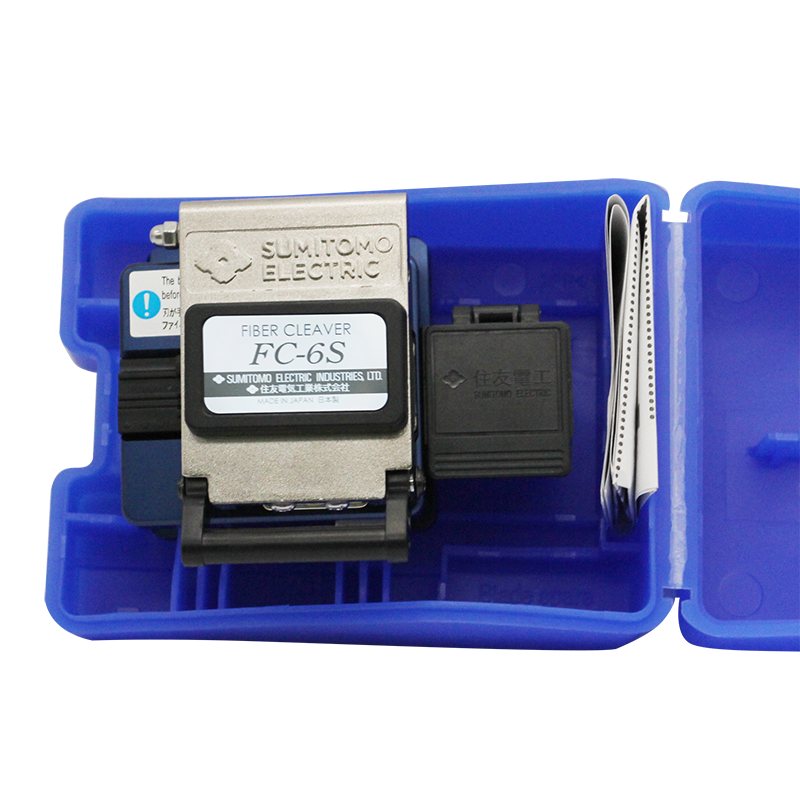

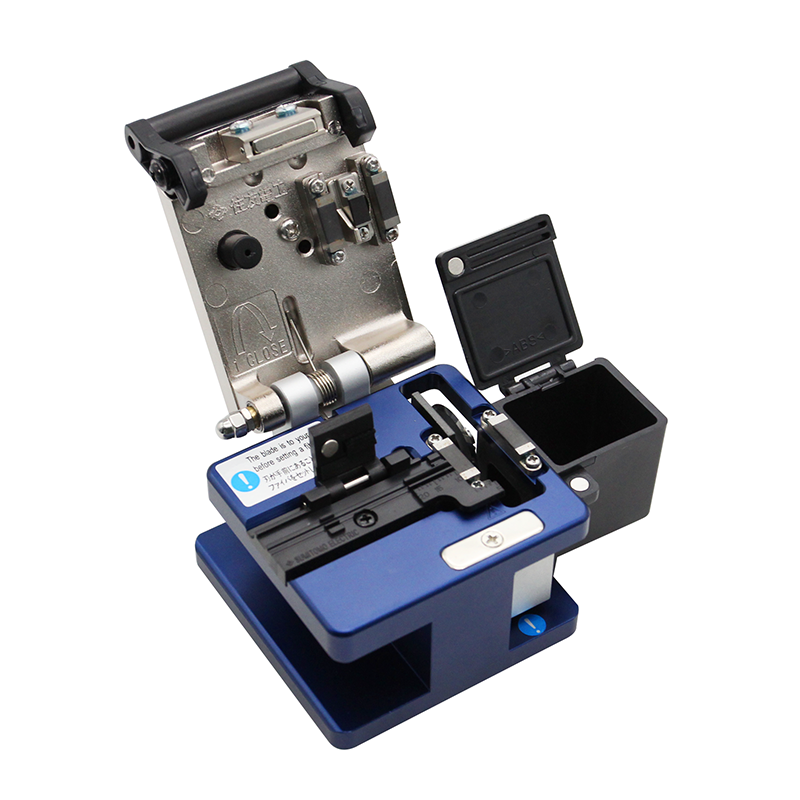

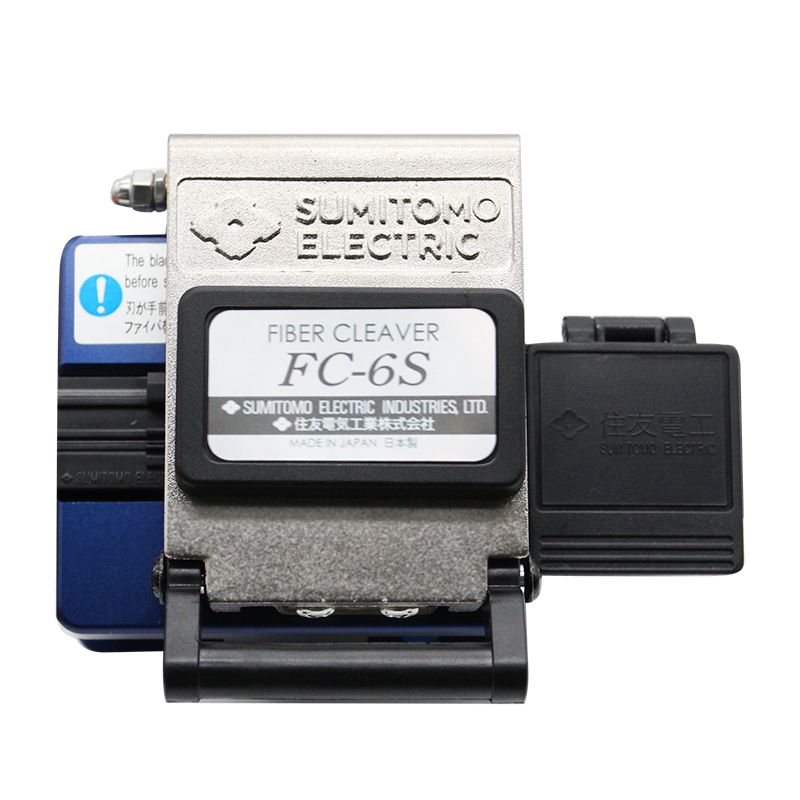

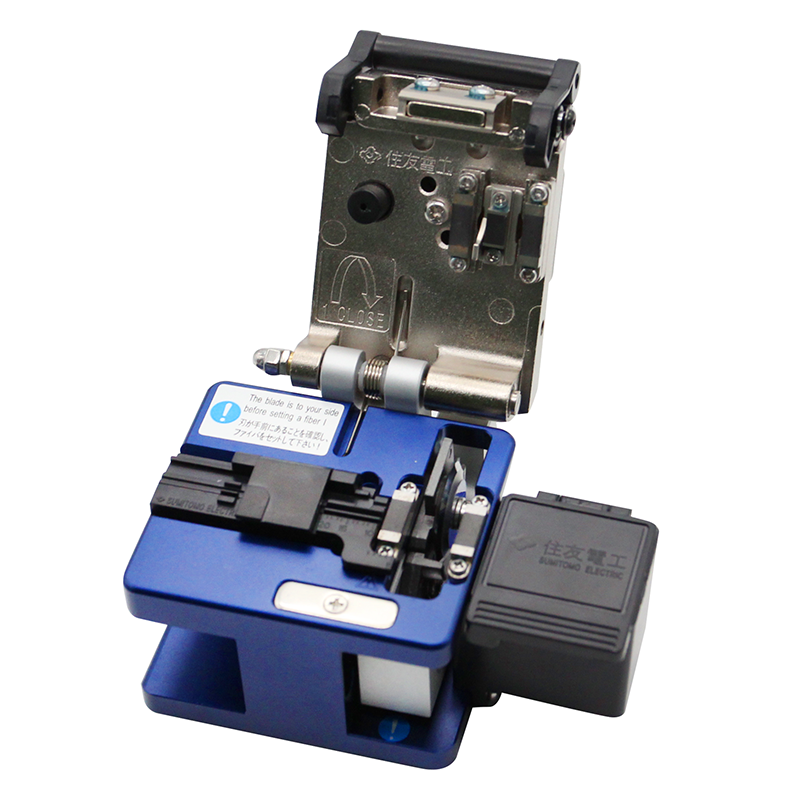

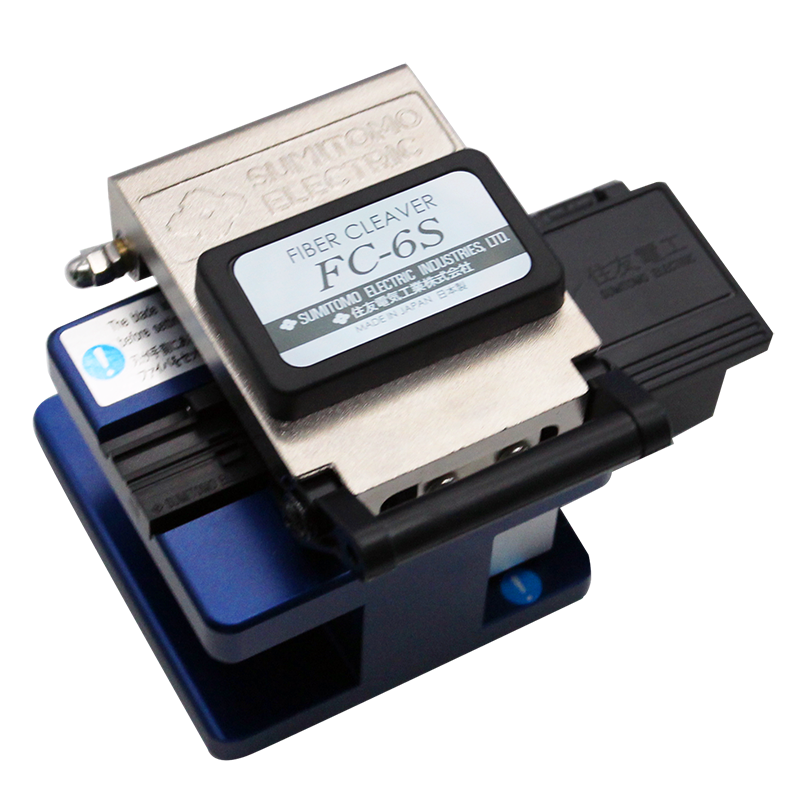

FC-6S Fiber Cleaver
FC-6S
Description:
The FC-6S high precision cleaver is designed for field use alongside the splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable
and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.
The FC-6S high precision cleaver is designed for field use alongside the splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable
and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.
Specification
| Model | FC-6M | FC-6M-C | FC-6S | FC-6S-C | |
| Applicable Fiber | Fiber diameter | 125um | |||
| Fiber count /size | Single fiber (0.25 & 0.9mm) and up to 12-fiber ribbon |
Single fiber (0.25 & 0.9mm) |
|||
| Cleave length | 10mm | 9 ~16mm (0.25) 10~16mm (0.9 ) |
|||
| Typical cleave angle | 0.5° | ||||
| Dimensions / Weight | 63(W) *76(D) * 63(H)mm / 430g (FC-6M/FC-6S) 100(W) *81(D) * 63(H)mm / 480g (FC-6M-C/FC-6S-C) |
||||
| Blade life | 36,000fibers (1,000fibers * 12 edge positions * 3-step edge height) |
||||
| Option | Adapter for single fiber : AP-FC6M (Standard installation with the FC-6S/FC-6S-C) Offcut collector : CU-FC6 (Standard installation with the FC-6M-C/FC-6S-C) Blade replacement : FCP-20BL |
||||
