Features:

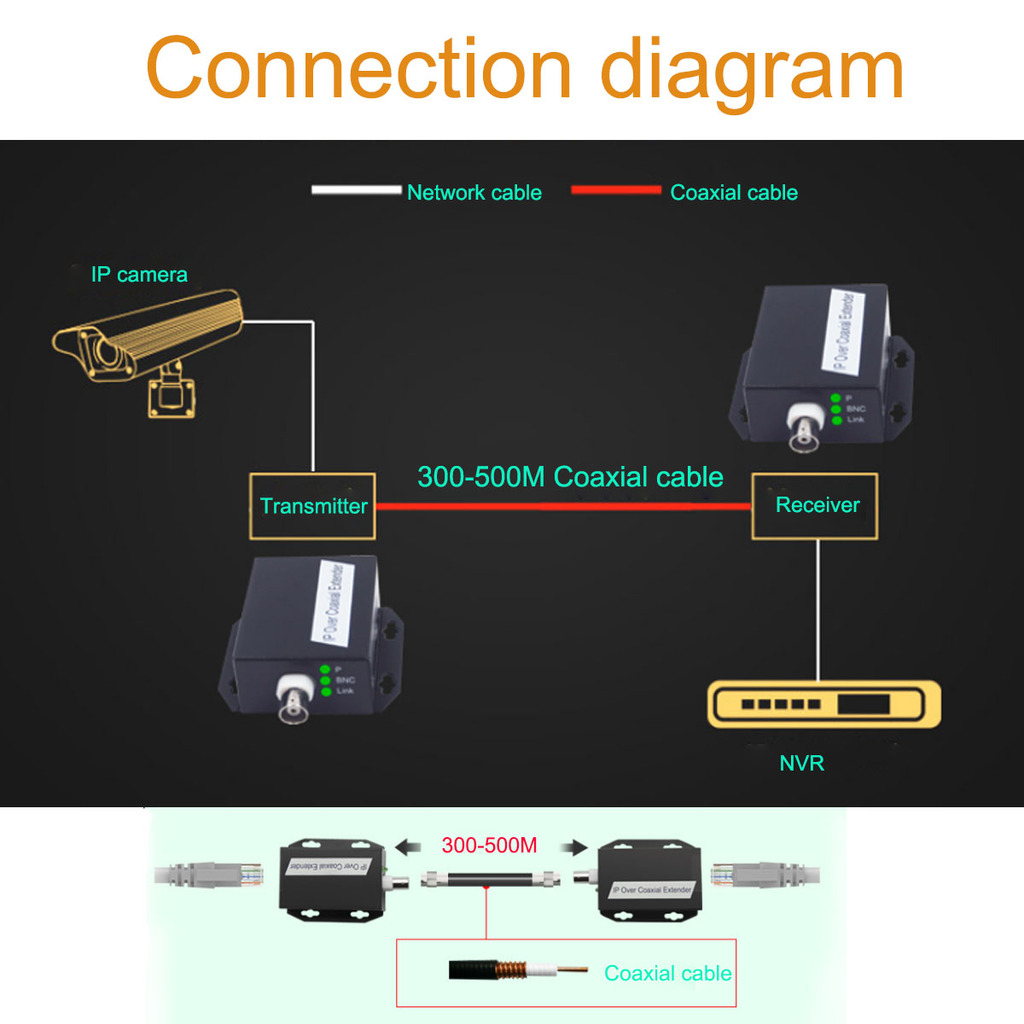

1. Extend IP Network signal over a Coax cable, it can change old analog monitoring system / elevator monitoring to ethernet, no need re-cabling.
2. Support 720P, 960P, 1080P HD IP Network Cameras
3. Transmission distance: 0-300meters by ordinary coax cable, Up to 500meters by high quality coax cable.
4. Compact design, Durable Metal. Bilateral heat dissipation. LED lights for monitor easily.
5. Plug and play, easy to use.



Specification:

1. Coaxial, network, power connector: BNC, RJ45, DC plug:DC5.5/2.1mm
2. Size: 90x63x28cm(LxWxH)
3. Type of cable: Coaxial cable
4. Coaxial cable transmission distance: 300-500meters, depend to coax cable’s quality.
5. Power supply supports AC100-240V, DC5-12V input, the DC interface is 5.5*2.1mm.
6. Temperature: -40 to +85℃
7. Relative humidity: 0 to 95% (No cold condensation)
8. Storage temperature: -60 to +100℃

LED lights:
1: P light is always on when power is on.
2: BNC light will always be on after the coaxial cable is connected
3: Link light is always on after the connection, and flashes when there is network data transmission


Packing content:
2 x IP network converter
2x External Power adapter (optional)
