Features:

【Function】Extend 1080P HDMI A/V signals over a Fiber optic cable, with stereo 3.5mm audio. Support Video resolution up to 1920x1080P@60Hz and compatible with backward.

【Universal for Fiber Types】Mainly use with Single-mode fiber optic 0-20Km (12.4miles).it is also compatible with Multimode fiber 0-300meters. Fiber connector: SC.

【Wide Applications】Compact design, Durable Metal. Bilateral heat dissipation. LED lights. Widely used in extending Ultra-HD sources such as Blu-Ray players, game consoles, PCs and other HDMI sources to distant monitors, displays, TVs, and more.

【Why use Fiber Optic】With our HDMI over Fiber Optic extender you can get faster speeds, less signal degradation, longer distance data transfer, better reliability, and more flexibility. Using a fiber optic cable can decrease costs over time because of the durability and reliability of the fiber cables. Fiber optic cables carry a low rate of bit error due to the fiber being highly resistant to electromagnetic interference.

【Plug and Play】Plug and Play, No setup or configuration needed, very easy to use.


Specification:
1.Fiber connector: SC
2.Wavelength: Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm).
3. Support protocol: HDMI1.3, HDCP1.2.
4. The usual time between failures (MTBF) greater than 100,000 hours.
5. Size: 127x90x25mm (LxWxH mm).
6. Power supply: AC100-240V, DC5V2A, US/EU/UK/AU standard plug is available.


LED Indicated lights:
F light: turn on when connect to Fiber optic. turn off when fiber not pass through， fiber broken or have big loss.
D light: turn on/blink when have data transmission pass through from TX to RX. Off mean no HDMI signal pass through.
P light: Power light, Turn on when connect to power. Turn off when no power.

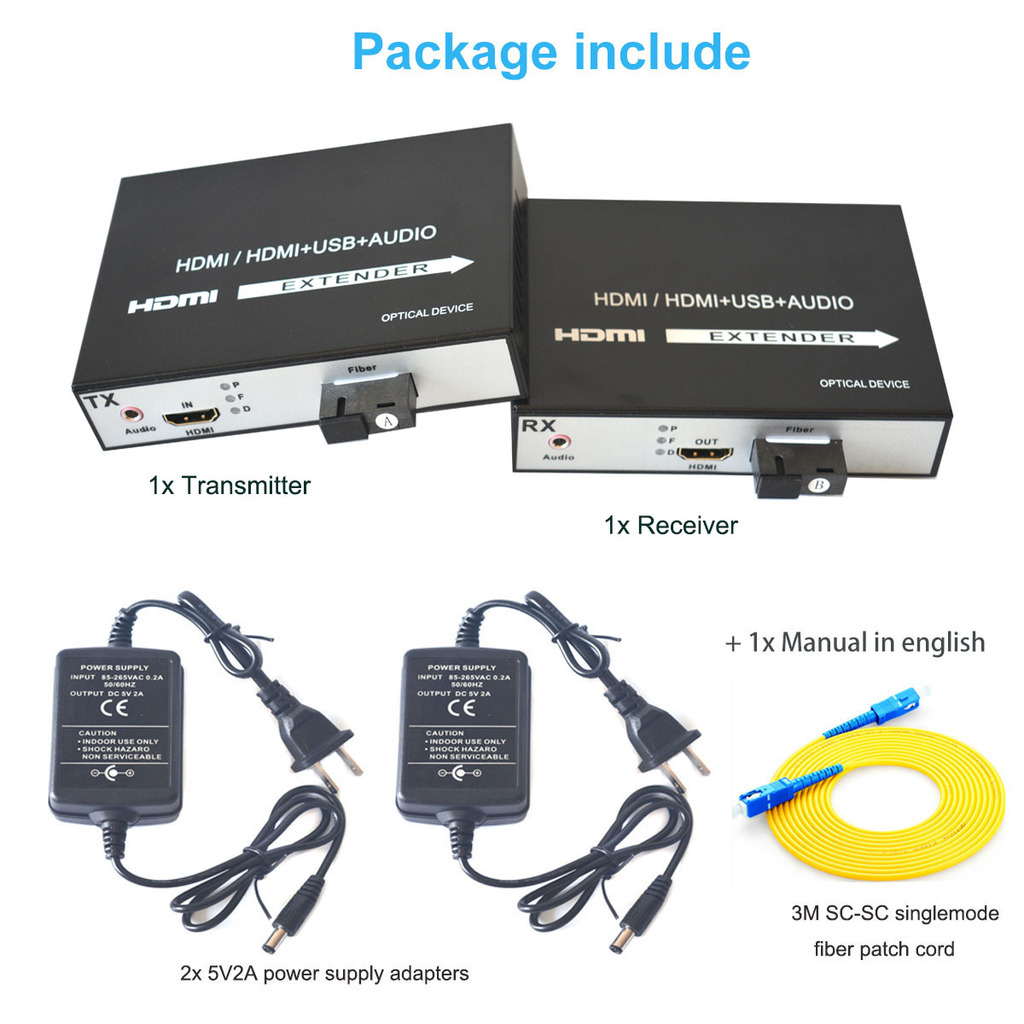

Package include:
1x HDMI to Fiber Transmitter
1x HDMI to Fiber Receiver
2 x External Power supply adapters.
1 x User manual
