3G/HD SDI Converters
3G SDI Fiber Optic Converters

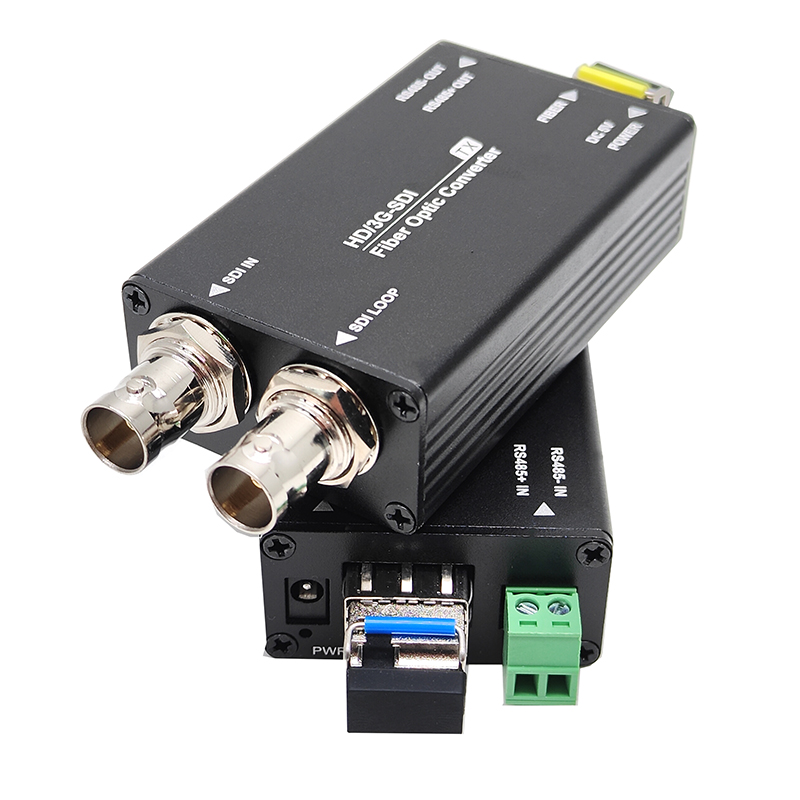

PMD-3GSDI-1V1D-M-LC
Description:
1. Support 3G-SDI,HD-SDI or SD-SDI video signal over a fiber optic.
2. Support video resolution up to 1920x1080@60Hz.
3. Support retiming function and Video loop out function.
4. Support one reverse RS485 data.
5. Broadcasting quality, Mini design, protable.
1. Support 3G-SDI,HD-SDI or SD-SDI video signal over a fiber optic.
2. Support video resolution up to 1920x1080@60Hz.
3. Support retiming function and Video loop out function.
4. Support one reverse RS485 data.
5. Broadcasting quality, Mini design, protable.
Specifications:
1. Optical wavelength:1310nm-1550nm
2. Fiber Type: Single mode, Single fiber.
3. Working distance0~20km
4. Fiber connector: LC.
SDI Video:
1. Physical Interface:BNC
2. Max Resolution: 1920 x 1080 @60Hz
3. Video Input and Output Impedance:75Ω (unbalanced)
4. Video Input/output Voltage：Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
5. Video Bits Rate: Max 2.97Gb/s
6. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
7. Support resolution 1080P60Hz 1080P59.94Hz 1080P30Hz 1080P25Hz 1080P24Hz 1080i60Hz 1080i50Hz 1080P50Hz 720P60Hz 720P50Hz PAL(576i50Hz) NTSC(480i60Hz)
Electrical & Mechanical:
1. Input Power Requirements: DC 5V
2. Power physical interface micro-USB
Data
1. Physical Interface: standard industry block terminal
2. Interface signal: RS485 reverse direction
3. Baud Rate:0-400Kbps
4. BER< 10 -9
Package Include:
1 x 3G-SDI Transmitter
1 x 3G-SDI Receiver
2x Power supply adapter with Micro-USB connector
1 x 3M LC-LC S/M fiber patch cord
1x User Manual
