Features

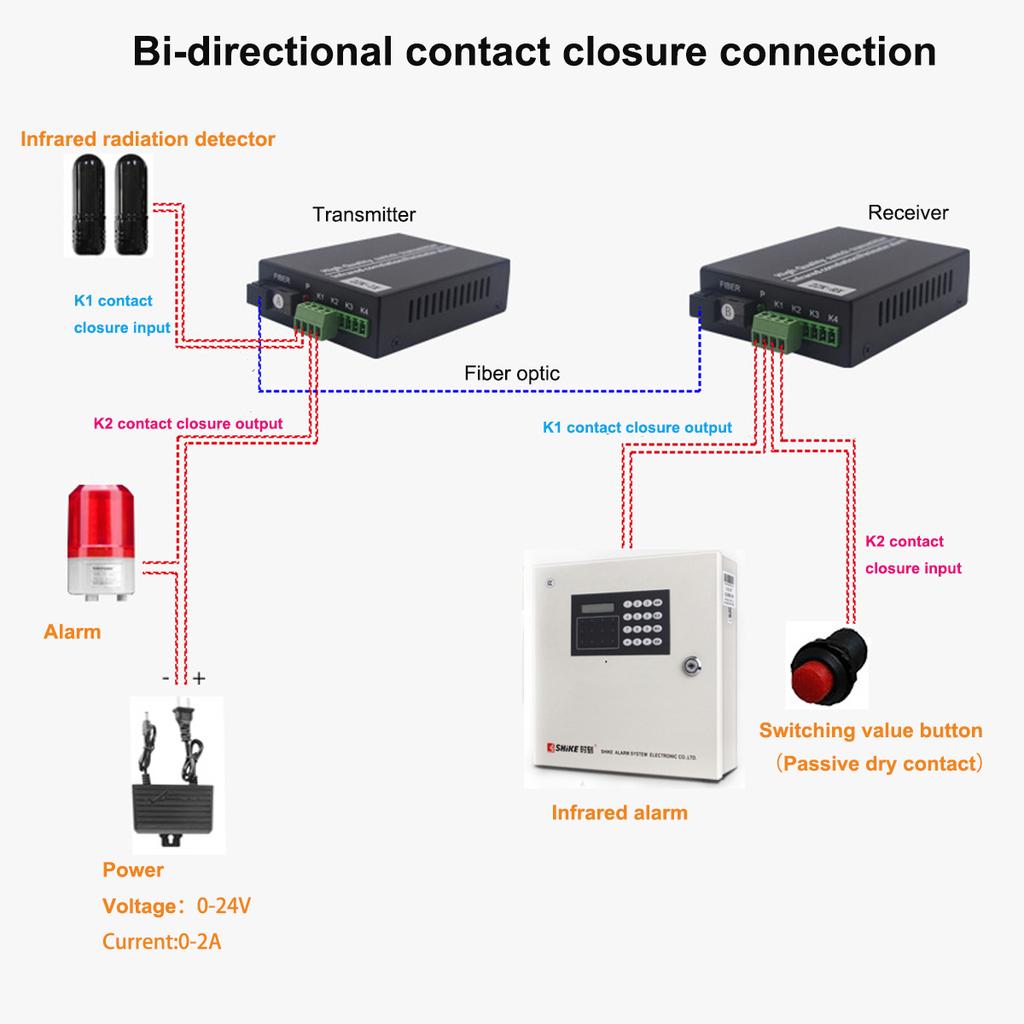

1. Support 1 Channel Bi-directional (BIDI) contact closure over one singlemode or one multi-mode optical fiber. Transmission distance: Singlemode Fiber up to 20 km(40/60/80/100Km version optional). Multimode Fiber up to 500m.

2. Full digital Uncompressed and Lossless transmission. Special ASIC design and high-speed DSP technology.

3. LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system.

4. No need to adjust when using.Plug and Play design ensures adjustment-free installation and operation.

6. Typically used in applications with Access Control System, Alarm Event Triggering, Building Automation and Environmental Control Systems, Fire & Alarm Systems, PIR signal Transmission, Traffic Signal Control Equipment, etc

Specification:

Optical interface: SC (FC/ST optional)

Suitable fiber: universal singlemode 1310/1550μm (9/125μm) and mulimode 850μm (50/125μm), 1310μm (62.5/125μm).

Power supply: AC 100V~240V,DC5V2A



Package contents:

1x Transmitter

1x Receiver

2 x Power adapter (US/EU/UK/AU is optional)

1 x User manual
