FTTH Fiber Optic

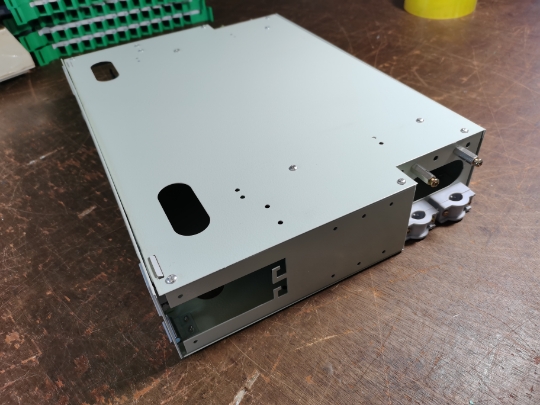

12/24 Core ODF with SC/UPC connector
Product Features:
·Provide protective connection of optical cable and wiring pigtail
·With 12 cores as a unit, pigtails and fiber optic cable bundle tubes have their own channels, layered management to protect the fiber optic cable from damage
·Applicable to FC, SC, LC, ST, four kinds of adapters and ribbon, bundle, and extraordinary optical cables
·The 30° bevel angle of the adapter and the splicing unit ensures that the optical fiber is coiled and effectively protects the eyes from burns.
·19 inch standard rack
·Provide protective connection of optical cable and wiring pigtail
·With 12 cores as a unit, pigtails and fiber optic cable bundle tubes have their own channels, layered management to protect the fiber optic cable from damage
·Applicable to FC, SC, LC, ST, four kinds of adapters and ribbon, bundle, and extraordinary optical cables
·The 30° bevel angle of the adapter and the splicing unit ensures that the optical fiber is coiled and effectively protects the eyes from burns.
·19 inch standard rack
Technical characteristics:
·Optical cable connector insertion loss ≤0.3dB
·Optical fiber connector return loss PC type ≥ 40dB; UPC type ≥ 50dB: APC type ≥ 50dB
·Optical fiber connector plugging and unplugging durability life ≥ 1000 times
·Withstand voltage strength: no breakdown or arcing under 15KV direct current for 1 min
·Fire rating: UL94 VO 70Kpa-106Kpa
working environment:
·Ambient temperature -40℃-+80℃
·Relative humidity≤85% (at +30℃
·Atmospheric pressure: protection level (EN60529): IP54, IP58
Optional models: 12 cores, 24 cores, 48 cores, 72 cores, 96 cores, 144 cores
