HDMI to Fiber Extender
HDMI Extender over Fiber
PMD-HDMI-HXT01
Features:
1. HDMI over single fiber optic long distance data transfer.
2. With stereo 3.5mm audio.
3. Zero latency, stable transmission.
4. Singlemode up to 20Km(12.4miles),Compatible with multimode fiber up to 500m.
5. Plug and play, no need to set up.
6. OEM,Custom made.
1. HDMI over single fiber optic long distance data transfer.
2. With stereo 3.5mm audio.
3. Zero latency, stable transmission.
4. Singlemode up to 20Km(12.4miles),Compatible with multimode fiber up to 500m.
5. Plug and play, no need to set up.
6. OEM,Custom made.
Description:

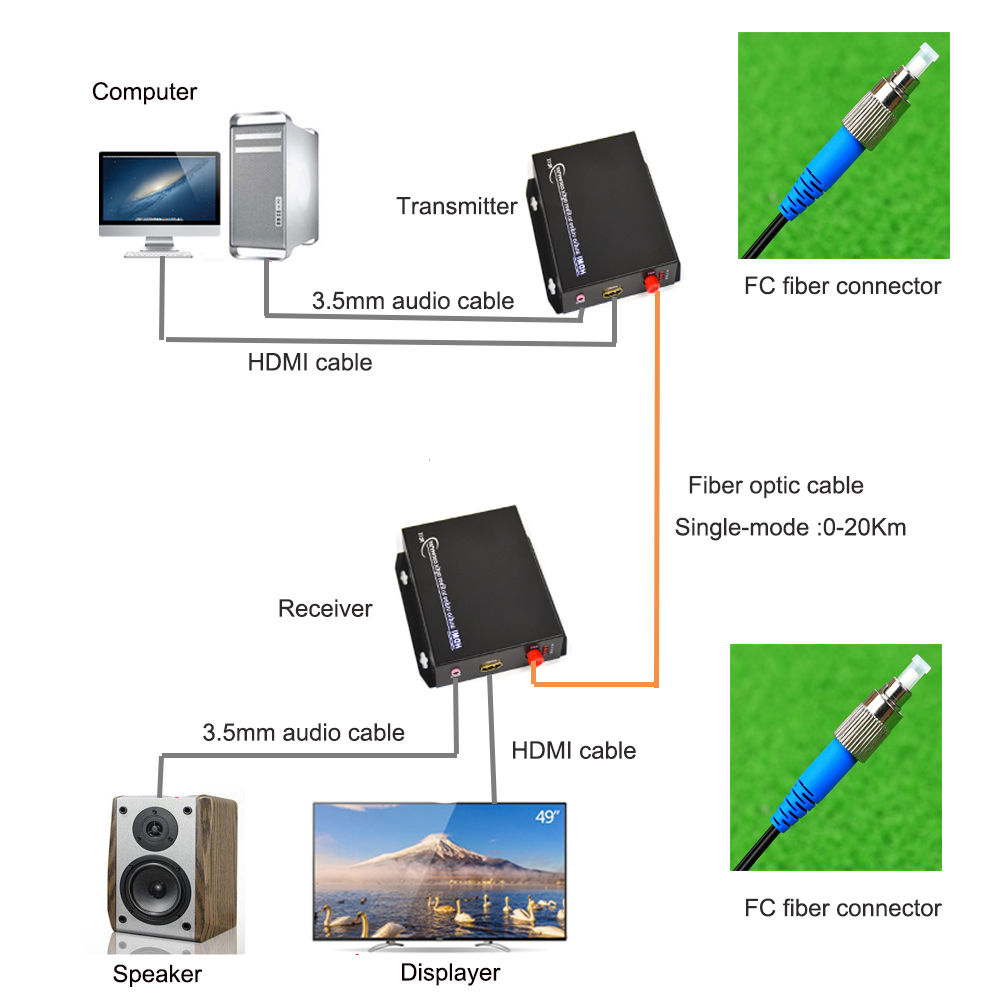

1. This HDMI over fiber system is used to send HD 1080p HDMI signal to remote transmission through a Fiber Optic cable with FC/FC connector, with Stereo 3.5mm audio. Support video resolution up to 1920x1080P@60Hz.
HD 1080p HDMI transmission,zero latency, and stable A/V signal transmission, Long working life.
2. With our HDMI over Fiber Optic extender you can get greater bandwidth, faster speeds, less signal degradation, longer distance data transfer, better reliability, and more flexibility. Using a fiber optic cable can decrease costs over time because of the durability and reliability of the fiber cables. Fiber optic cables carry a low rate of bit error due to the fiber being highly resistant to electromagnetic interference.
3. The device can achieve signal distribution distances of up to 20Km(12.4miles) over a single FC-FC single-mode 9/125μm, and up to 500m(0.31miles) over a FC-FC multi-mode 50/125 or 62.5/125μm. Use with universal optical fiber type(S/M and M/M).
4. Plug and Play, Easy to install.
Optical index:
1. Optical connector : FC.
2. Suitable for universal singlemode optical fiber 9/125 and multi-mode 50/125 or 62.5/125μm.
3. Working distance: singlemode fiber up to 20Km(12.4miles). Multimode fiber up to 500m(0.3miles).
4. Wavelength: Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm).
General Index:
1. The usual time between failures (MTBF) greater than 100,000 hours.
2. Size: 115X108X72mm (LxWxH).
3. Working voltage : AC100-240V,DC5V2A, US/EU/UK/AU standard plug is optional.
Package contents:
1x HDMI transmitter
1x HDMI receiver
1x 3m singlemode fiber patch cord
2 x power AC100-240V DC5V/2A.
1 x User manual
1. This HDMI over fiber system is used to send HD 1080p HDMI signal to remote transmission through a Fiber Optic cable with FC/FC connector, with Stereo 3.5mm audio. Support video resolution up to 1920x1080P@60Hz.
HD 1080p HDMI transmission,zero latency, and stable A/V signal transmission, Long working life.
2. With our HDMI over Fiber Optic extender you can get greater bandwidth, faster speeds, less signal degradation, longer distance data transfer, better reliability, and more flexibility. Using a fiber optic cable can decrease costs over time because of the durability and reliability of the fiber cables. Fiber optic cables carry a low rate of bit error due to the fiber being highly resistant to electromagnetic interference.
3. The device can achieve signal distribution distances of up to 20Km(12.4miles) over a single FC-FC single-mode 9/125μm, and up to 500m(0.31miles) over a FC-FC multi-mode 50/125 or 62.5/125μm. Use with universal optical fiber type(S/M and M/M).
4. Plug and Play, Easy to install.
Optical index:
1. Optical connector : FC.
2. Suitable for universal singlemode optical fiber 9/125 and multi-mode 50/125 or 62.5/125μm.
3. Working distance: singlemode fiber up to 20Km(12.4miles). Multimode fiber up to 500m(0.3miles).
4. Wavelength: Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm).
General Index:
1. The usual time between failures (MTBF) greater than 100,000 hours.
2. Size: 115X108X72mm (LxWxH).
3. Working voltage : AC100-240V,DC5V2A, US/EU/UK/AU standard plug is optional.
Package contents:
1x HDMI transmitter
1x HDMI receiver
1x 3m singlemode fiber patch cord
2 x power AC100-240V DC5V/2A.
1 x User manual
