HDMI to Fiber Extender
HDMI over Fiber Extender
PMD-HDMI-SC-N02
Description:
1. Long transmission distance: up to 12.4miles (20Km).40km/60km/80km/100km is optional.
2. Fiber connector: SC.
3. Video Resolutions: 1920x1080@60Hz max.
4. Suitable fiber cable: universal singlemode and multimode . .
1. Long transmission distance: up to 12.4miles (20Km).40km/60km/80km/100km is optional.
2. Fiber connector: SC.
3. Video Resolutions: 1920x1080@60Hz max.
4. Suitable fiber cable: universal singlemode and multimode . .
Features:
1.This HDMI over fiber system is used to send High definition HDMI signals to remote audio/video transmission device through one Fiber Optic cable with SC/SC connector.
2. The device can achieve signal distribution distances of up to 20Km(12.4miles) over a single SC/SC single-mode 9/125μm, and up to 500m (1640ft.) over a single SC/SC multi-mode 50/125 or 62.5/125μm. Suitable for both universal fiber type(S/M and M/M).
3. Uncompressed HDMI transmission, High definition image output, Lossless. Super-stability transmission and Long work life.
4. Support Video Resolution up to 1920*1080P@60Hz.
5. Simple to Install, No need drive, Plug and Play.
Optical index:
1.Optical connector : SC.
2.Suitable for singlemode fiber 9/125 and multi-mode 50/125 or 62.5/125μm .
2. Transmission distance: single-mode fiber 0-20Km(12.4miles). Multimode fiber 0-500Meters(0.31miles).
3. Wavelength: Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm).
General Index:
1. The usual time between failures (MTBF) greater than 100,000 hours.
2. Outer box size: 93x70x26mm (LxWxH).
3. Working voltage : AC100-240V,DC5V2A .

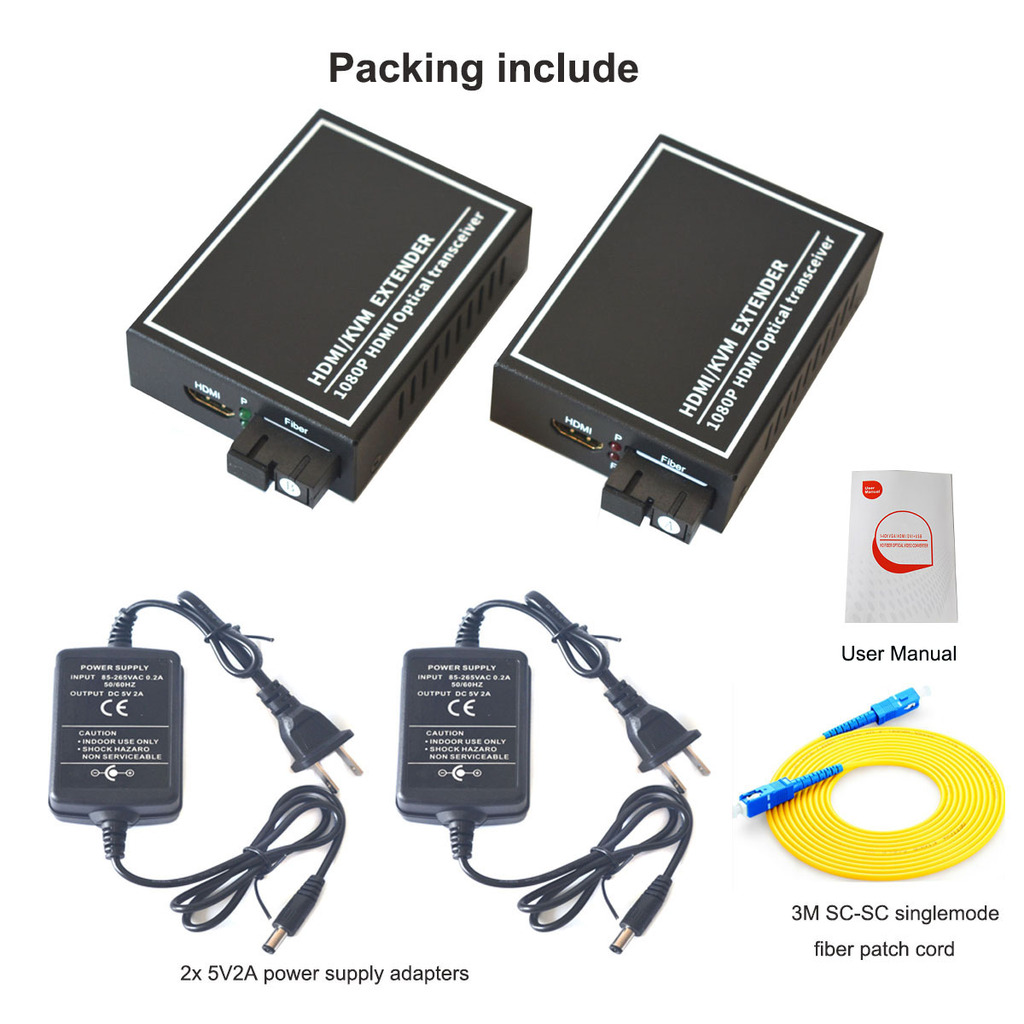

Package contents:
1x HDMI transmitter
1x HDMI receiver
2 x power AC100-240V DC5V/2A (US/UK/EU/AU standard plug is optional)
1 x User manual
1.This HDMI over fiber system is used to send High definition HDMI signals to remote audio/video transmission device through one Fiber Optic cable with SC/SC connector.
2. The device can achieve signal distribution distances of up to 20Km(12.4miles) over a single SC/SC single-mode 9/125μm, and up to 500m (1640ft.) over a single SC/SC multi-mode 50/125 or 62.5/125μm. Suitable for both universal fiber type(S/M and M/M).
3. Uncompressed HDMI transmission, High definition image output, Lossless. Super-stability transmission and Long work life.
4. Support Video Resolution up to 1920*1080P@60Hz.
5. Simple to Install, No need drive, Plug and Play.
Optical index:
1.Optical connector : SC.
2.Suitable for singlemode fiber 9/125 and multi-mode 50/125 or 62.5/125μm .
2. Transmission distance: single-mode fiber 0-20Km(12.4miles). Multimode fiber 0-500Meters(0.31miles).
3. Wavelength: Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm).
General Index:
1. The usual time between failures (MTBF) greater than 100,000 hours.
2. Outer box size: 93x70x26mm (LxWxH).
3. Working voltage : AC100-240V,DC5V2A .
Package contents:
1x HDMI transmitter
1x HDMI receiver
2 x power AC100-240V DC5V/2A (US/UK/EU/AU standard plug is optional)
1 x User manual
