Feature:

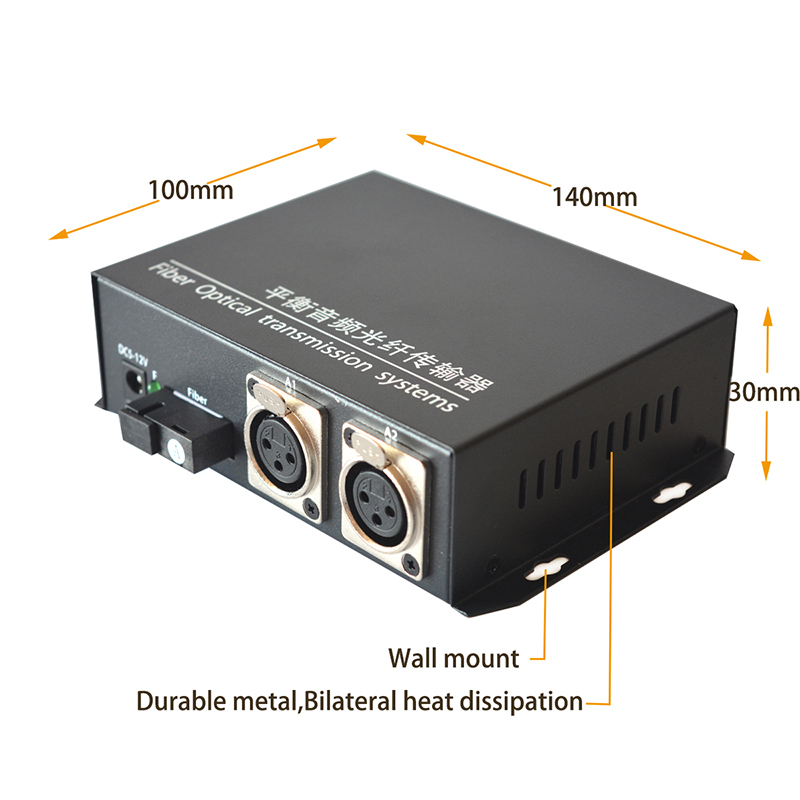

1. Support 2 Channels balanced audio 16-bit digitally encoded broadcast quality balanced audio over one single-mode up to 20Km(12.4mile) or one multi-mode optical fiber up to 500m(0.31mile). Bidirectional XLR balanced audio is optional.
2. The Balanced audio extender are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack mount installations.
3. With SC optical connector, FC or ST is optional.
4. Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
5. MTBF (Mean Time Between Failure ) Over 100,000 hours.
Specifications
|
Wavelength |
1310nm&1550nm |
|
Output Power |
-9~ -3dBm / -5~0dBm |
|
Optic fiber |
50/125um multimode，62.5/125um multimode，9/125um single mode |
|
Rx sensitivity |
-25dBm |
|
Optical connector |
SC (ST /FC /LC is optional) |
|
Distance |
0~20KM(SM) ,40KM/60KM/80KM is optional.0~500M (MM) |
Balanced Audio
|
Number of Channel |
2 |
|
Input Connector |
XLR（female） |
|
Output Connector |
XLR（male） |
|
Input / Output Impedance |
10K Ohm |
|
Input capacitance LINE inputs |
10 pF |
|
Max input/output voltage |
3.0Vp-p |
|
Frequency Response |
10 Hz～44.1kHz @±3dB |
|
Sample Rates From |
48kHz |
|
SNR |
> 70dB |
Electrical & Mechanical
|
Power Adapter: |
AC 100V~240V,DC5V2A |
|
Power Consumption: |
< 8W |
|
Installation |
Stand-alone |
|
Shipping Weight: |
(include Transmitter & Receiver ) 0.8kg |
Environmental
|
Operating Temperature: |
-20°C ~ +75°C |
|
Storage Temperature: |
-40°C ~ +85°C |
|
Relative Humidity: |
0% ~ 95% (non-condensing) |
|
MTBF: |
>100,000 hours |
Package include:
1x Balanced Audio Transmitter
1x Balanced Audio Receiver
2x Power adapter (US/EU/UK/AU standard available)
1x Manual.
