POE Switch

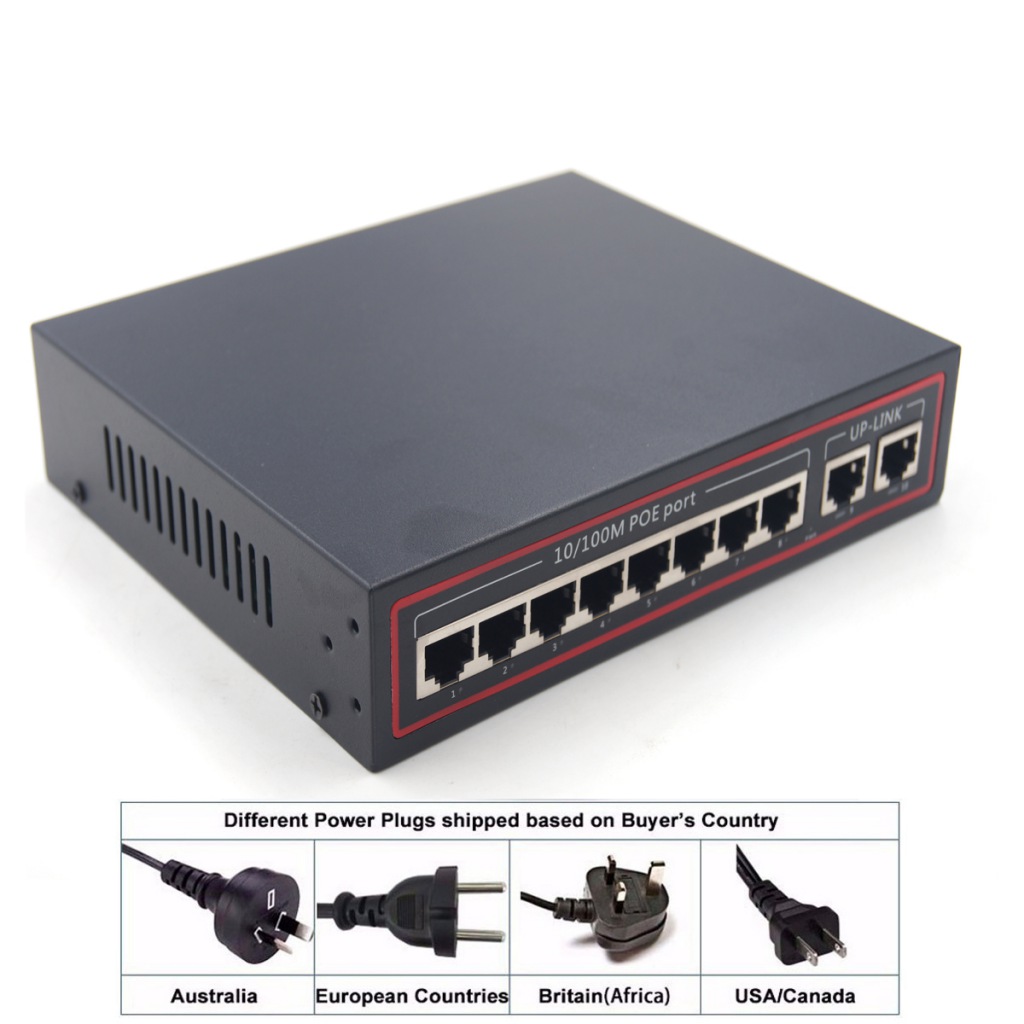

8 Port 10/100M PoE switch with 2 Ethernet
PMD-PoE-8
The unit is a 8 10/100Mbps ports unmanaged switch with 2 Ethernet Uplink that requires no configuration and provides 8 PoE (power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at Compliant powered devices (PDs). in this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP cameras or IP phones, etc. Interface Available:4/16/24 x 10/100Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX.
Key Features:
Universal PoE switch for IP security cameras Supply power to wireless access points and surveillance cameras over Cat-5 cabling 10/100 Mbps speed ports with Auto Uplink Each of PoE port supports maximum 15.4W Total maximum power for all PoE ports is 96W Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode Auto-sensing, output power supply, when connects to PoE IP cameras. Automatically disconnect power, when IP camera is disconnected Each port with LED indicators for monitoring power, link, data and speed Adopting external power adapter supply for easy installation Safe and Reliable Power to WLAN Access Points
Specifications:
Standard: IEEE802.3af/at
Power Adapter Voltage: AC110~260V,DC48-55V.
Power Consumption: 96W max(ports 1~8)
PoE Power Consumption: af≤15.4W
Network Port: 1-8 port: 10/100Mbps POE Ethernet port;
Uplink port:10/100Mbps Ethernet port
Transmission Media: Cat5/5e/6 Cable standard network cable
Transmission Distance:250M(820FT.) max
Internal power adapter supply(US/EU/UK/AU optional)
Packing Contents
1 x PoE switch
1 x User manual
1x Power supply cable(US/EU/UK/AU optional)
