Features:

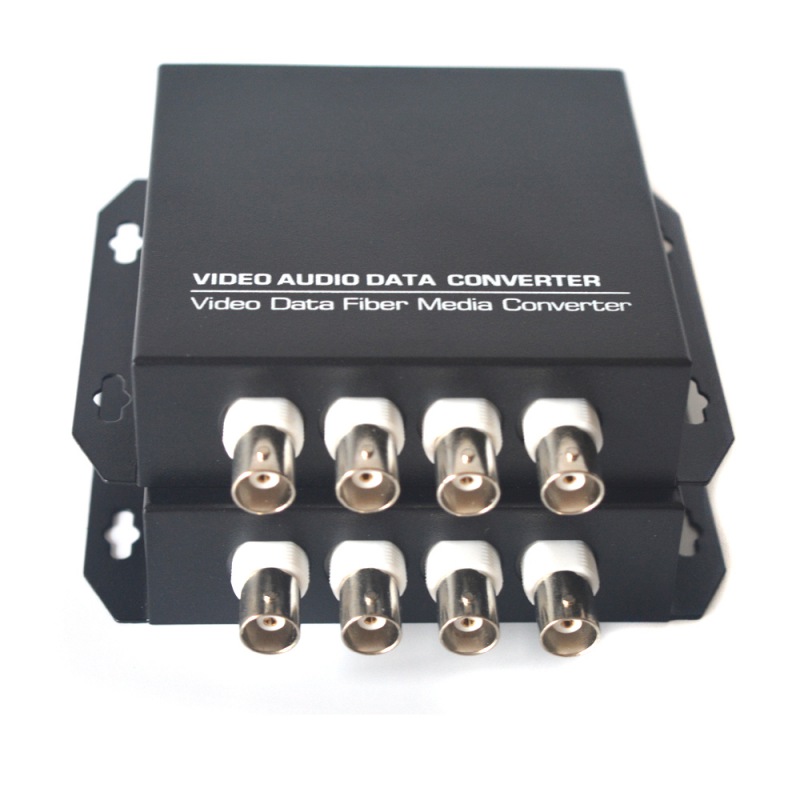

1. This video over fiber system is used to send 4 channels analog video signals through one fiber optic cable with FC/FC connector to remote display devices, Compatible with Singlemode fiber and Multimode fiber. Working distance: Singlemode 0~20Km(12.4 miles), Multimode 0~500m(1640ft.max).

2. Support analog cameras , Automatically compatible for PAL, NTSC, SECAM Video format

3. Optional RS-485 data (reverse direction) for remote control PTZ.

4. Wavelength : Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm)

5. MTBF (Mean time between failure) over 100,000 Hours, Lightning protection

Applicable environment:
1. Security Systems
2. Radio and television transmission
3. Video monitoring
4. Building control systems
5. Train/High speed road monitoring
6. Intelligent Traffic Monitoring System (ITS)
7. Remote multimedia teaching / campus monitoring
8. Long-distance radio and television transmission system


Video Index:
1. Video: 4 channels for analog cameras (CVBS).
2. Video Input / Output Impedance : 75ohm ( unbalanced ) ;
3. Video Bandwidth 8MHz;
4. Video format compatible PAL, NTSC, SECAM;
5. Video voltage 1VP-P;
6. Video SNR ≥ 70dB;
7. Differential gain ≤ 0.7%;
8. Differential phase ≤ 0.7 °;
9. 8- bit linear PCM coding
10. 15MHZ high-speed sampling ;
11. Video Interface: BNC;

Data:

1. Type: RS-485 (2 wires)

2. Connector: industry terminal block.

3. for remote control PTZ.

Optical index:
1. Optical interface : FC

2. Transmission distance : single-mode fiber 0-20KM. Multimode fiber 0~500Meters

3. Wavelength : Single-mode 1310/1550 (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm)

General Index:
1. The usual time between failures (MTBF) greater than 100,000 hours

2. Working voltage : AC100~240V,DC5V2A (US/EU/UK/AU optional)

3. Operating temperature : -40 +70 degree
4. Operating humidity :0 -95 % non-condensing

Package:

1. 1x 4 channels video transmitter

2. 1x 4 channels video receiver

3. 1x 3M FC/FC singlemode fiber patch cord

4. 2x 5V2A power adapters (US/EU/UK/AU optional)

5. User manual
