Support Cameras:

• TVI: 1080P (1920×1080), 960P (1280×960), 720P (1280×720)

• CVI :1080P (1920×1080), 960P (1280×960), 720P (1280×720)

• AHD :1080P (1920×1080), 960P (1280×960), 720P (1280×720)

• PAL, NTSC, SECAM Analog cameras

Optical index:

1. Optical Interface : FC

2. Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm

3. Applicable fiber optic: singlemode, and compatiable with multimode fiber.

4. Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~300meters

Video Index:

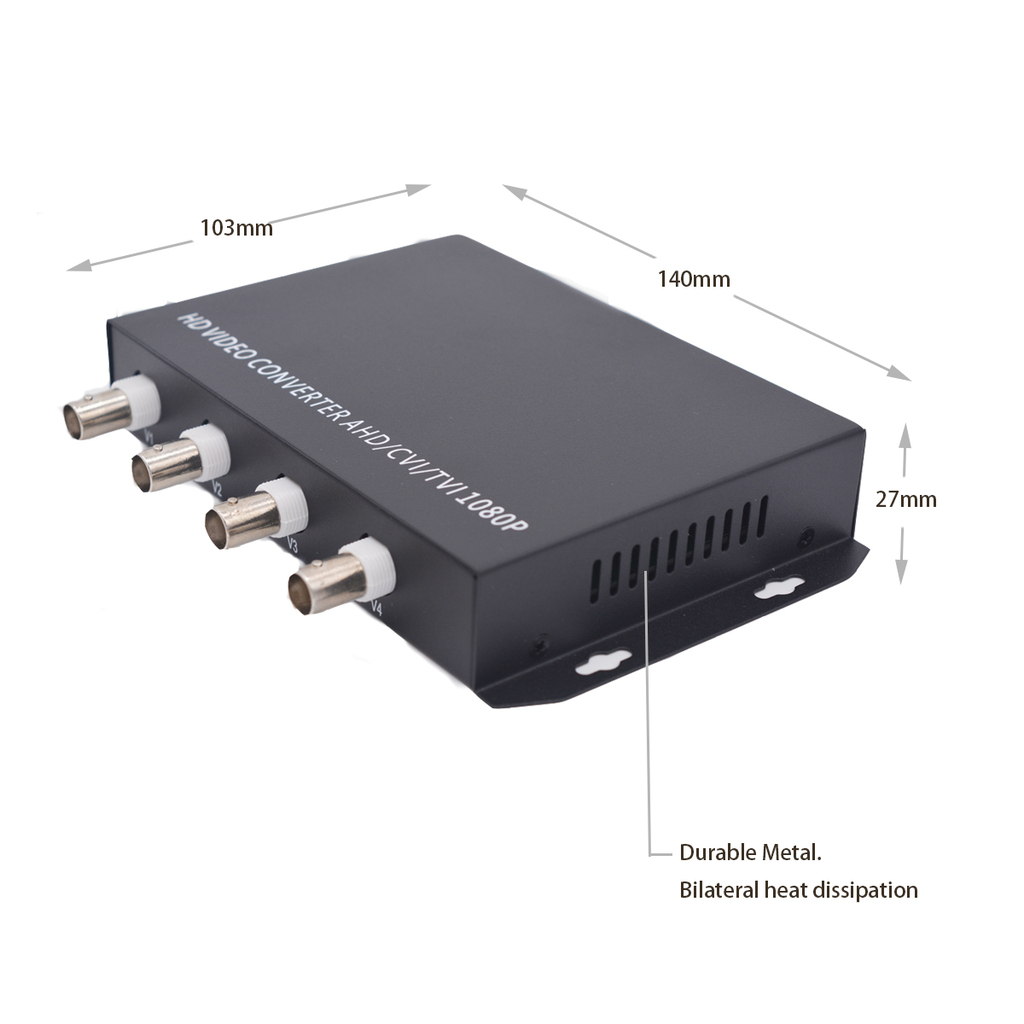

1. Video : 4 channels

2. Video Interface: BNC

3. Coaxial cable transmission length: 1080p up to 300meters.720p up to 500meters

4. Video Input / Output Impedance : 75ohm ( unbalanced ) ;

5. Video Bandwidth 100MHz;

6. Video format compatible PAL, NTSC, SECAM;

7. The sender input level: > 500mVp-p

8. The receiver output level: 1Vp-p

9. Input and output impedance: 75 ohm

10. The receiver rise and fall times:<0.8ns

11. The receiver maximum jitter:<0.2 UI

Data index:

•   RS-485 reverse direction data, for remote control camera.

•   Connector: terminal block, 2 wires.

General index

1.  Power Adapter: AC100~240V DC 5V2A

2.  Working temperature: -40 ~ + 85 degree

3.  Storage temperature: -40 ~ + 85 degree

4.  Humidity: 0 ~ 95% non-condensing

5.  Mean Time between failures: ≥100,000 hours

Package Include:

1 x Video Transmitter

1 x Video Receiver

2 x Power supply adapter (US/EU/UK/AU standard is optional)

1x 3M FC-FC S/M fiber patch cord

1 x User manual
