Overview:

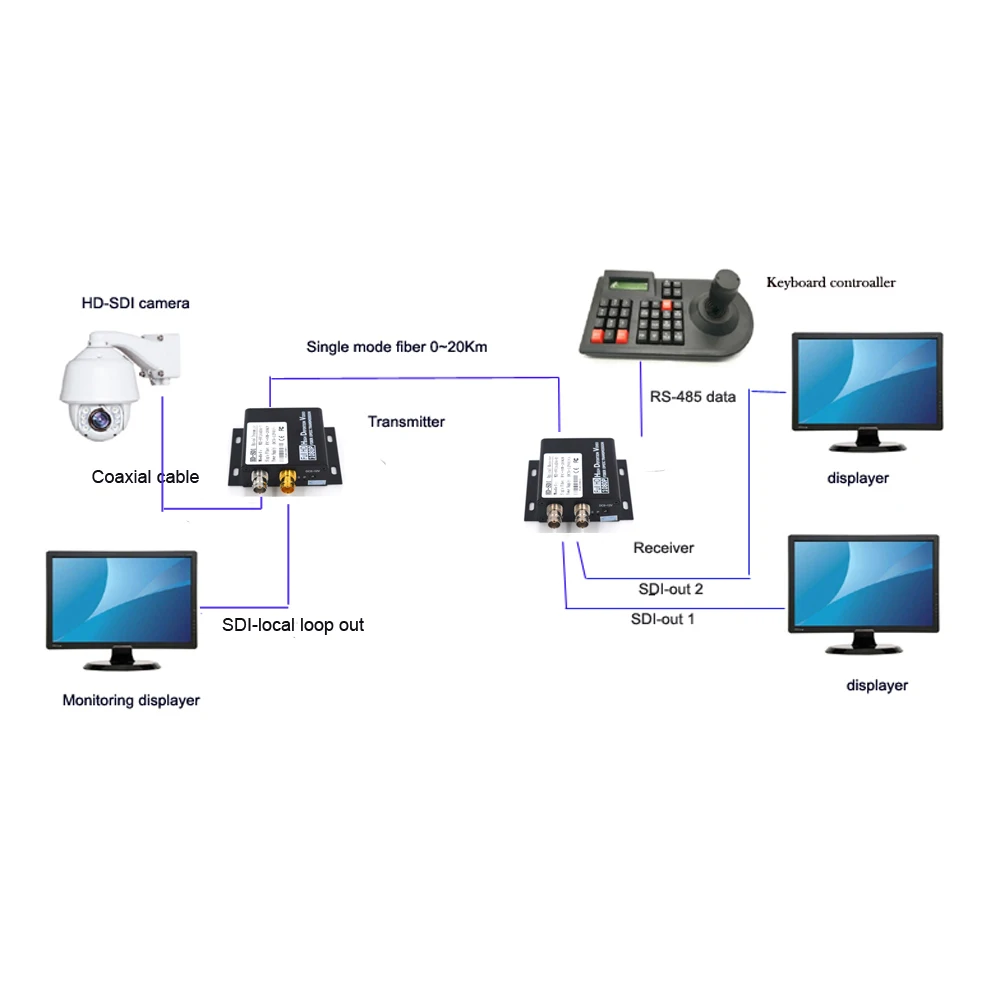

The WY-HDSDI-D is a HD/SD-SDI over single-mode or multimode fiber (optional) transmitter and receiver extender kit. This unit provides optical transmission of one HD/SD-SDI signal with embedded audio signal and has reverse RS-485 data channel for camera control also loop-out connectors on the transmitter & receiver for monitoring. The system support signals accord with standards ofSMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305 and support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability. In addition, our innovative video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate from 270 Mbps to 1.5Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD/SD-SDI signal transport.

Function:

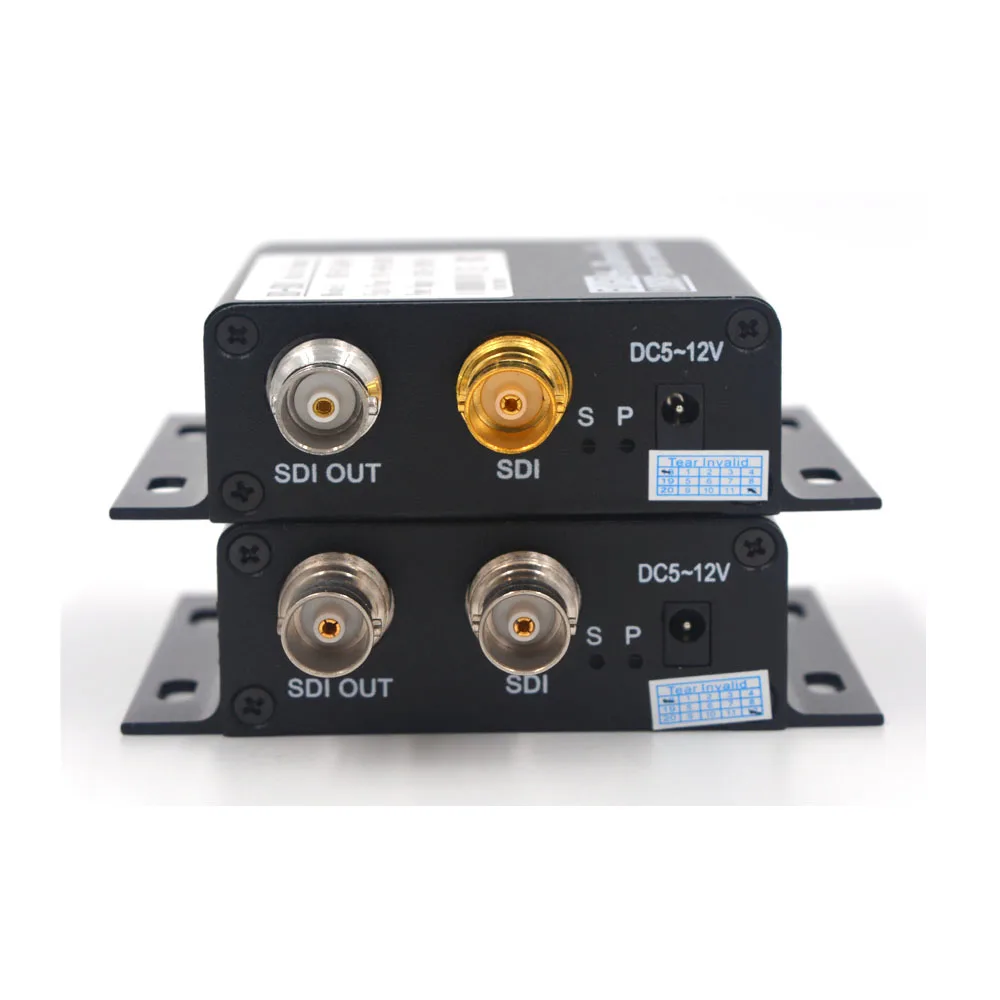

• 1x HD-SDI in and loop out

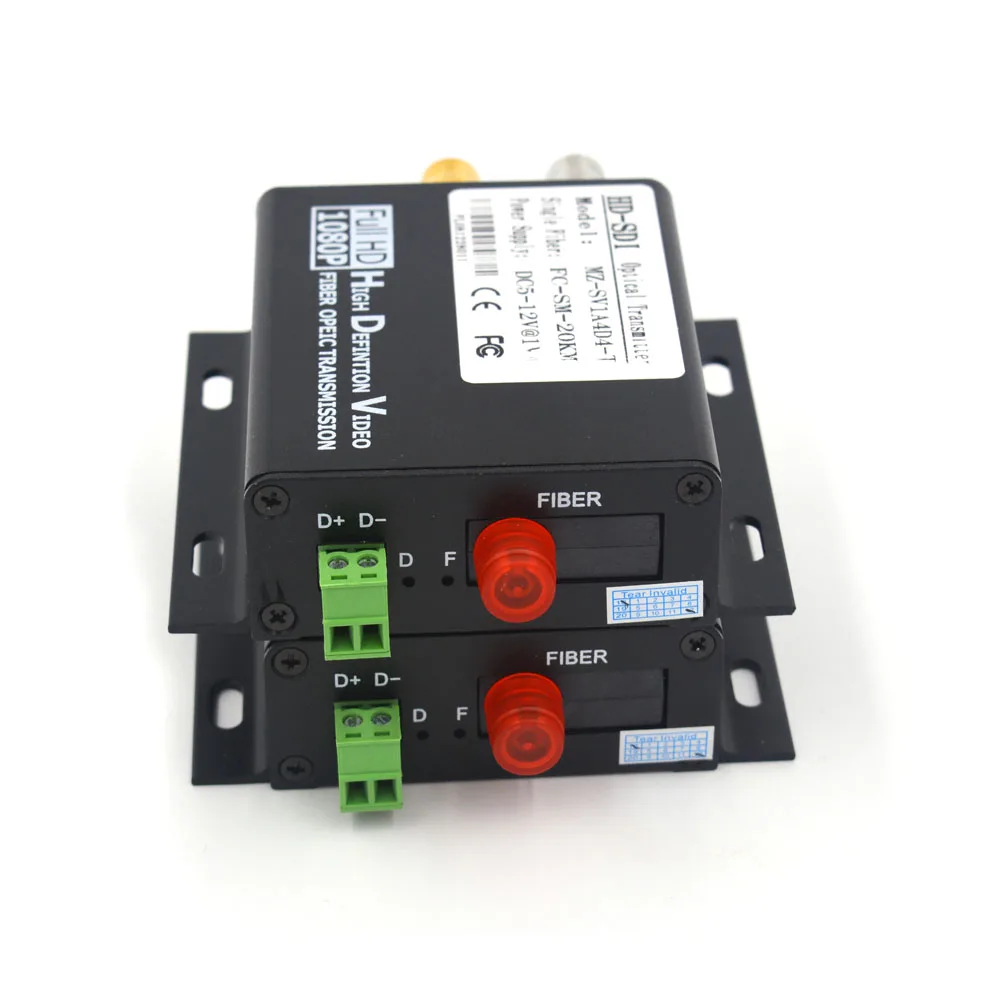

• 1x RS-485 data (reverse direction, for camera control)

Remark: 3G-SDI optional.

Features:

1. 1. 100% Brand New
2. 2. Support SD SD-SDI (270Mbps) and high-definition HD-SDI (1.485Gbps) (3G-SDI 2.97Gbps is optional);
3. 3. Built-in 3G-SDI line equalizer, Reclocker and cable flooding Actuators, perfect signal recovery and jitter suppression;
4. 4. The broadcast signal quality, fully compliant SMPT standard;
5. 5. The maximum cable length: SD 400m; HD 200M; 3G 140M (optional);
6. 6. Single-mode single fiber, transmission distance up 20Km .(S/M: 40km/60km/80km optional. M/M multimode  0~2Km optional )
7. 7. Singlemode 1310nm/1550nm
8. 8. Support HDMI output interface for the user to save the cost of the converter .
9. 9. Voltage:AC100V~240V,DC12V/1A
10. 10. Package:carton box

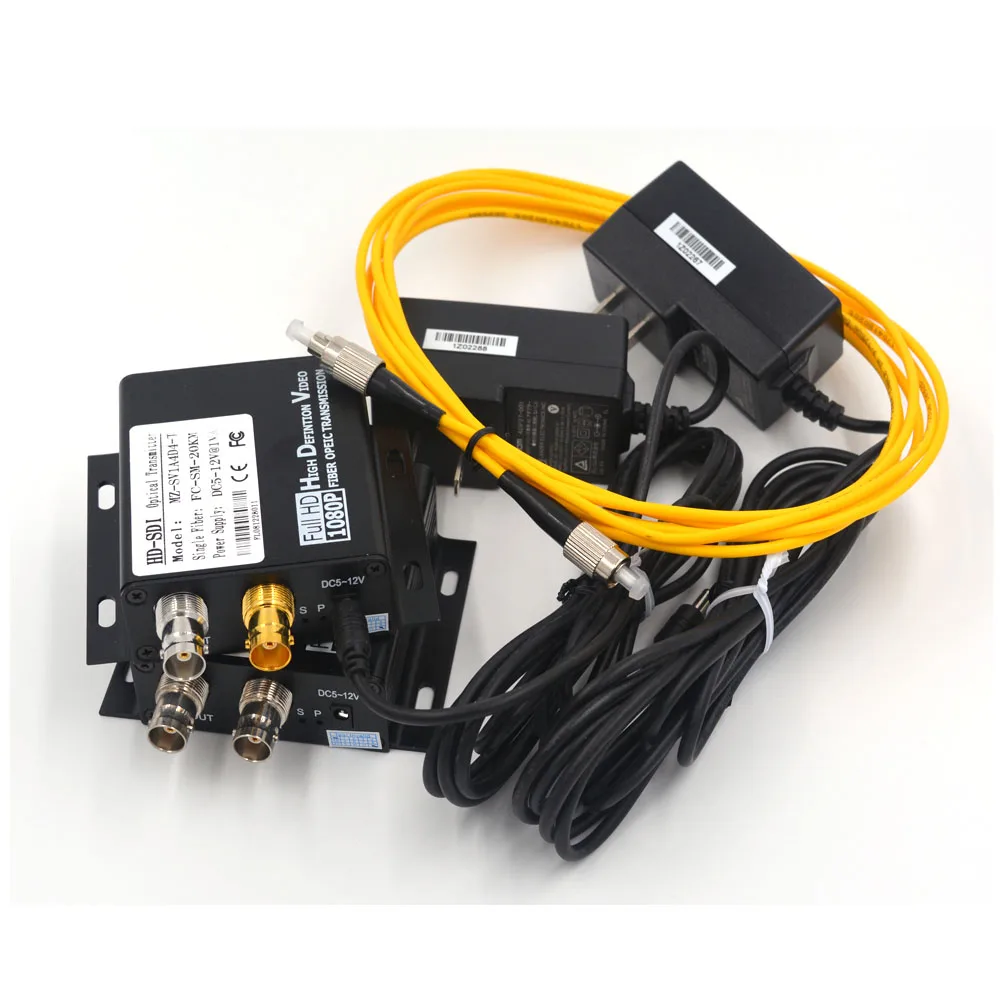

Package Include:

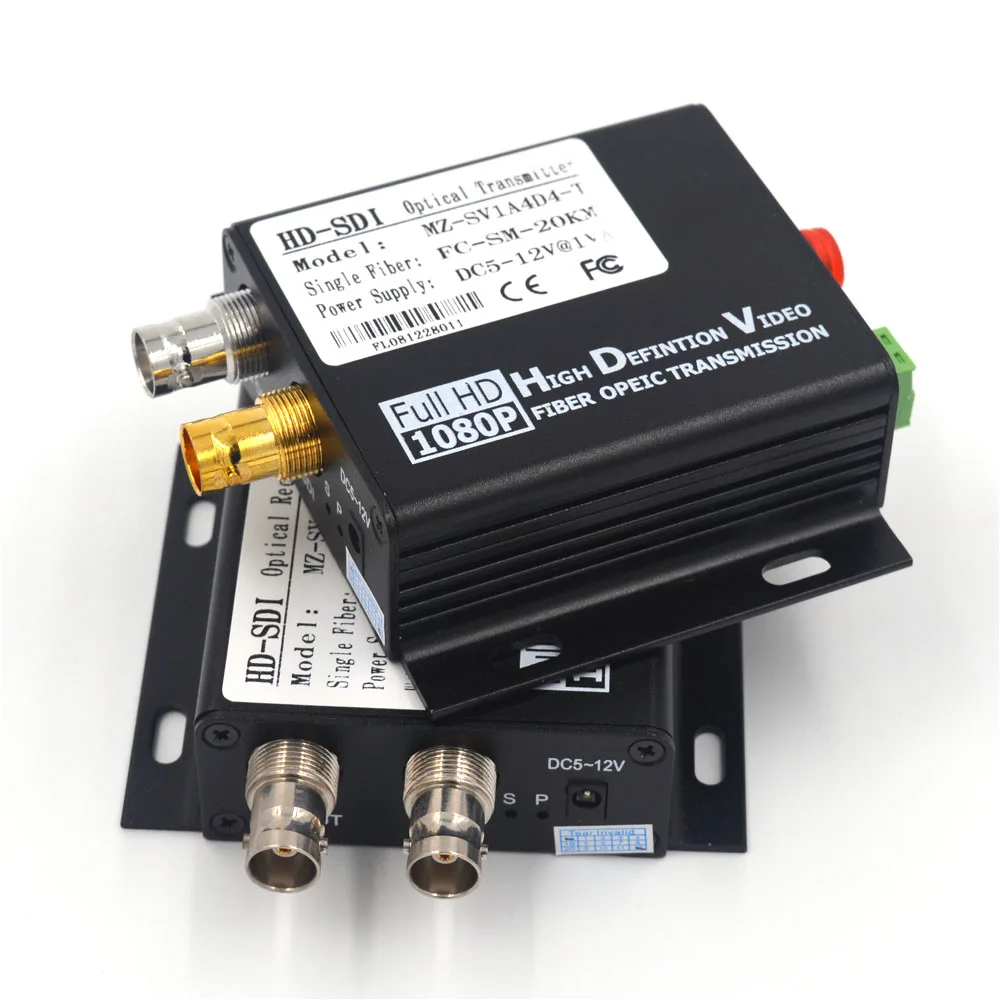

• 1 x HD-SDI Transmitter
• 1 x HD-SDI Receiver
• 2 x Power adaptor (default US, EU/UK/AU available )
• 1x 3m FC/FC singlemode fiber patch cord
• 1x Manual
