High Quality, High Performance, Highly Recommend
Feature:
1. This HDMI over fiber system is used to send High definition HDMI signals to remote audio/video transmission device through one Fiber Optic cable with SC/SC connector, with one local loop out on TX.
2. The device can achieve signal distribution distances of up to 20Km(12.4miles) over a single SC/SC single-mode 9/125μm, and up to 500m (1640ft.) over a single SC/SC multi-mode 50/125 or 62.5/125μm. Suitable for both universal fiber type(S/M and M/M).
3. Uncompressed HDMI transmission, High definition image output, Lossless. Super-stability transmission and Long work life.
4. Support Video Resolution up to 1920*1080P, Support KVM USB Keyboard and mouse for remote control
5. Simple to install, no need drive, Plug and Play
6.MTBF (Mean Time Between Failure) Over 100,000 hours
Specification:
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
10.2Gbps |
|
|
Resolution range |
Up to 1920X1080P@60Hz |
|
|
Connector |
Female HDMI |
|
|
Impedance |
100Ω |
|
|
Optical fiber |
Interface |
SC/UPC connector (FC optional) |
|
Fiber type |
Single Mode |
|
|
Wavelength |
1310nm, 1510nm (S/M) |
|
|
Transmit power |
≥-9.5dBm |
|
|
|
Transmission distance |
Singlemode fiber: 0~20km, compatiable for multimode fiber 0~500m |
|
Other |
Power supply |
The power adapter: DC 5V/5A |
|
Power dissipation |
MAX 5W |
|
|
Temperature |
Operating: -5~ +70°c |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
125*90*25mm (LxWxH) |
|
|
The warranty |
2 years free warranty |
|

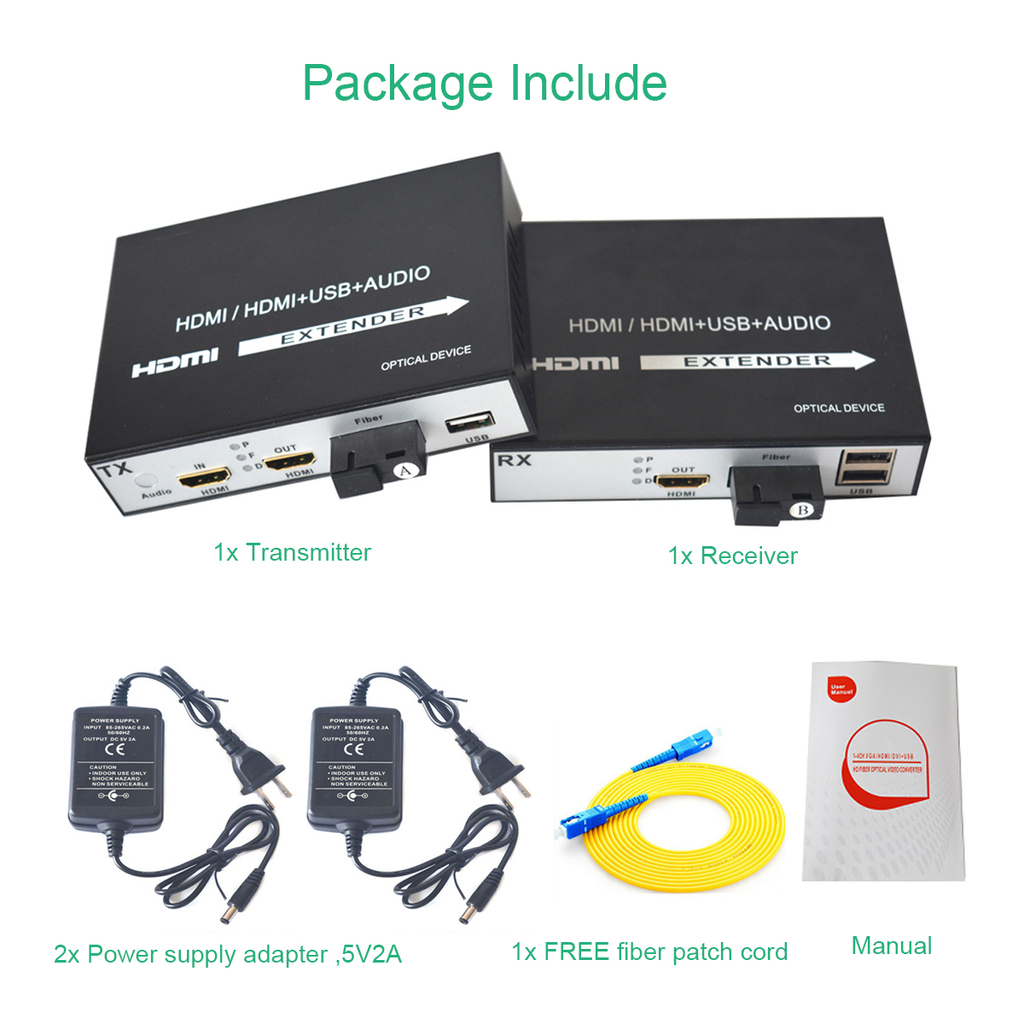

Package contents:
- 1x HDMI transmitter
- 1x HDMI receiver
- 1x SC/SC 3meters singlemode fiber patch cord
- 2 x power DC5V/5A(default ship US, EU/UK/AU is available)
- 1 x User manual
- Online Service
-
