Special spec according to customer request is available to custom made, Contact us.

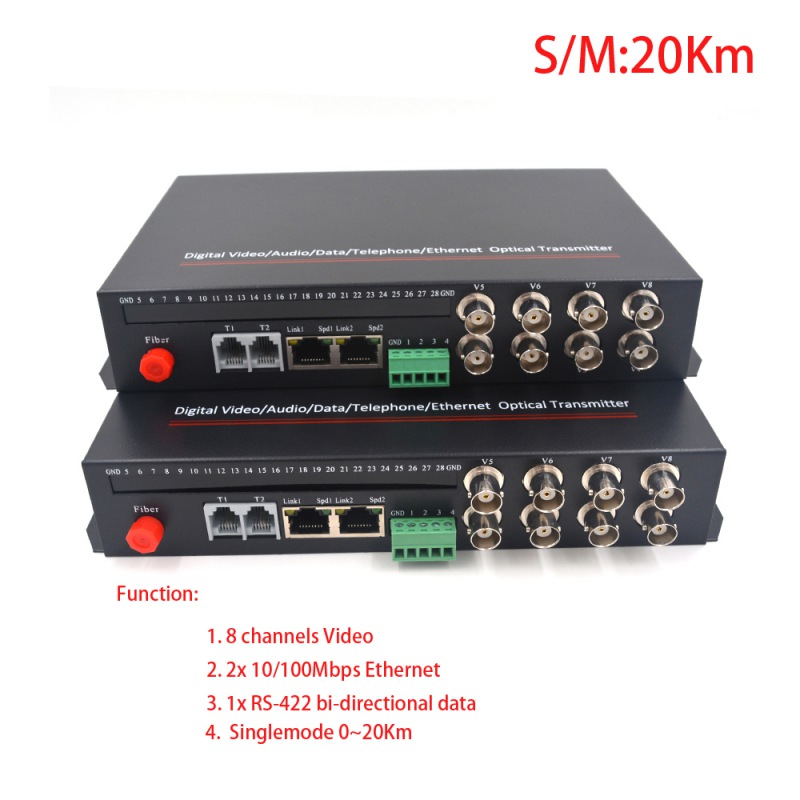

Function:

• 8 channels Video
• 2x 10/100Mbps Ethernet
• 1x RS-422 bidirectional  data

Optional function: 1~2 channel  telphone and 1~8 channels dry contact

For the environment:

• 1.  Security Systems
• 2.  Radio and television transmission
• 3.  Video monitoring
• 4.  Building control systems
• 5.  Train/High speed road monitoring
• 6.  Intelligent Traffic Monitoring System (ITS)
• 7.  Remote multimedia teaching / campus monitoring
• 8.  Long-distance radio and television transmission system

Video:

• 1.  Video: 8 channels (2/4/8/16/24/32CH is optional)
• 2.  Video format compatible PAL, NTSC, SECAM;
• 3.  Input / output impedance: 75 Ω (unbalanced)
• 4.  Input / output voltage: typical 1Vpp (peak-to-peak), maximum 1.2Vpp
• 5.  Bandwidth: 8MHz
• 6.  Sampling: 15MHz high speed sampling
• 7.  Digital Bit Width: 8/10/12 bits (bits)
• 8.  Differential gain: (10% -90% APL) DG <1% (typical)
• 9.  Differential phase: (10% -90% APL) DP <0.8 degree (typical)
• 10.  Field tilt: <0.5%
• 11.  Video signal to noise ratio (weighted): S / N ≥ 70dB (maximum optical link loss)

Data :

• 1.  Data: RS-422, Bi-directional (RS-485/232 is optional)
• 2.  Connector: Terminals block (4 wires )
• 3.  It can support multiple data, compatible with all control keyboard, matrix protocol, hard disk video PTZ, alarm composite data, industrial application transmission.
• 4.  Control equipment: PTZ decoder, control keyboard, matrix control data interface, high speed dome, industrial equipment

 Ethernet:

• 1.  Interface rate: 10 /100Mbit/s adaptive, the default is 100Mbps working state
• 2.  Interface type: UPC Cat5 cable RJ-45
• 3.  Support Protocol: IEEE 802.3U 100Base-TX, 10 / 100M Ethernet standard
• 4.  Work mode: full duplex or half duplex

Fiber optic :

• 1.  Optical Interface : FC
• 2.  Wavelength : Single-mode 1310/1550μm (9/125μm).
• 3.  Transmission distance : singlemode fiber 0-20KM . Optional multimode 0~2Km version.

Power input:  AC100~240V, DC5V / 2A

Package:

• 1x 8CH Video Transmitter
• 1x 8CH Video Receiver
• 2x Power supply ( default US, EU/AU/UK Available)
• 1x User manual
