Fiber Patch Cord

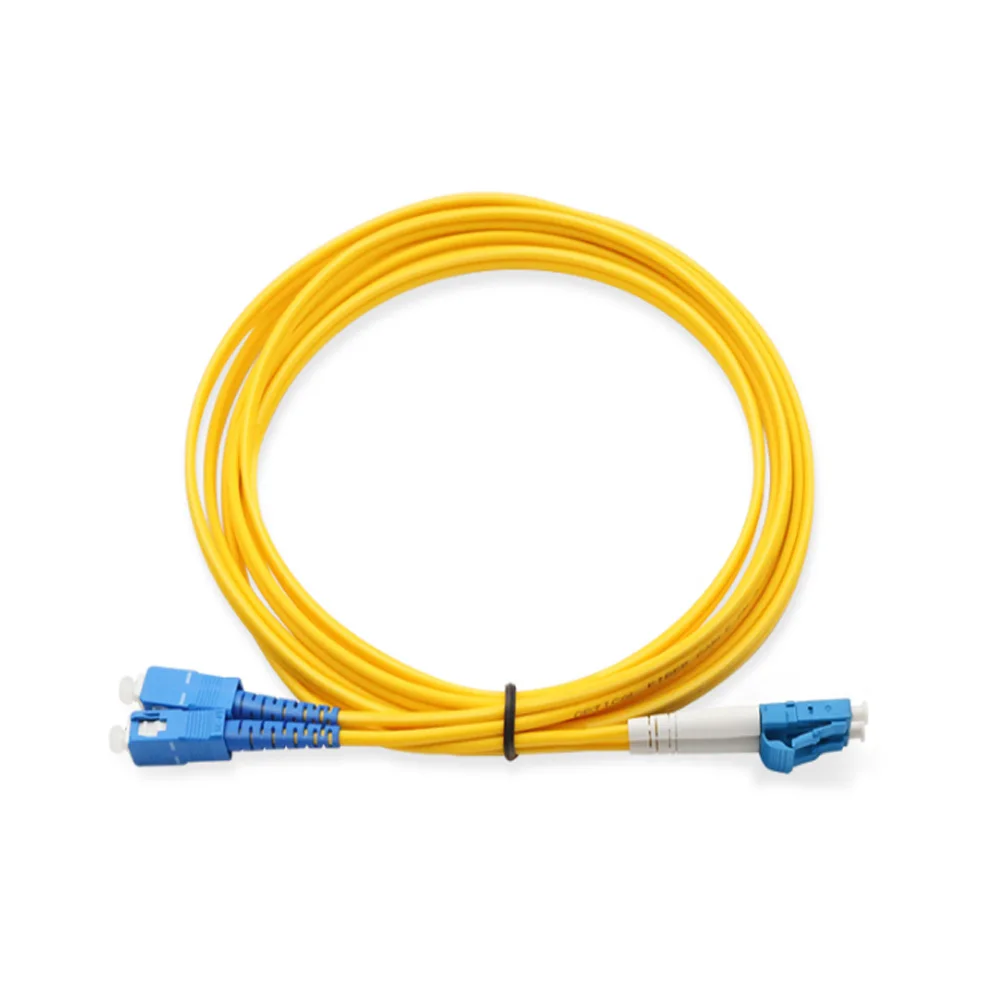

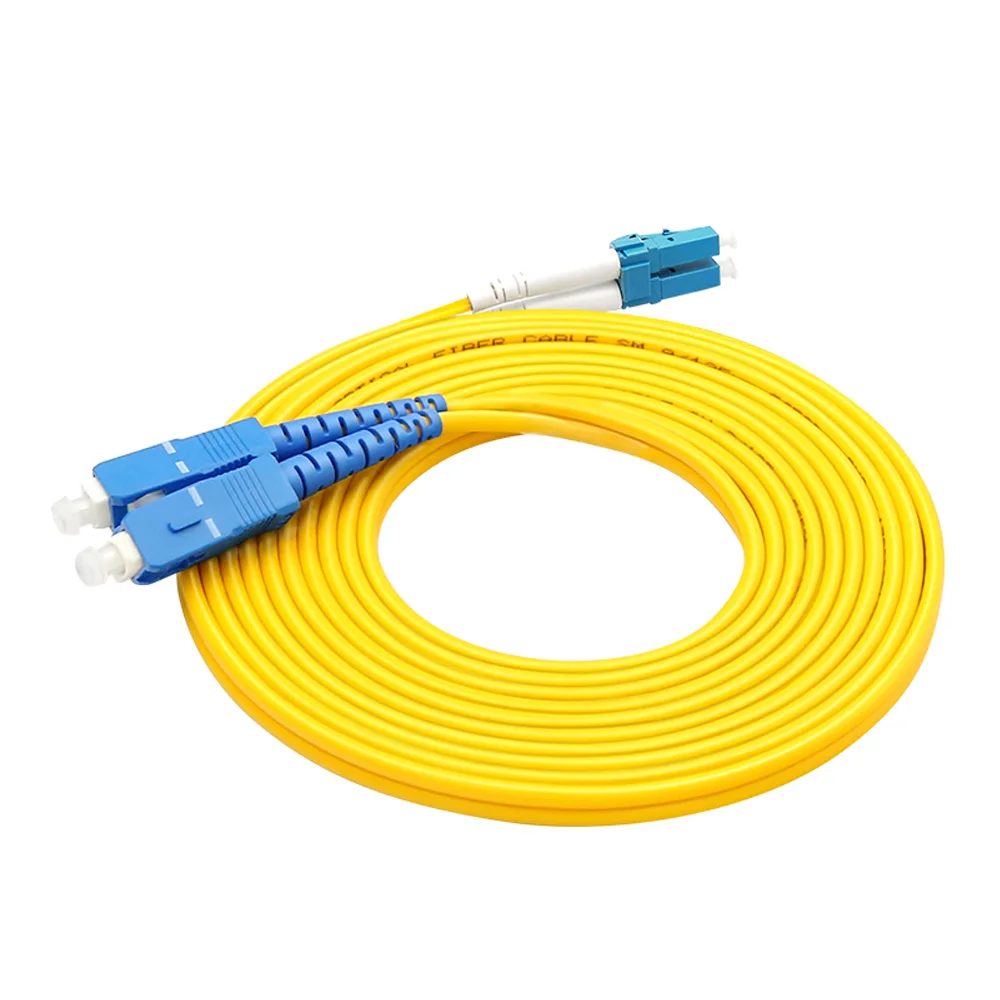

3M SC-LC S/M Duplex Fiber cable
NKX-2SC/2LC-SM
Telecom Level, High Quality.
3Meters SC-LC Duplex SM 9/125, Patch Cord ,Optional length :1m/2m/3m/5m/10m/15m/20m/30m/40m/50m/60m/70m/80m/100m and other length customized is available.
3Meters SC-LC Duplex SM 9/125, Patch Cord ,Optional length :1m/2m/3m/5m/10m/15m/20m/30m/40m/50m/60m/70m/80m/100m and other length customized is available.
Note: Length and connector is customizable, feel freely contact me for quotation.
Description:
- Fiber Optic Optical Patch Cord 3M duplex Single mode Jumper Cable SC To LC
- This cable features Single mode 9/125 micron, SC to LC connector. Specifically designed for Ethernet, multimedia or other communication application
- Material (External) :PVC
- Connector Type: SC to LC
- Core : Singlemode Fiber
- Density:Duplex
- Polish:UPC
- Length:3m
- Outer diameter:3.0mm
- Color :Yellow
Technical Specifications:
|
Parameter |
Unit |
Index |
|||
|
Connector Type |
/ |
PC(SM) |
UPC(SM) |
APC(SM) |
PC(MM) |
|
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥35 |
|
Insertion Loss |
dB |
Typ≤0.2 Max≤0.3 |
|||
|
Repeatability |
dB |
≤0.1 |
|||
|
Interchangeability |
dB |
≤0.2 |
|||
|
Connection Durability |
times |
≥1000 |
|||
|
Operating Temperature |
deg |
-25~+70 |
|||
