    NKX-12FC/APC

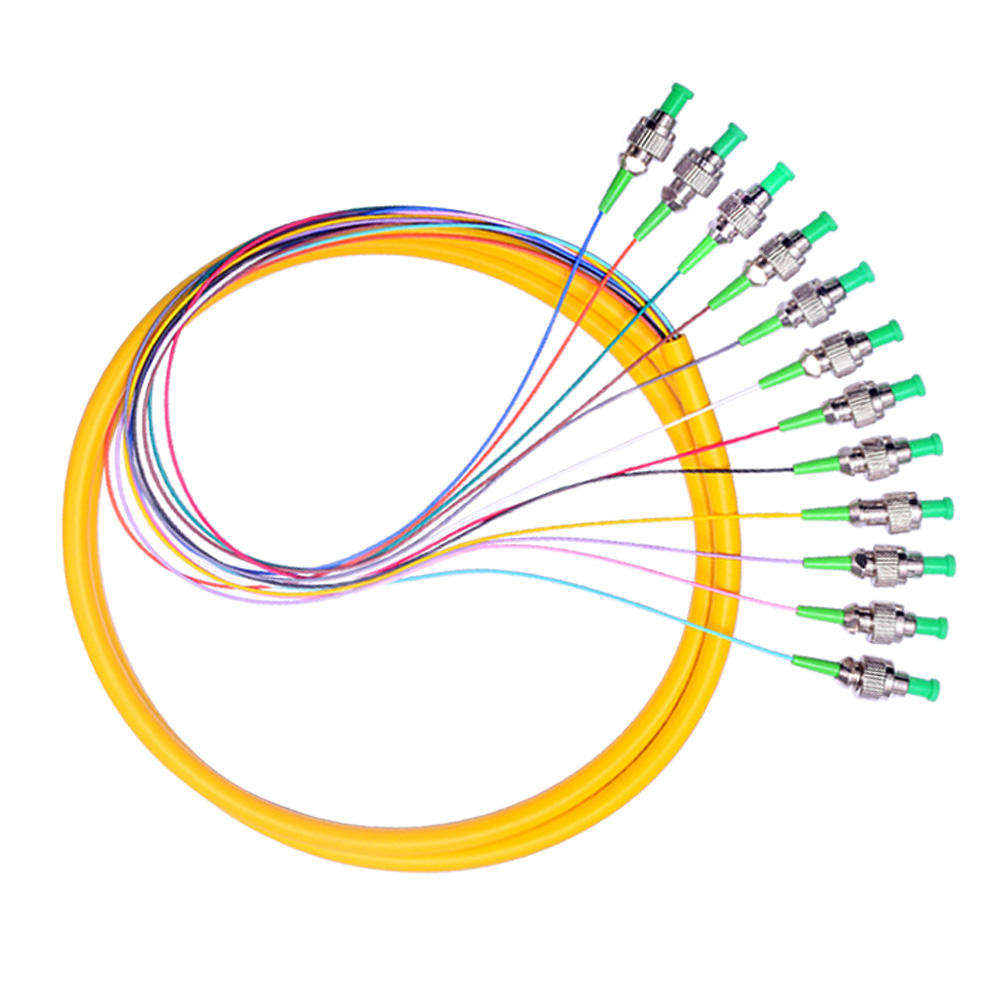

    12 Strand 9/125 Fiber Optic Pigtail 1.2m FC/APC Single Mode,12 fiber pigtail

    Overview:



    Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.





    12 Strand 9/125 Fiber Optic Pigtail 1.2m FC/APC Single Mode,12 fiber pigtail



    Note: If you need customization solution either LC,ST,FC With different size just message us. Support wholesale, if you have larger order,we can offer you factory price, contact us.

    ​

    • These Single mode 12 fiber pigtails with 900 micron buffer are ready for splicing.

    • Each fiber strand in the kit has a color-coded buffer for easy identification and the colors are industry standard.

    • In this 12-pack, twelve strands of fiber are terminated on one end with FC connectors.

    • Connectors are ceramic with physical contact (APC) finish. Each cable comes with test results and a lifetime guarantee.









    Specifications:



    Parameter:

    Single mode

    Multi mode(optional)

    Insertion Loss

    ≤0.3dB

    ≤0.20dB

    Return Loss

    ≥45 dB (PC)

    ≥50 dB (UPC)

    ≥60 dB (APC)

    ≥35 dB (PC)

    ≥45 dB (UPC)

    Wavelength

    1310nm,1550nm

    850nm,1310nm

    Repeatability

    ≤0.1

    Durability

    ≤0.2 dB typical change, 1000 matings

    Interchangeability

    ≤0.2dB

    Cord diameter

    3.0mm

    Connector Available

    SC,FC,ST,LC,MU,MTRJ

    Fiber core available

    4,6,8,12,24 fiber…







    Features:

    • Low Insertion Loss
    • Good reliability and stability
    • Polishing type: PC, UPC, and APC
    • Various interfaces: FC, SC, ST, LC…
    • Core of cable: 4, 6, 8, 12, 24…



    Application:

    • Telecommunication Network
    • Testing Equipment
    • Local Ares Network
    • CATV
