Overview:

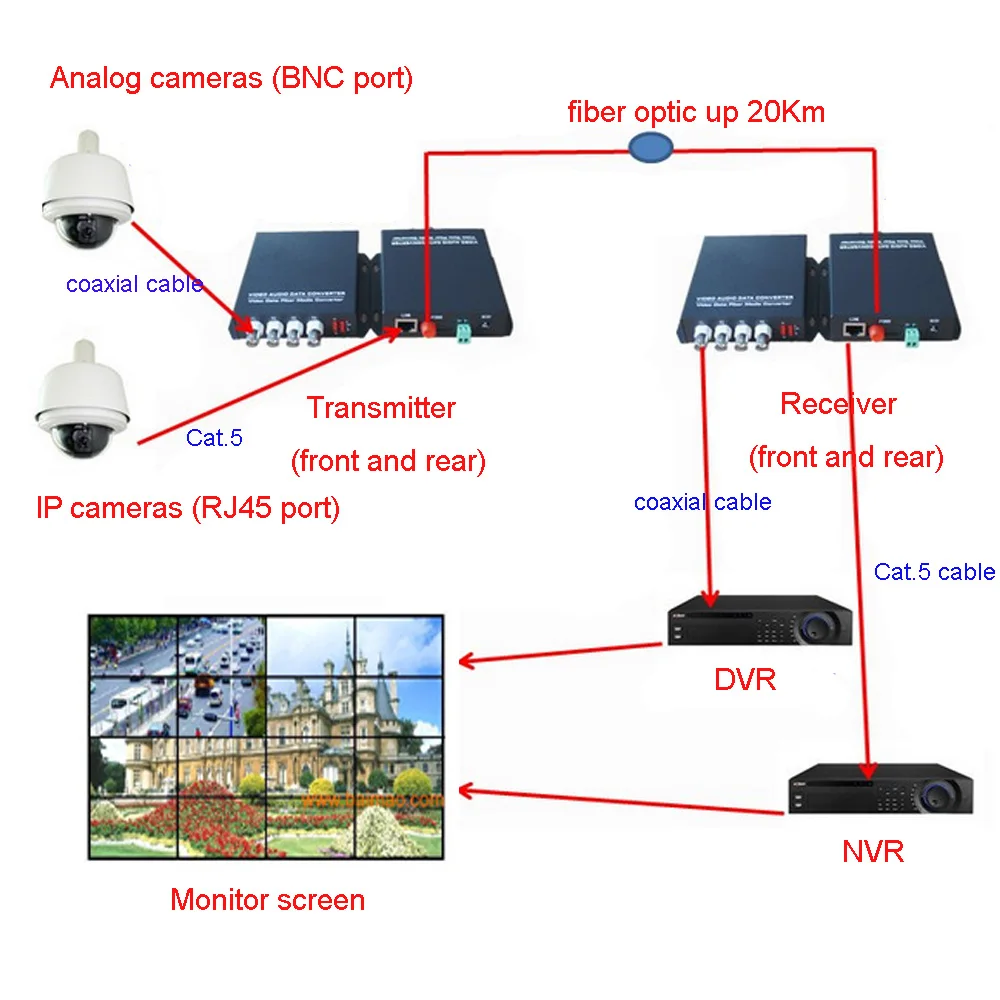

This model is Multifunctional digital Video/ Data/Ethernet Optical media converter, with 8 channel Video (for analog cameras) +1x 10/100Mbps Ethernet port (available for Ethernet networking, also available for 1x IP cameras)+ RS485 data (reverse direction), specification as below.

For the environment:

• Security Systems
• Radio and television transmission
• Video monitoring
• Building control systems
• Train/High speed road monitoring
• Intelligent Traffic Monitoring System (ITS)
• Remote multimedia teaching / campus monitoring
• Long-distance radio and television transmission system

Video:

• Video: 8 channel
• Video connector: BNC
• Input / output impedance: 75 Ω (unbalanced)
• Input / output voltage: typical 1Vpp (peak-to-peak), maximum 1.2Vpp
• Bandwidth: 8MHz
• Sampling: 15MHz high speed sampling
• Digital Bit Width: 8/10/12 bits (bits)
• Differential gain: (10% -90% APL) DG <1% (typical)
• Differential phase: (10% -90% APL) DP <0.8 ° (typical)
• Field tilt: <0.5%
• Video signal to noise ratio (weighted): S / N ≥ 70dB (maximum optical link loss)

Data :

• Data: RS485, reverse direction. (RS422/232 available)
• Connector: Terminals block (2 wires)
• Data rate DC-250Kbps
• Data error rate is less than 10E-12
• Maximum number of nodes 128
• Maximum distance of 1200 meters.
• It can support multiple data, compatible with all control keyboard, matrix protocol, hard disk video PTZ, alarm composite data, industrial application transmission.
• Control equipment: PTZ decoder, control keyboard, matrix control data interface, high speed dome, industrial equipment

 Ethernet:

• Interface rate: 10 /100Mbit/s adaptive, the default is 100Mbps working state
• Interface type: UPC Cat5 cable RJ-45
• Support Protocol: IEEE 802.3U 100Base-TX, 10 / 100M Ethernet standard
• Work mode: full duplex or half duplex

Optical index:

• Optical Interface : FC
• Wavelength : Single-mode 1310/1550μm (9/125μm)
• Transmission distance : single-mode fiber:0-20KM

Power input:

• AC100~240V, DC5V / 2A

Package:

• 1x 8CH Video Transmitter
• 1x 8CH Video Receiver
• 2x Power adapter(default US, EU/AU/UK Available)
• 1x User manual
