Fiber Power Meter

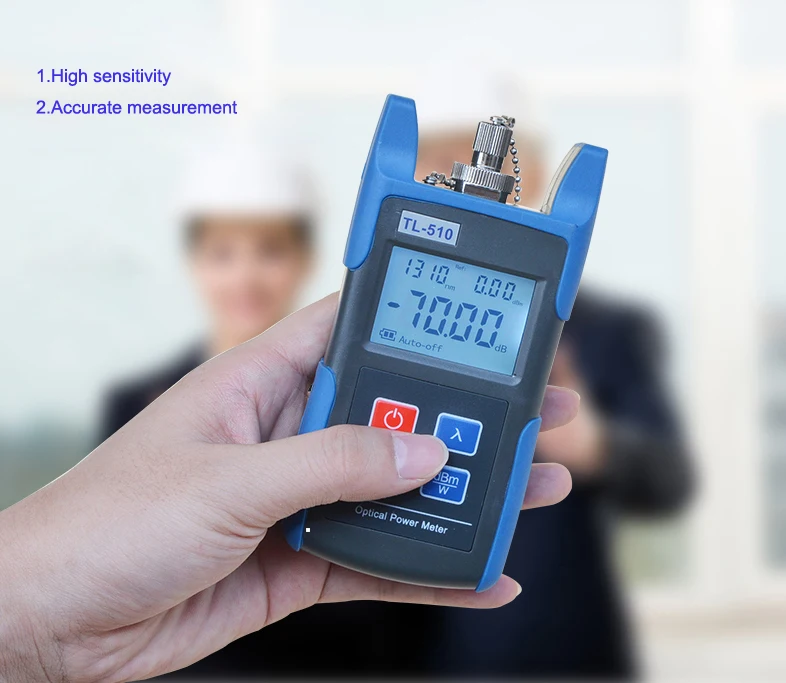

Fiber Optic Power Meter
PMD-TL-510
Fiber Optic Power Meter Tool Tester SC and FC Adapters -70~+10dbm
-70~+10dbm Fiber Optic Power Meter -SC/FC Adapters
Features
- Self calibration
- Apply replaceable or rechargeable batteries
- More than 40 hours continuous working time
- Linear Display (mW) and Logarithmic display (dBm) show on the same screen
- Support FC/SC interface and quick switch
- Auto switch
- Backlight available
Specifictions
1. Test Range: -70~+10dbm
2. Probe Type: InGaAs
3. Wavelength Range: 800~1700nm

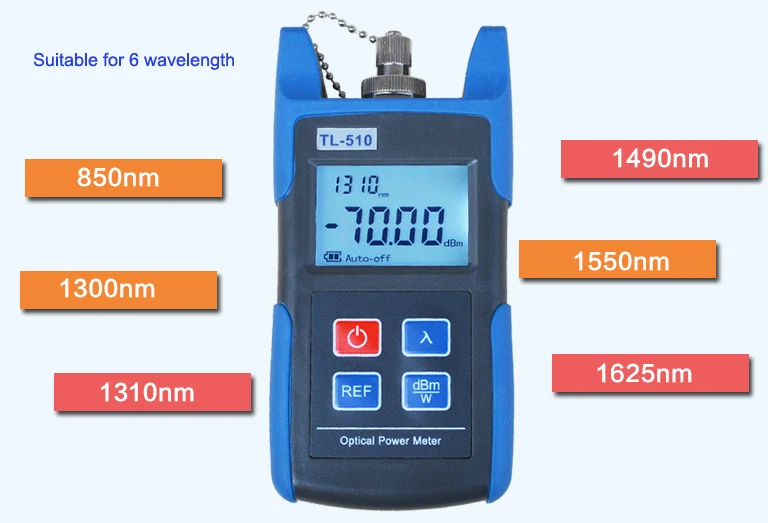

4. Support Wavelength(nm): 850/1300/1310/1490/1550/1625
5. Display Resolution: Linear Display 0.1%; Logarithmic display 0.01dBm
6. Working Temp(℃): -10~+60℃
7. Storage Temp(℃): -25~+70℃
8. Auto Switch-off Time(min): 10min
9. Battery working period: no less than 40hrs
10. Size(mm): 130x63x29
11. Weight:160g
12. Power: 2x AA rechargeable lithium battery or Alkaline batteries (NOT included)
Package include
-1x Optical power meter
-1x FC adaptor (installed on the host)
-1x SC adaptor
-1x Carrying pouch
-1x Manual
