Overview:

This product is our newly developed HD SDI Optical, the product uses the most advanced all-digital video and optical fiber transmission technology, digital signal HD-SDI, HD signal formats from 19.4Mbps to 1.485Gbps, the system supports SMPTE292, SMPTE259M, signal SMPTE297M, SMPTE305M, SMPTE344M  ITU serial digital video formats,

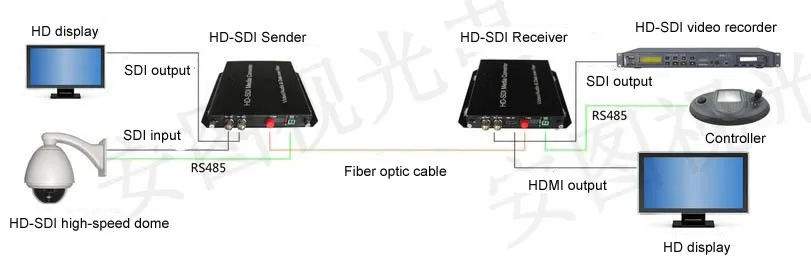

Two HD-SDI signal output and one HDMI output, greatly saving external conversion equipment, to meet the requirements of industrial products.

Features:

1. 100% Brand-Ne
2. Support SD SD-SDI (270Mbps) and high-definition HD-SDI (1.485Gbps) ;
3. Built-in 3G-SDI line equalizer, Reclocker and cable flooding Actuators, perfect signal recovery and jitter suppression;
4. The broadcast signal quality, fully compliant SMPT standard;
5. The maximum cable length Belden 1694A: SD 400m; HD 200M; 3G 140M;
6. Single-mode single fiber, transmission distance support 0-20Km
7. Singlemode 1310nm/1550nm
8. Support HDMI output interface for the user to save the cost of the converter.
9. Voltage:AC100~240V,DC5V/2A

Package Include:

• 1 x Transmitter
• 1 x Receiver
• 1 x Mannual
• 2 x Power supply (default US, AU/UK/EU plug avialable)
