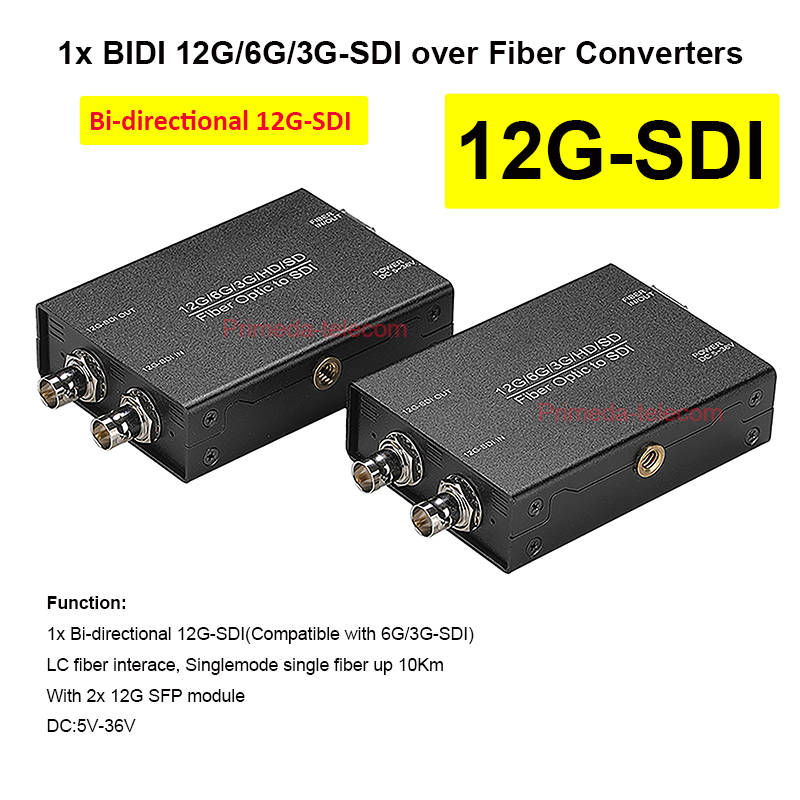

High Quality Professional Bi-directional 12G/6G/3G/HD-SDI Video over Fiber Converter, 1 Set

Function:
1x Bidirectional 12G-SDI(Compatible with 6G/3G-SDI)
LC, Singlemode single fiber up 10Km
DC:5V-36V
with 2x12G SFP module


Description:

This item can extend 1 channel of bidirectional uncompressed 12G/6G/3G/HD-SDI video over fiber optic cable. 1x12G-SDI is transmitted from T (TX) in the direction of R (RX), other 1x12G-SDI signal is transmitted in reverse direction. Single-Mode single Fiber or dual fiber transmission distances up to 10Km(6.2miles).

The 12G-SDI ultra high definition audio and video optical transceiver is equipped with serial clock recovery, signal equalization, and line drive. The input automatically detects signals 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SDI/SDI/ASI, which complies with the SMPTEST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD-SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, and SMPTE310M standards;

The 12G-SDI ultra high definition audio and video optical transceiver supports plug-in SFP optical modules, which can be replaced according to on-site needs. The equipment has a power consumption of less than 1.5W and uses a wide voltage range of 5-36V DC power supply. This design improves the flexibility and stability of on-site power supply;

According to the actual usage needs of most users in the market, this device is designed as a desktop with a 1/4 hot shoe mouth . It can provide power to the optical transceiver through a V-port mobile power supply, making it convenient for outdoor use or operation in environments with inconvenient power access;

The internal circuit of the device adopts fully digital circuits, which ensure reliable and stable operation, low power consumption, high integration, small size, and easy installation and maintenance.

Feature:

This item can extend 1 channel bidirectional uncompressed 12G/6G/3G/HD-SDI video over fiber optic cable. 1x12G-SDI is transmitted from T (TX) in the direction of R (RX), other 1x12G-SDI signal is transmitted in reverse direction. Single-Mode single Fiber or dual fiber transmission distances up to 10Km(6.2miles).

Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and ST-259 (SD); Compatible with DVB-ASI and AES10 (MADI);

High grade and professional design, Both transmitter and receiver have clock recovery functions, (Clock restorer can reduce high-frequency jitter and completely regenerate data using a pure low jitter clock). we used expensive materials to make our product quality is more professional and reliable.

The clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or 1.001 sub rates and 270Mbps SMPTE rates;

The signal input has automatic cable balancing (EQ) function, and the output has driving (CD) function;

Support plug-in SFP optical modules, which can be replaced with corresponding optical modules at different distances or interfaces according to actual on-site needs;

Support single mode single fiber/dual fiber transmission distance of 10KM (default).

Real-Time Video Transmission for Exceptional Quality and Resolution.

Supports wide voltage supply of 5-36V, with a lock on the power socket to prevent detachment during operation;

No need to set up, plug and play.

Supports standard (digital video format) :

SMPIE 259M SD-SDI 480i, 576i

SMPIE 344M ED-SDI 480P, 576P

SMPIE 292M HD-SDI 720P, 1080i

SMPIE 424M 3G-SDI 1080P60Hz

SMPIE ST-2081 6G-SDI 2160P30Hz

SMPIE ST-2082 12G-SDI 2160P60Hz

Application:

SMPTE compatible serial digital interface

UHDTV/4K/HDTV/SDTV Video

IP media gateway

Digital video processing and editing

Optical Interface: LC

Wavelength :

Single fiber 1270nm/1330nm

Dual fiber 1310nm.

Electrical & Mechanical :

1. Power supply: AC100-240V,DC5-DV36V (US/EU/UK/AU standard is optional)

2. Product weight: about 0.5Kg/Set.

3. Product size: 275*220*55mm (LxWxH)

Environmental

1. Operating temperature: -20°C ~ +70°C

2. Storage temperature: -40°C ~ +85°C

3. Working humidity: 0% ~ 95% (non-condensing)

4. MTBF:>100,000 hours

Package Include:

1 x BIDI 1x12G-SDI Transmitter

1 x BIDI 1x 12G-SDI Receiver

2x SFP optical module

1 x 3M LC-LC S/M fiber patch cord

2x External power adapter

1x User Manual
