FPV Optical Module

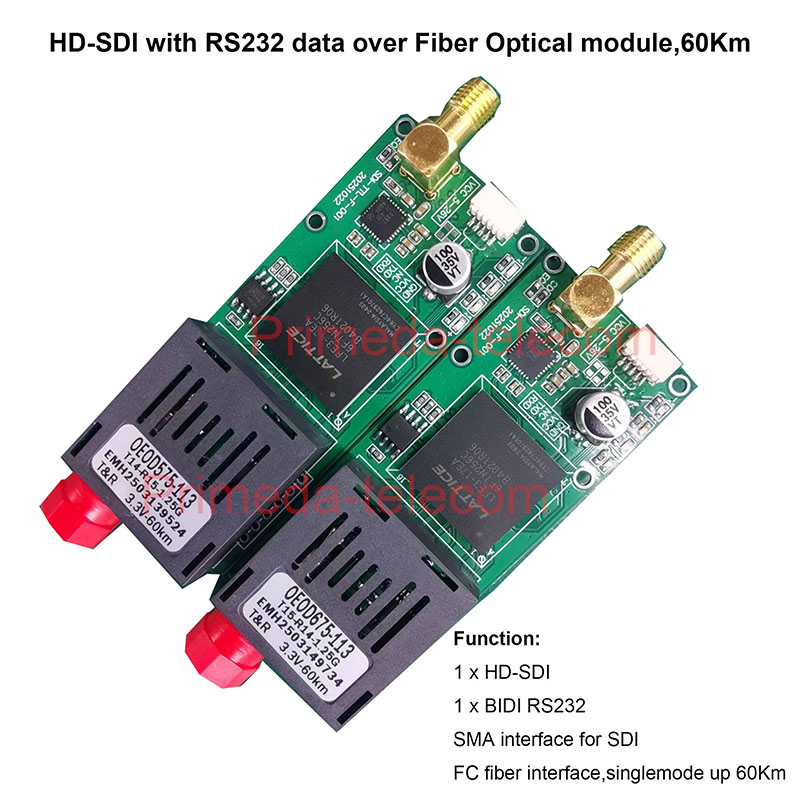

1 channel HD-SDI Video with 1 RS232 data over Fiber Optical Transceiver Sky end and Ground end inclu
PMD-1SDI-1xRS232-FC-60Km
Product Function:
1 x HD-SDI
1 x BIDI RS232
SMA interface for SDI
FC fiber interface,singlemode up 60Km
1 x HD-SDI
1 x BIDI RS232
SMA interface for SDI
FC fiber interface,singlemode up 60Km
Product Description:
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 1 HD-SDI video and 1 RS-232 data over an optical fiber cable for long distance transmission. High speed and stable transmission, No interference.
Support OEM,ODM, Long distance transmission 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.
Widely used in various scenarios that require long-distance, High-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
It is safe and reliable, stable in performance, light in weight and cost-effective. It can be customized according to buyer's special requirements. Contact us if needed.
Video formats can be received:
1080P @ 30fps
720P @ 50fps
Interface:
VCC：5.5V~26V
GND：ground
TXD.RⅩD：RS232 data
Feature:
1. This video over fiber system is used to send one hd-sdi Video signals to remote display devices, Using a single FC/FC Fiber Optic cable.
2. Long Transmission distance, singlemode fiber 0~60Km (20km/40km/60km/80km is optional)
3. Video format: HD-SDI (Video formats can be received:1080P @ 30fps, 720P @ 50fps)
4. Mean Time between failures, More than 100,000 hours
5. Plug and play, no need to set up.
Application environment
1.Broadcasting and television
2.Surveillance system
3.Distance education,support remote interactive teaching and real-time video communication
4.Industrial control and More
Optical index:
Optical Interface : FC
Optical wavelength 1310nm /1550nm
Fiber optic: Single-mode (9/125μm)
Applicable fiber optic: singlemode
Transmission distance: single-mode fiber 20Km/40km/60km/80km is optional
SDI Video:
Physical Interface: SMA
Resolution: up to 1920 x 1080 @ 60Hz (Not support 3G-SDI, 1080p@60Hz)
Video format: HD-SDI (Video formats can be received:1080P @ 30fps, 720P @ 50fps)
Video Bits Rate: Max 1.5Gb/s
Video SDI standard: SMPTE 292M, SMPTE 259M, DVB-ASI
Data:
Data type: 1 RS232 full duplex
Interface:
Packing include:

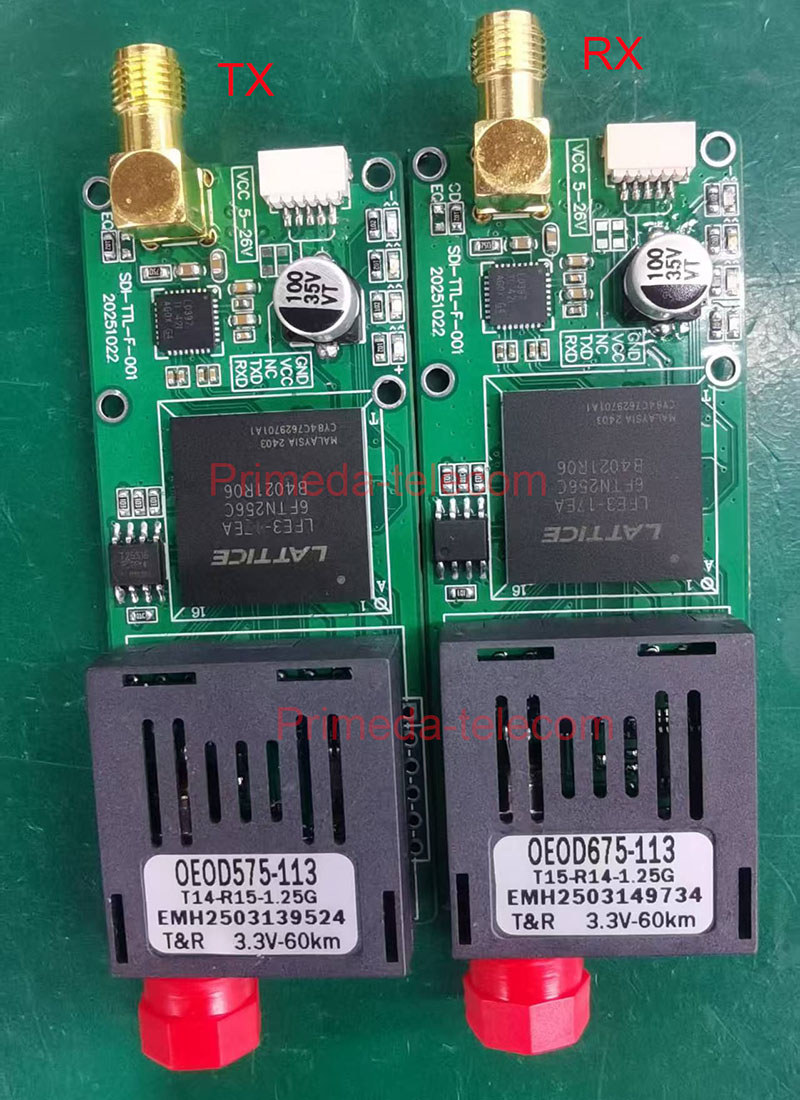

1x TX (Sky end)
1x RX (Ground end)
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 1 HD-SDI video and 1 RS-232 data over an optical fiber cable for long distance transmission. High speed and stable transmission, No interference.
Support OEM,ODM, Long distance transmission 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.
Widely used in various scenarios that require long-distance, High-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
It is safe and reliable, stable in performance, light in weight and cost-effective. It can be customized according to buyer's special requirements. Contact us if needed.
Video formats can be received:
1080P @ 30fps
720P @ 50fps
Interface:
VCC：5.5V~26V
GND：ground
TXD.RⅩD：RS232 data
Feature:
1. This video over fiber system is used to send one hd-sdi Video signals to remote display devices, Using a single FC/FC Fiber Optic cable.
2. Long Transmission distance, singlemode fiber 0~60Km (20km/40km/60km/80km is optional)
3. Video format: HD-SDI (Video formats can be received:1080P @ 30fps, 720P @ 50fps)
4. Mean Time between failures, More than 100,000 hours
5. Plug and play, no need to set up.
Application environment
1.Broadcasting and television
2.Surveillance system
3.Distance education,support remote interactive teaching and real-time video communication
4.Industrial control and More
Optical index:
Optical Interface : FC
Optical wavelength 1310nm /1550nm
Fiber optic: Single-mode (9/125μm)
Applicable fiber optic: singlemode
Transmission distance: single-mode fiber 20Km/40km/60km/80km is optional
SDI Video:
Physical Interface: SMA
Resolution: up to 1920 x 1080 @ 60Hz (Not support 3G-SDI, 1080p@60Hz)
Video format: HD-SDI (Video formats can be received:1080P @ 30fps, 720P @ 50fps)
Video Bits Rate: Max 1.5Gb/s
Video SDI standard: SMPTE 292M, SMPTE 259M, DVB-ASI
Data:
Data type: 1 RS232 full duplex
Interface:
Packing include:
1x TX (Sky end)
1x RX (Ground end)
